VB300 series by MATICA
VB300 series by MATICA
Defend Your System. Disrupt the Vacuum
Essential for modern steam system integrity, the MATICA VB300 Vacuum Breaker acts as a first line of defense against vacuum-induced collapse and damage. Its simple yet highly effective design—a spring-assisted ball check valve in a durable stainless steel housing—guarantees immediate atmospheric air intake when pressure drops below safe limits. Suitable for demanding environments up to 2.5 MPa and 425°C, this device is a critical component for safeguarding valuable assets across utilities and diverse industries, ensuring longevity and preventing costly downtime.
Applications
District heating plants, industrial boiler rooms, steam distribution networks, process heating equipment, autoclaves, sterilizers, textile manufacturing, paper mills, pharmaceutical facilities.
Characteristics VB300 series
MATICA VB300 Vacuum Breakers: Official Industrial Valve Solutions in Turkey by LINDER
As the official and exclusive supplier of MATICA premium industrial valves across Turkey, LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ provides robust engineering solutions for the region's most demanding sectors. Specializing in direct, certified supply chains, we deliver cutting-edge pipe fittings, steam system components, and flow control technology to enhance operational safety and efficiency in chemical, metallurgical, oil & gas, and energy industries.
OFFICIAL MATICA SUPPLIER FOR TURKEY
Our partnership with MATICA—a globally recognized manufacturer with over 15 years of expertise and five production facilities across three countries—ensures that Turkish industries receive genuine, high-performance equipment designed for extreme conditions. With an inventory of over 120 valve types, LINDER is your dedicated source for pressure reducing valves, steam traps, ball valves, and specialized vacuum breakers, all backed by certified quality and patented engineering.
VB300 Series by MATICA: Defend Your System. Disrupt the Vacuum.
Essential for modern steam system integrity, the MATICA VB300 Vacuum Breaker acts as a first line of defense against vacuum-induced collapse and catastrophic damage. This critical safety device incorporates a simple yet highly effective spring-assisted ball check valve within a durable stainless steel housing, guaranteeing immediate atmospheric air intake when pressure drops below safe thresholds.
Engineered for demanding environments withstanding up to 2.5 MPa and 425°C, the VB300 is an indispensable asset for protecting valuable infrastructure across utilities, manufacturing, and processing plants. Its reliable operation prevents costly downtime and extends the lifespan of steam traps, heat exchangers, condensers, and piping networks.
Technical Excellence & Operational Benefits
Engineered for Maximum Reliability
The MATICA VB300 vacuum breaker utilizes a precision-engineered spring mechanism and a hardened stainless steel ball (AISI 440C) seated within a corrosion-resistant AISI 304 or AISI 316 body. This construction ensures instantaneous response to pressure differentials, automatically equalizing system pressure to prevent vacuum formation.
Key Industrial Applications
- District Heating Plants & Central Utilities
- Industrial Boiler Rooms & Steam Generation
- Chemical & Petrochemical Processing Lines
- Pharmaceutical Sterilizers & Autoclaves
- Textile Manufacturing & Dyeing Systems
- Paper & Pulp Mill Steam Networks
- Food & Beverage Production Equipment
- Shipbuilding & Marine Engineering
- Power Generation & Cogeneration Plants
- HVAC Systems for Large Facilities
VB300 Series Technical Specifications
Design & Type
Vacuum Breaker / Atmospheric Air Intake Valve
Nominal Size (DN)
15 mm
Pressure Rating (PN)
25 bar | 2.5 MPa
Max Operating Temperature
425 °C
Discharge Capacity
≤ 250 kg/h
Connection Type
Threaded (BSP/NPT)
Body Material
AISI 304 or AISI 316 Stainless Steel
Installation Position

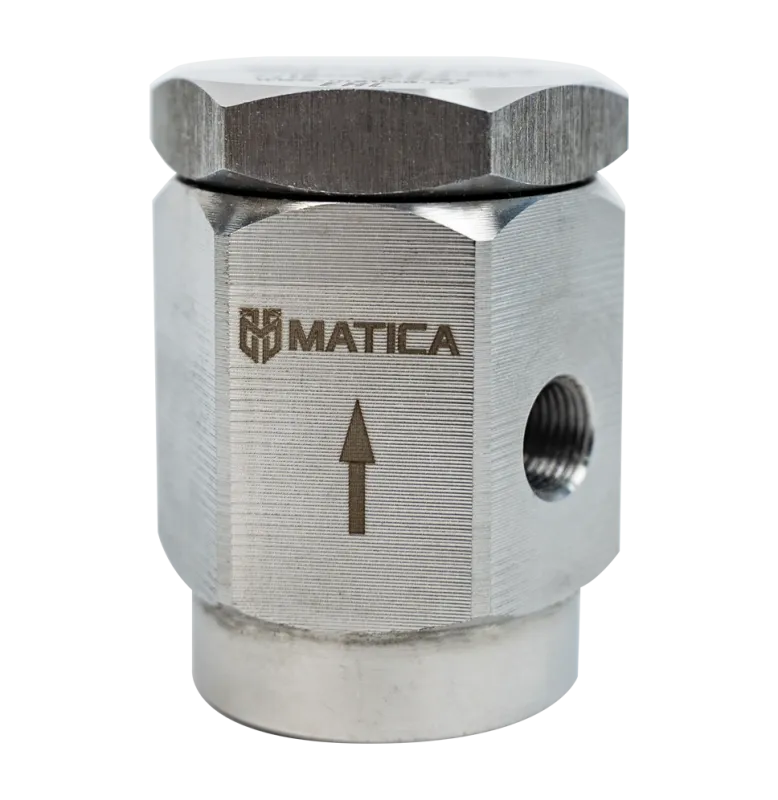

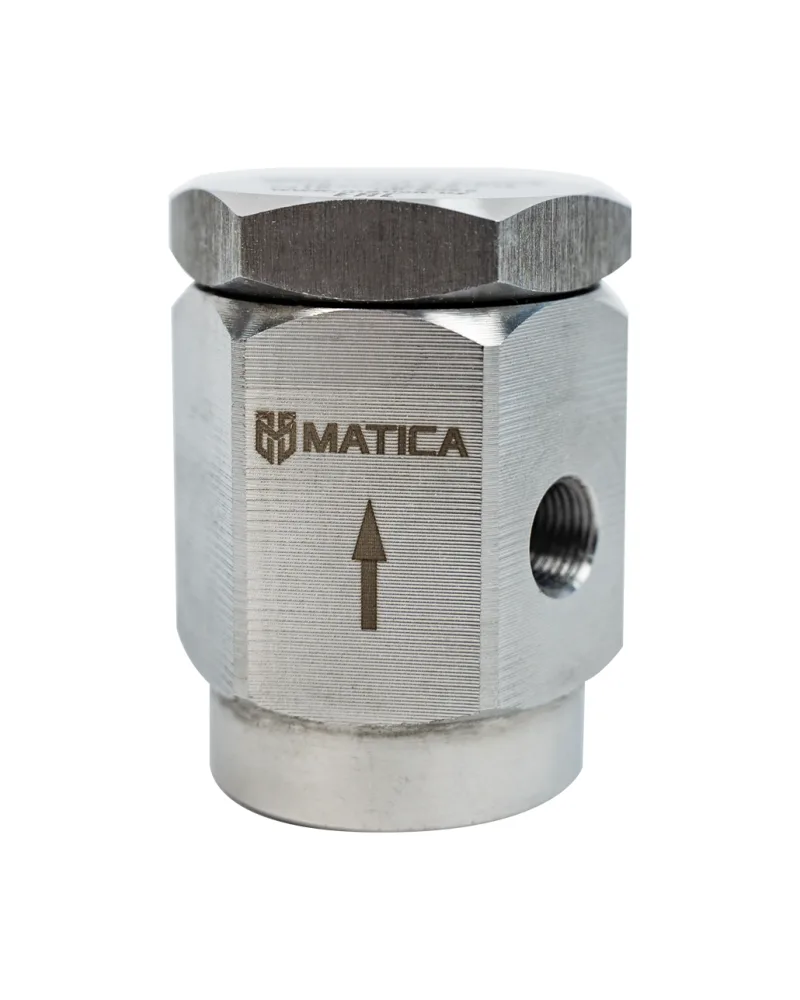

Vertical Only (Flow direction marked by arrow)
Why Choose MATICA Valves via LINDER in Turkey?
Guaranteed Authenticity & Direct Supply
LINDER eliminates intermediaries, providing officially certified MATICA products with full warranty support and traceable documentation. Our direct partnership ensures access to the latest product updates and technical innovations.
Local Expertise with Global Standards
Our engineering team in Turkey offers localized support—from system analysis and valve selection to installation guidance—combining MATICA's international quality with understanding of regional industrial requirements.
Comprehensive Technical Support
We provide more than products: our service includes system diagnostics, compatibility checks, maintenance planning, and emergency technical assistance for steam and process systems.
Customized Industrial Solutions
Beyond standard catalog items, we facilitate access to MATICA's engineering department for custom-configured valves and special material adaptations suited to unique process challenges in Turkish industries.
