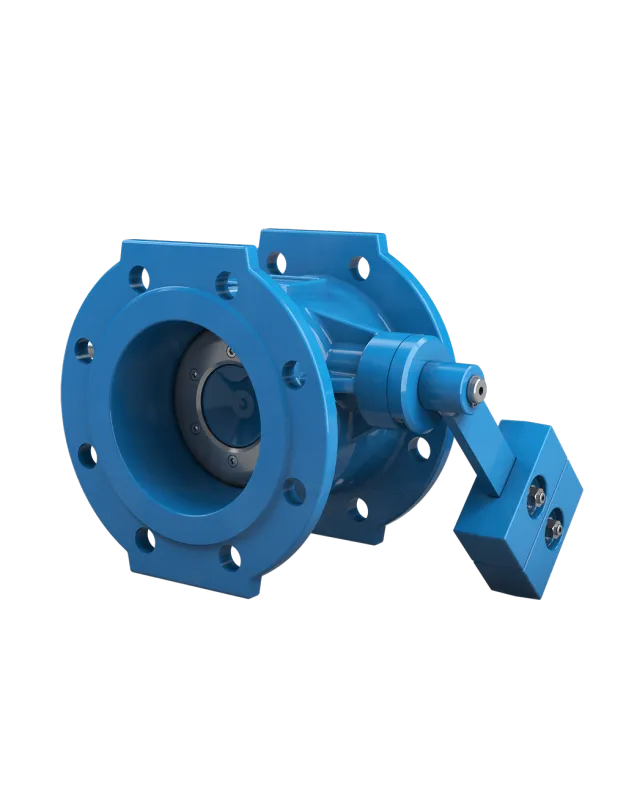

Swiss Engineered TK01 Eccentric Disc Check Valve | Official WEY SISTAG Dealer in Turkey | LINDER
When the uncompromising integrity of your piping system and maximum operational efficiency are paramount, your choice of check valve becomes a critical business decision. LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ, as the official and exclusive dealer in Turkey for the world-renowned Swiss manufacturer WEY SISTAG, provides the definitive solution: the engineering masterpiece that is the TK01 Eccentric Disc Check Valve.
This valve transcends conventional flow control components. It embodies the pinnacle of Swiss precision engineering, decades of validated performance in the world's most demanding installations, and a revolutionary design that systematically eliminates the shortcomings of traditional swing, wafer, and ball check valves. For chief engineers, project managers, and procurement specialists across Turkey's key sectors—Power Generation, Water & Wastewater Treatment, Chemical Processing, Petrochemical, Oil & Gas, Mining, and Pulp & Paper—the TK01 is the strategic asset for preventing backflow with unmatched reliability and minimal total cost of ownership.
Unmatched Engineering: The Core Principles of the TK01 Design

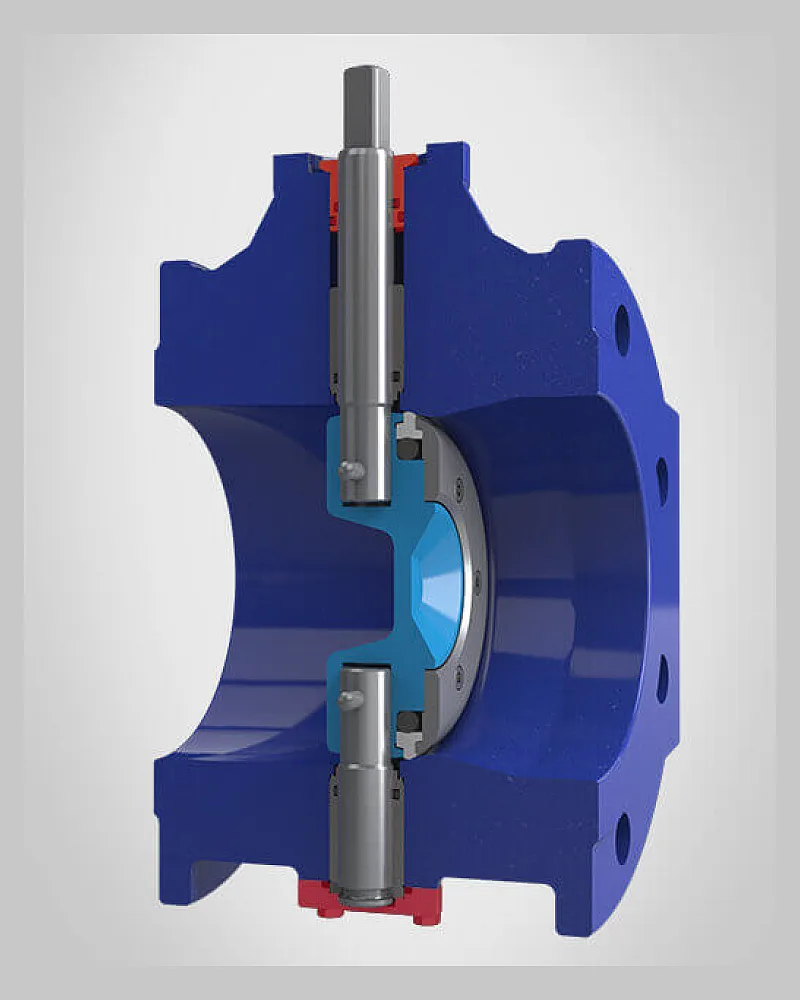

The WEY SISTAG TK01 is an eccentric, non-return check valve manufactured to the highest international standards, including DIN and ISO 5752 series 14 for face-to-face dimensions. Its groundbreaking innovation is the eccentrically mounted valve disc, a paradigm shift from conventional designs.
Mechanical Superiority for Unrivalled Performance
The disc's calculated eccentric pivot point creates a perfectly optimized kinematic chain. This results in three fundamental performance advantages that directly impact your bottom line:
- Exceptionally Low Pressure Drop (Δp): The valve initiates opening with minimal differential pressure, drastically reducing the pumping energy required. This translates to sustained, significant savings on operational energy costs throughout the valve's decades-long service life.
- Elimination of Stiction & Guaranteed Free Movement: Decades of refinement have eradicated the static friction common in other valves. The TK01 ensures instantaneous, smooth, and reliable response to forward flow, even after prolonged periods of inactivity, preventing system hammer and failure points.
- Precision-Engineered Seal Longevity: Contact pressure within the seal seat is meticulously calibrated. It delivers absolute, drop-tight shut-off without generating excessive compressive wear, exponentially extending seal life and minimizing maintenance intervals.
Technical Deep Dive: Key Features & Construction
Robust Construction for Critical Applications
Engineered for endurance, the TK01 features a double flange body forged from high-grade ductile iron (EN-GJS-400-15), offering superior strength and shock resistance. It is available in nominal sizes from DN 150 to DN 400 and pressure classes PN10/PN16 (up to 16 bar), serving as a versatile, heavy-duty solution for main line isolation and protection.

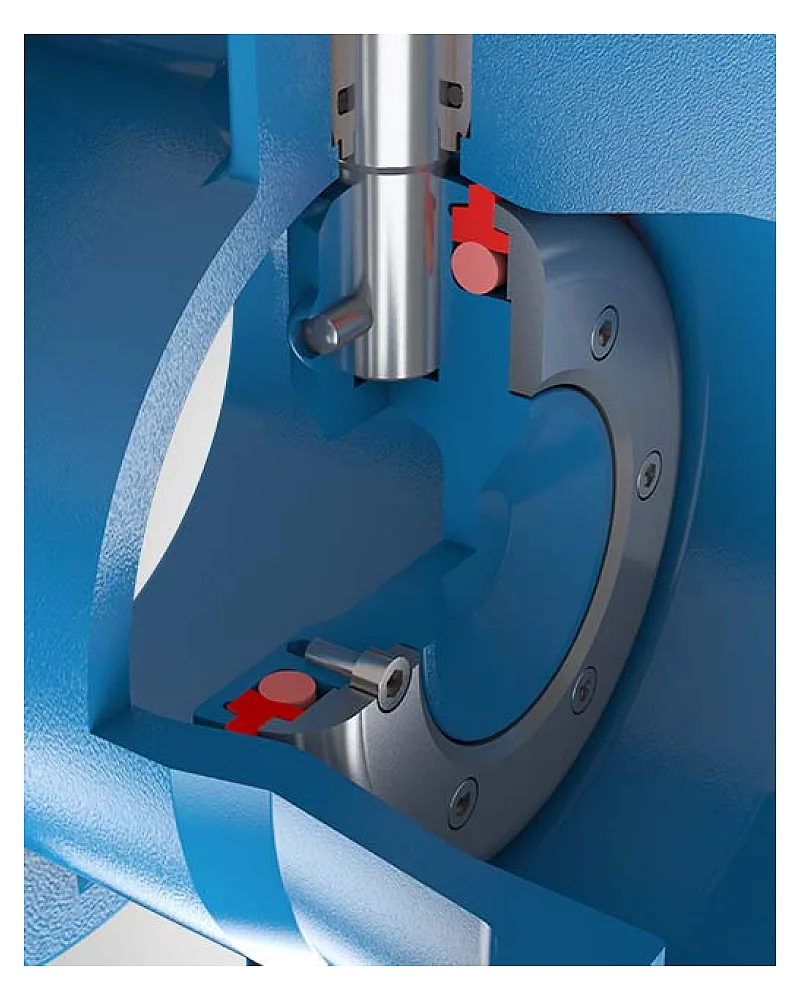

Patented Self-Pressing Seal Technology: A WEY SISTAG Exclusive
This proprietary technology defines reliability. The patented self-pressing process for the seat seal ensures the initial sealing force is perfectly optimized for a bubble-tight seal—eliminating both under-compression (leaks) and over-compression (premature wear). This guarantees consistent, fail-safe performance across millions of cycles.

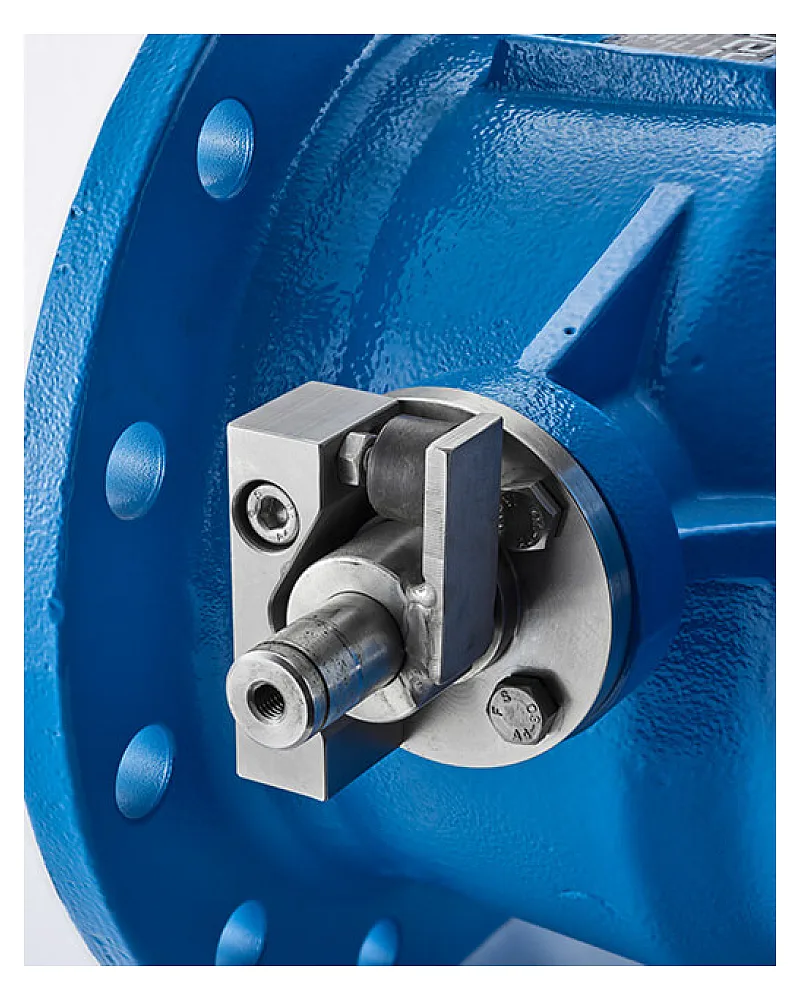

Advanced, Service-Friendly Mechanical Stop System
The valve incorporates a mechanically adjustable stop with intelligent rubber suspension. This system acts during pressure equalization, proactively and gently releasing the disc from its seat. This action is fundamental to achieving the ultra-low opening pressure and virtually eliminates seal abrasion during the opening sequence.
Maintenance Without System Downtime
In critical processes, downtime is unacceptable. The TK01 is designed for in-line serviceability. The secondary shaft seals on both sides can be replaced quickly and safely without removing the valve from the pipeline, preventing costly production stoppages and saving substantial maintenance resources.
Material Excellence & Corrosion Defense
The TK01 is built to conquer harsh environments. The valve disc is constructed from robust ductile iron (EN-GJS-400-15), and the shaft is precision-machined from corrosion-resistant stainless steel (1.4104). The standard high-performance EPDM seal caters to a broad temperature and media range, with alternative materials (NBR, FKM, etc.) available for specific aggressive chemistries.
A comprehensive corrosion protection strategy is employed: critical components like the body and disc are shielded with a specialized, robust EKB coating, and all bolts are manufactured from stainless steel (1.4404). This multi-layered defense guarantees decades of flawless operation even in coastal or chemically aggressive atmospheres.
Why LINDER is Your Strategic Partner for WEY SISTAG in Turkey
Selecting LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ as your source for WEY SISTAG valves means engaging with a partner committed to your operational excellence.
- Official Authorization & Guarantee: As the official Turkish dealer, we supply only 100% genuine WEY SISTAG products, complete with full manufacturer warranties, certification, and traceability.
- Local Engineering Expertise: Our Ankara-based team of seasoned engineers provides in-depth technical support, application analysis, and selection guidance, bridging the gap between Swiss quality and your local project requirements.
- End-to-End Project Support: We offer a seamless, integrated service portfolio—from initial sizing calculations and CAD support to just-in-time logistics, installation supervision, and lifetime after-sales service.
- Proven Industry Leadership: We are the trusted valve solutions partner for Turkey's leading enterprises in energy, infrastructure, and industrial processing.
Stop Compromising on Critical System Components
Elevate your project's safety, efficiency, and longevity with the Swiss-engineered WEY SISTAG TK01 Eccentric Disc Check Valve. Experience the definitive solution in flow control technology.
