MATICA ST900 Series Steam Traps: Official Supply in Turkey by LİNDER
For industrial facilities across Turkey seeking to optimize their steam systems, the choice of condensate management equipment is critical for operational efficiency and cost reduction. LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ, as the official dealer and technical partner of MATICA on Turkish territory, provides cutting-edge solutions designed for performance and longevity. The MATICA ST900 series represents the pinnacle of thermostatic steam trap technology, engineered for intelligent operation and maximum energy savings.
Official Partnership: Premium Valve Solutions for Turkish Industry
As the authorized representative of MATICA in Turkey, LİNDER ENDÜSTRİ provides more than just product supply. We deliver comprehensive engineering support, from system analysis and correct product selection to installation supervision and after-sales service. Our partnership ensures that Turkish industrial enterprises in sectors such as chemical, petrochemical, energy, food, and textiles have direct access to MATICA's certified quality and innovative patented designs, backed by our local expertise and logistical capabilities.

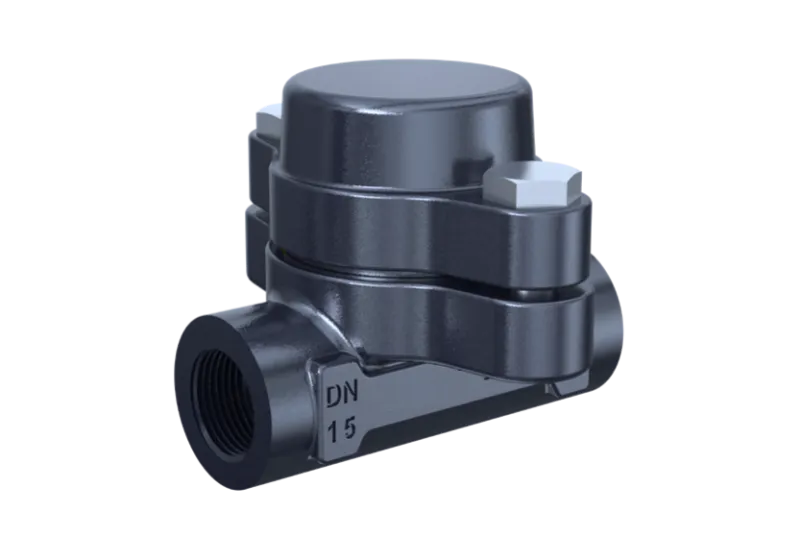

ST900 Series by MATICA: Smarter Steam. Maximum Economy.
LİNDER supplies the MATICA ST900, a high-precision thermostatic capsule steam trap engineered for superior condensate management. By intelligently exploiting the fundamental temperature differential between live steam and condensate, its internal capsule mechanism ensures precise and timely discharge. This smart operation prevents live steam loss, maximizes thermal efficiency, protects downstream equipment from water hammer, and significantly reduces overall energy consumption. Choosing the ST900 is choosing a smart, economical, and reliable guardian for your steam lines.
Primary Applications
The MATICA ST900 series is ideally suited for a wide range of industrial heating and process equipment where efficient condensate removal is paramount. Key applications include:
- Shell and tube heat exchangers
- Reactor kettles and jacketed vessels
- Vulcanizing pans and autoclaves
- Roller dryers and cylinder dryers
- Steam tracing lines
- Unit heaters and air heaters
Technical Characteristics & Specifications
Design Type
Thermostatic Steam Trap (Bimetallic Capsule)
Nominal Sizes (DN)
15, 20, 25 mm
Pressure Rating
PN16, PN40 bar / Class 150, Class 300
Maximum Differential Pressure (ΔPMX)
21 bar
Maximum Operating Temperature (TMO)
270 °C
Maximum Discharge Capacity
Up to 520 kg/h
Connection Types
Threaded (NPT, BSP), Flanged (RF)
Body Material
Forged Steel, Stainless Steel (AISI 304, AISI 316)
Engineering Excellence & Design Details

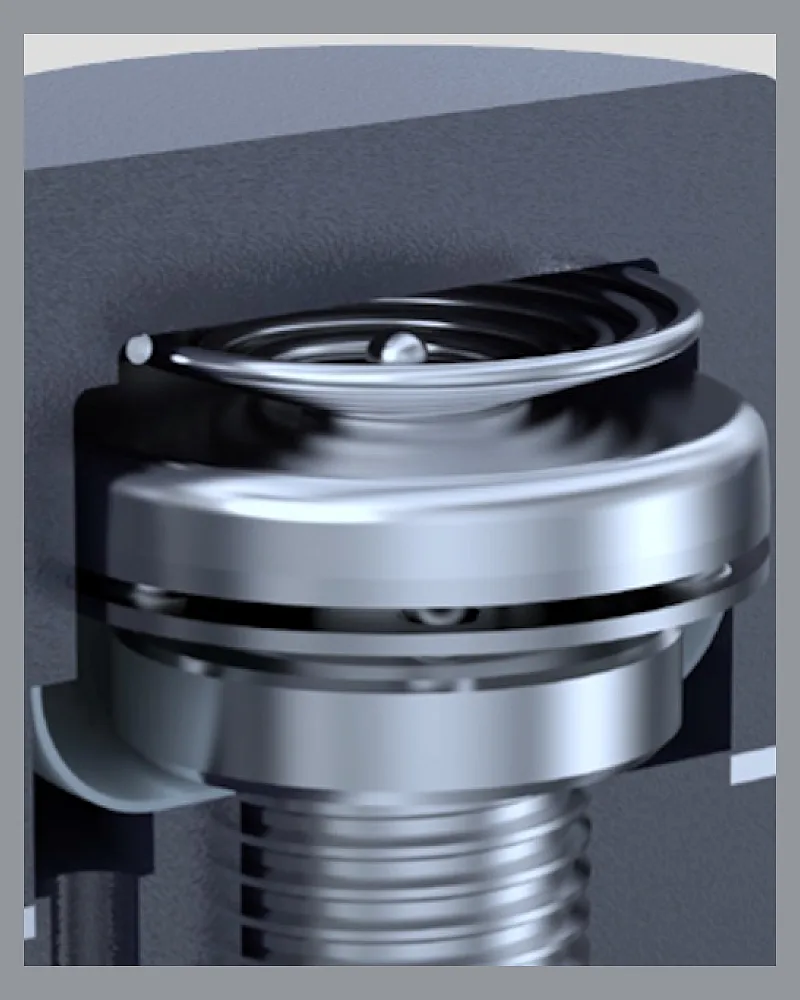

High-Strength Diaphragm Cartridge Assembly
The core of the ST900 trap features a diaphragm made from high-grade Hastelloy C276 alloy. This critical component is assembled using advanced vacuum-welding techniques within the pressure capsule, ensuring exceptional fatigue resistance, zero leakage, and reliable operation over millions of cycles under fluctuating pressures and temperatures.

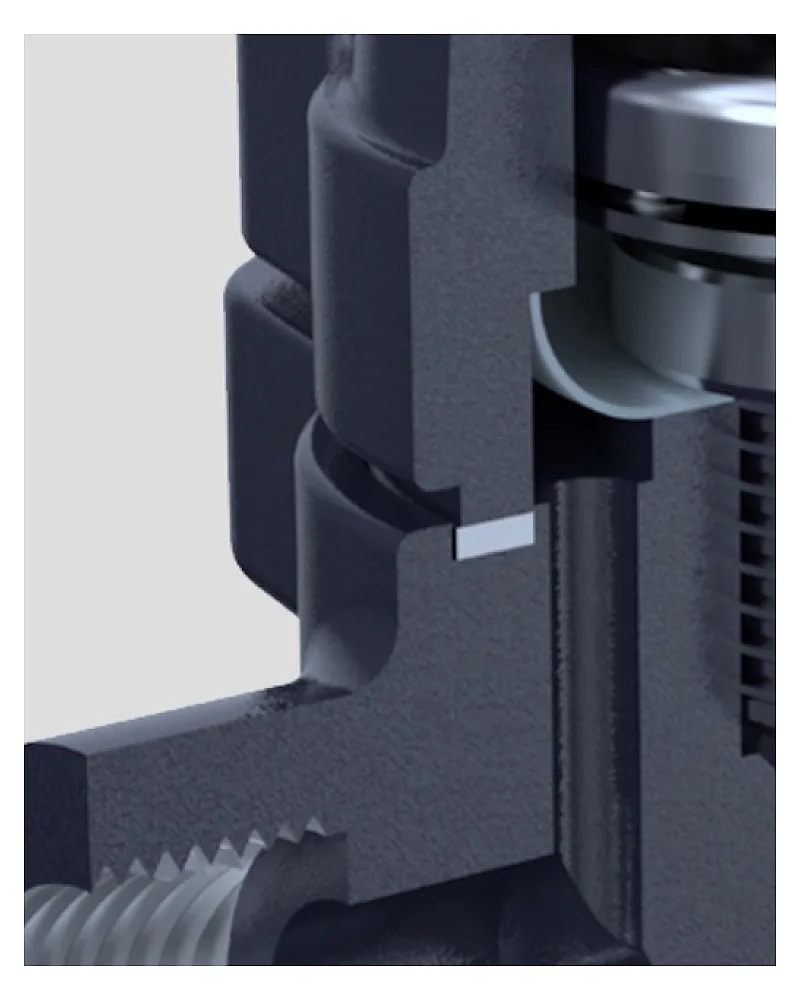

Integrated Stainless Steel Strainer
Each unit is equipped with a built-in, high-quality stainless steel strainer. This integrated filter effectively prevents pipeline debris, scale, and other particulates from reaching and clogging the precision valve seat, thereby ensuring consistent performance and reducing maintenance needs.

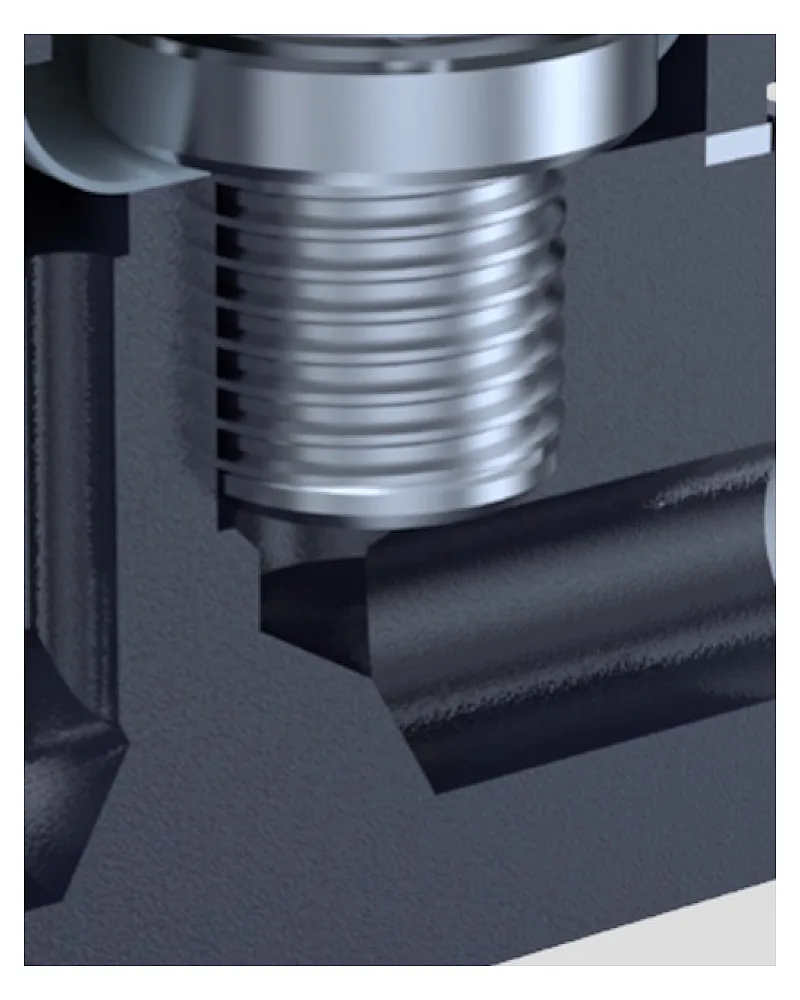

Precision Diaphragm Disc with Spherical Seal
The sealing mechanism employs a unique spherical disc integrated with a hardened G10-grade chrome steel ball. This design guarantees a perfect, wear-resistant seal by meeting the most stringent requirements for sphericity and micro-surface finish, virtually eliminating steam loss.

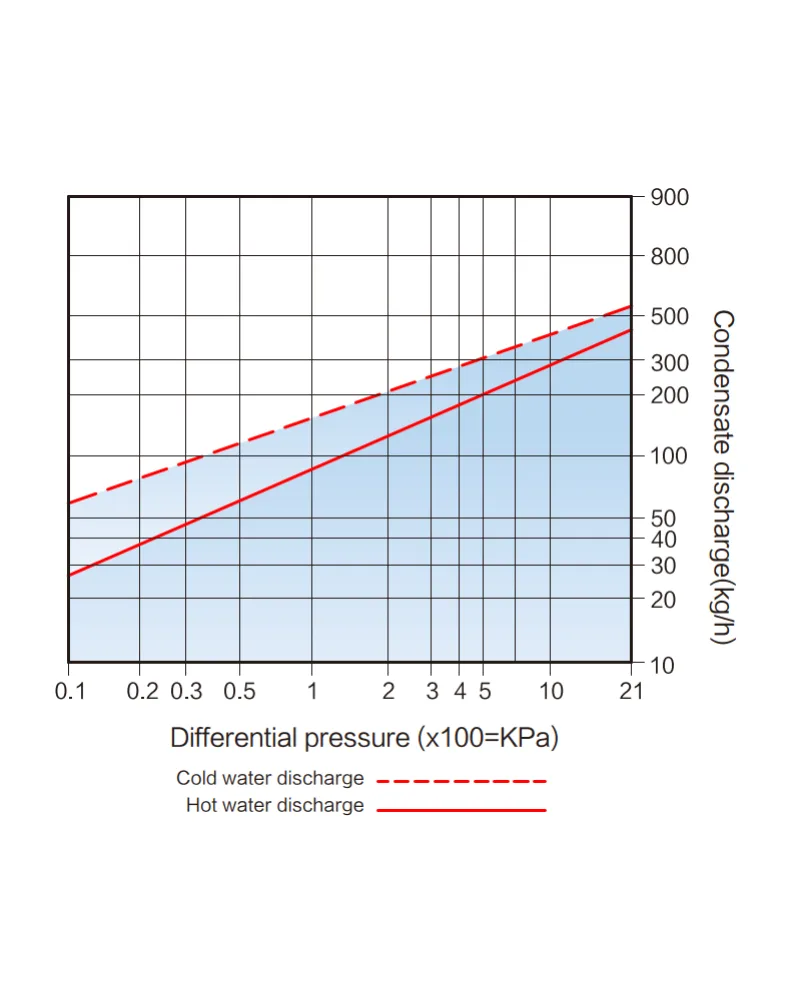

Discharge Capacity Performance
The MATICA ST900 series is engineered for high-efficiency discharge across its operational range. The discharge capacity charts (available in the technical downloads) detail the precise kg/h rates for models DN15 to DN25 under various pressure differentials. This data is essential for engineers to correctly size and select the optimal trap for each specific application, ensuring system harmony and peak efficiency.
Optimize Your Steam System with the Official MATICA Partner
Upgrade your industrial efficiency with the intelligence of the MATICA ST900 series. As Turkey's authorized dealer, LİNDER ENDÜSTRİ provides not only the product but the complete technical solution.
