Linder

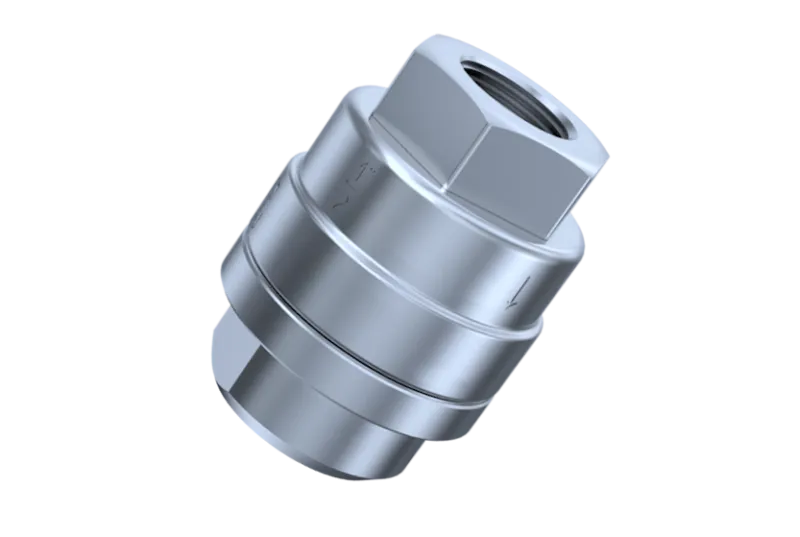

ST900.1 series by MATICA

ST900.1 series by MATICA

ST900.1 series by MATICA

MATICA

The Intelligent Drain. Engineered by MATICA.

LINDER, your MATICA dealer, presents the ST900.1 thermostatic capsule trap. This model masters condensate drainage through its precise phase-change technology. The capsule expands and contracts with thermal shifts, offering automatic, energy-conscious control for your steam system.

Applications

Heat exchangers, reactor kettles, vulcanizing pans, jacketed kettles, roller heat exchangers, cylinder dryers, etc.

Characteristics ST900.1 series

DesignThermostatic Steam Trap
Nominal sizesDN 15 – 25 mm
Pressure ratingPN25 bar
Differential pressureΔPMX 21 bar
Maximum operating temperatureTMO 270 ºC
Discharge Capacities≤ 520 kg/h
Body typeThreaded, Flanged
MaterialStainless steel
Get Info via WhatsAppRequest a quote for this product
ShareXLinkedInWhatsApp

Actuation

Actuator Options

One body, several ways to drive it — chosen to suit your application.

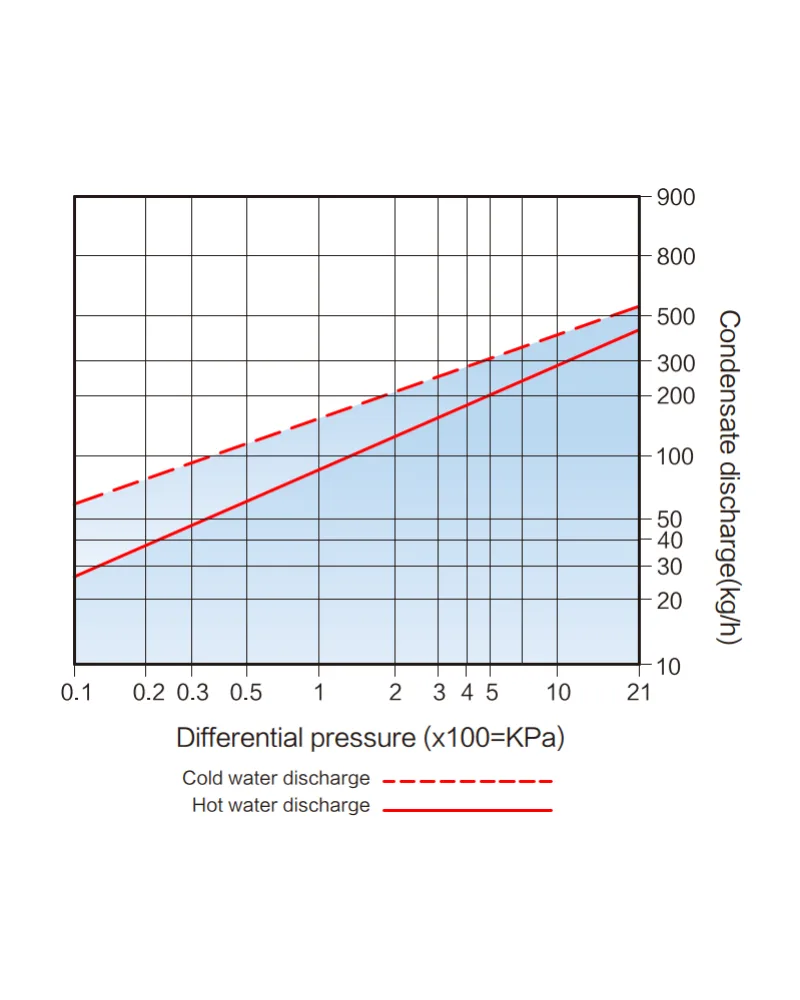

  • Discharge Capacities ST900.1 DN15-25.

Engineering

Design Details

The solutions that set this product apart — each one measurable on site.

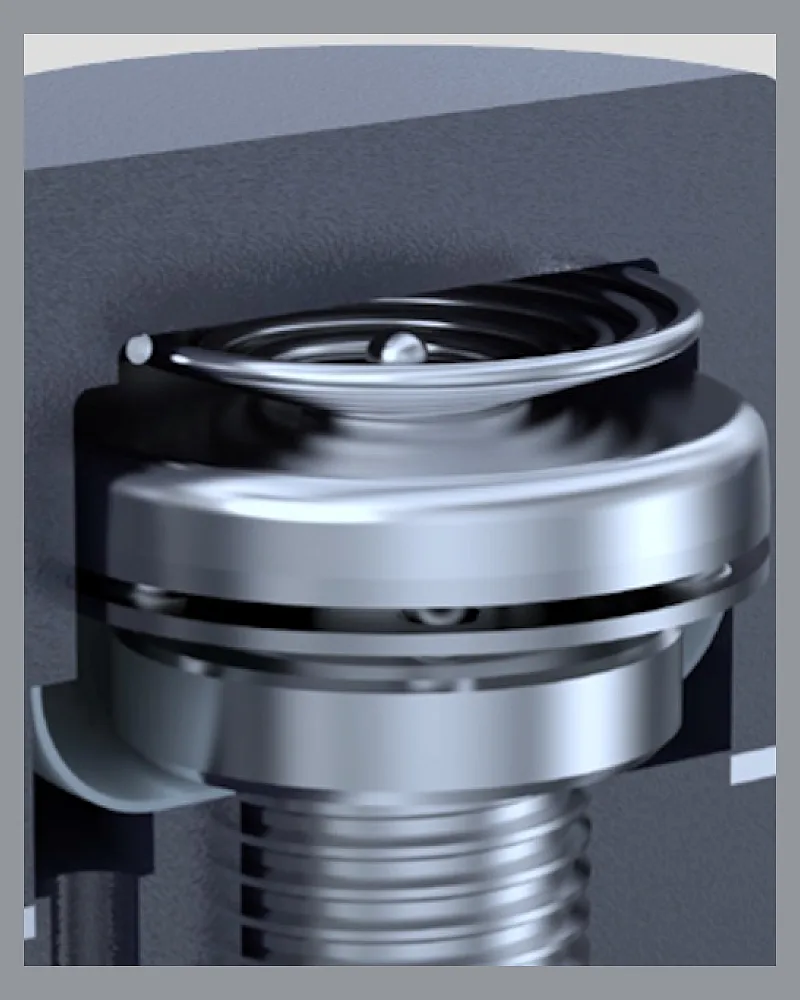

  • High-strength diaphragm cartridge assembly: The diaphragm of the diaphragm chamber is made of Hastelloy alloy and employs a vacuum-welded pressure capsule.

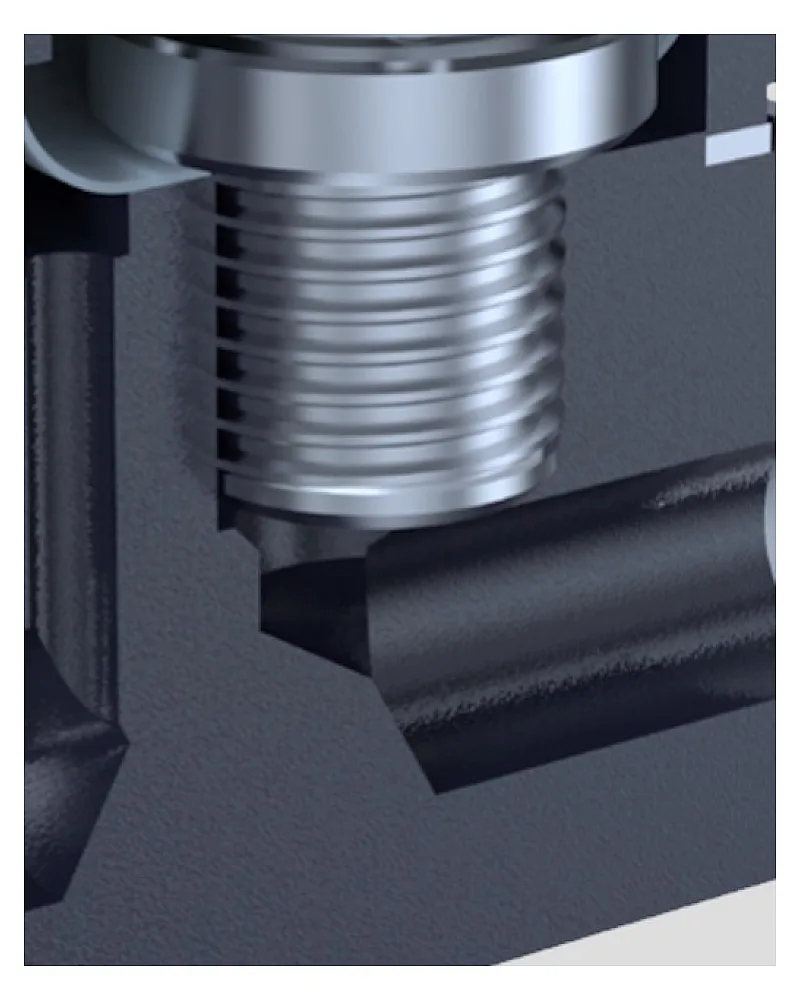

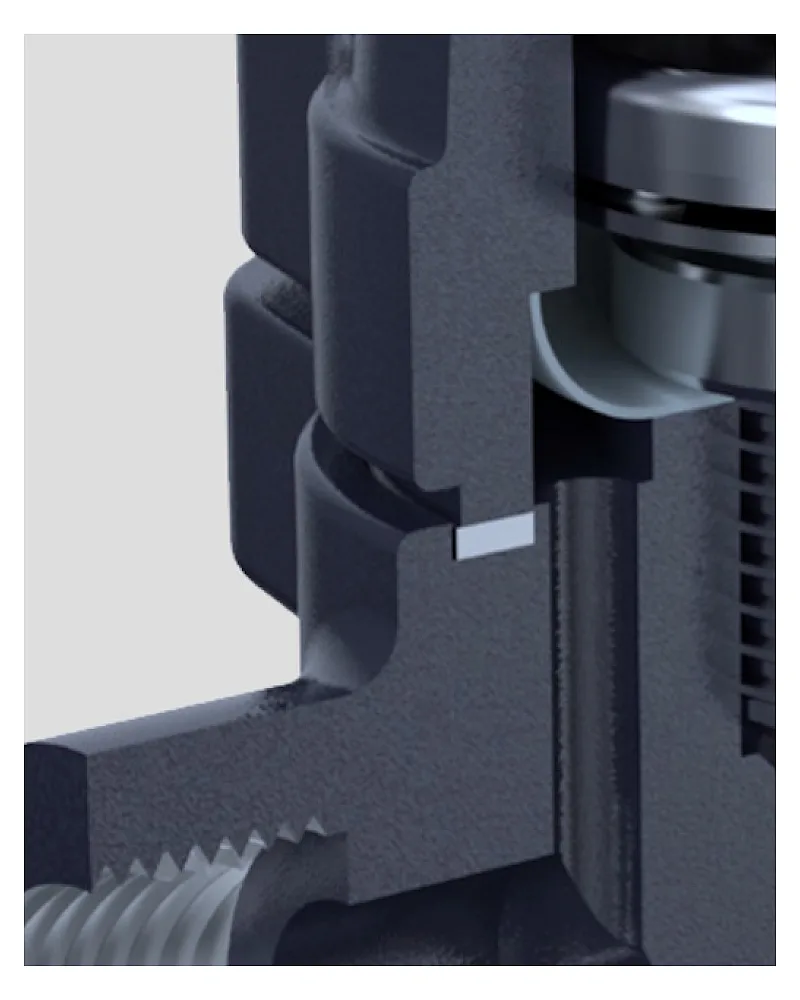

  • Built-in strainer: A stainless steel filter prevents the valve seat from clogging.

  • Diaphragm disc: A spherical sealing disc with an integrated G10 grade steel ball ensures high-precision sealing, meeting strict requirements for roundness and surface finish.

Product Description

Optimize Your Steam Systems: The Advanced ST900.1 Thermostatic Steam Trap by MATICA

Official Partnership for Industrial Excellence in Turkey

In the demanding landscape of Turkish heavy industry, efficiency, reliability, and precision are non-negotiable. LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ stands at the forefront of this sector as the official dealer and technical partner for MATICA products in Turkey. We bridge the gap between world-class German engineering and the robust needs of local industry, providing not just components, but integrated, energy-efficient solutions for critical steam management.

MATICA, with its legacy of innovation in pipeline fittings and valve technology, represents the pinnacle of durability and intelligent design. Our partnership allows us to deliver this benchmark of quality directly to your projects, backed by our local engineering expertise, logistical support, and comprehensive after-sales service.

Introducing the ST900.1 Series: Intelligent Condensate Drainage

The Intelligent Drain. Engineered by MATICA.

As your dedicated MATICA dealer, LİNDER is proud to present the ST900.1 thermostatic capsule steam trap, a paradigm of efficiency for modern steam systems. This superior model transcends basic condensate removal, mastering drainage through its sophisticated, physics-driven operation.

The heart of the ST900.1 is its precision-engineered thermostatic capsule. Filled with a special fluid, the capsule responds with exceptional sensitivity to thermal changes. It expands and contracts, automatically modulating the valve seat to discharge condensate at temperatures near saturated steam temperature. This ensures optimal heat transfer, prevents live steam loss, and delivers significant, measurable energy savings for your operation.

Primary Applications

The ST900.1 is engineered for high-performance heat transfer equipment across key industries:

  • Shell and tube heat exchangers
  • Reactor kettles and jacketed vessels
  • Vulcanizing pans in rubber processing
  • Industrial roller dryers and cylinder dryers
  • Autoclaves and various process heating equipment

Technical Specifications & Design Advantages

Key Characteristics of the ST900.1 Series

  • Design Type: Thermostatic Steam Trap with Bellows Capsule
  • Nominal Sizes (DN): 15, 20, 25 mm
  • Pressure Rating: PN25 bar
  • Max. Differential Pressure (ΔPMX): 21 bar
  • Maximum Operating Temperature (TMO): 270 °C
  • Max. Discharge Capacity: Up to 520 kg/h
  • Connection Types: Threaded (BSP), Flanged
  • Body Material: Stainless Steel (standard)

Note: Discharge capacities vary by model and differential pressure. Consult our engineering team for precise sizing.

Uncompromising Engineering Details

High-Strength Diaphragm Cartridge Assembly

The core actuator features a diaphragm crafted from corrosion-resistant Hastelloy alloy, assembled using advanced vacuum-welding technology. This ensures exceptional fatigue resistance, zero leakage of the filling fluid, and long-term cyclic stability under extreme thermal and pressure loads.

Integrated Stainless Steel Strainer

An internal, high-grade stainless steel filter mesh is incorporated to protect the precision valve seat from pipeline debris, scale, and particulate matter. This built-in safeguard prevents clogging, reduces maintenance interventions, and extends the service life of the trap.

Precision Spherical Diaphragm Disc

Sealing is achieved via a unique spherical disc with an integrated G10-grade hardened steel ball. This design guarantees a consistently perfect, line-contact seal with the seat, meeting the most stringent requirements for roundness and surface finish. The result is superior shut-off, minimizing steam loss to maximize energy efficiency.

Your Strategic Source for MATICA in Turkey

Choosing LİNDER as your MATICA partner means more than purchasing a valve; it's an investment in system reliability and expert local support. We provide:

  • Authentic MATICA Products: Guaranteed genuine components with full manufacturer warranty, supplied directly through official channels.
  • Technical Expertise: Our engineering team offers in-depth application analysis, correct product selection, and sizing to match your specific process parameters.
  • Comprehensive Logistics: Efficient supply chain management ensures timely delivery across Turkey.
  • After-Sales & Service: Dedicated support for installation guidance, troubleshooting, and maintenance advice.
