In the demanding landscape of Turkish industry, where efficiency and reliability are paramount, the performance of your steam system is non-negotiable. Steam traps are the silent guardians of this efficiency, and their failure can lead to massive energy waste, production downtime, and safety concerns. This is where precision engineering meets trusted local partnership.
Strategic Partnership: MATICA Engineering & LİNDER's Local Expertise
LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ is the authorized dealer and technical partner for MATICA valve solutions across Turkey. We bridge the gap between MATICA's world-class, patented German engineering and the specific needs of Turkish industrial enterprises. Our partnership ensures that you receive not only a premium product but also comprehensive local support, including expert selection, engineering consultation, timely logistics, and after-sales service.
MATICA stands as a manufacturer with over 15 years of expertise, operating from five modern facilities. Their hallmark is a combination of certified high quality, innovative patented designs, and exceptional value—a philosophy perfectly aligned with our commitment at LİNDER to deliver superior industrial solutions.

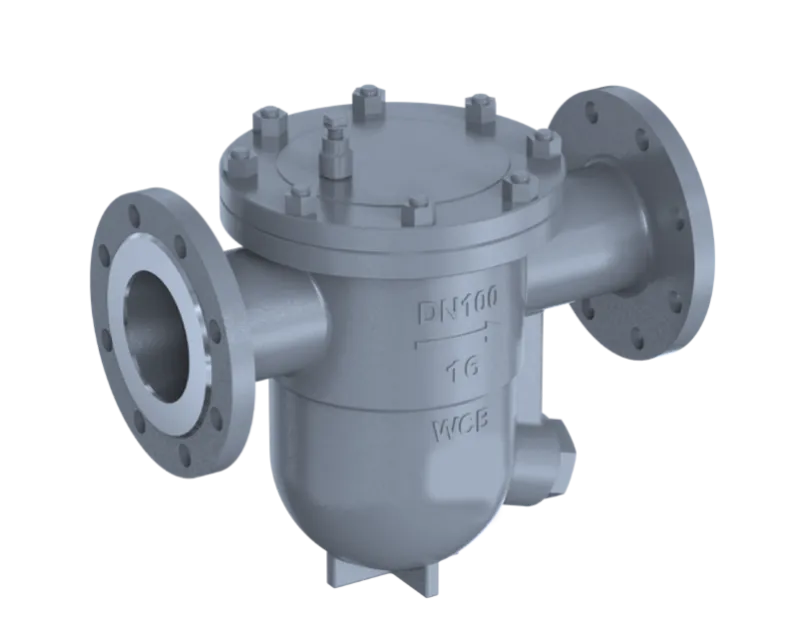

Introducing the MATICA ST800.1 Series: The Benchmark for Steam Trap Efficiency
Unrivaled Simplicity, Unmatched Durability.
Demand peak performance from your steam system with the MATICA ST800.1 Free Float Steam Trap. This series represents a paradigm shift in reliable condensate drainage, engineered to deliver precise, continuous operation under any load variation. Its revolutionary durability stems from an ingeniously simple design centered around a single moving part—a self-regulating, laser-welded stainless steel float. Authorized dealer LİNDER provides direct access to this benchmark of efficiency for plants all over Turkey.
Core Applications for the ST800.1 Series
The MATICA ST800.1 is engineered for high-capacity, continuous operation in critical industrial equipment, including but not limited to:
- Shell and tube heat exchangers
- Reactor kettles and jacketed vessels
- Industrial vulcanizing pans
- Roller dryers and cylinder dryers
- Autoclaves and other process heating equipment
Technical Characteristics & Specifications
Design & Operating Parameters
Design Type: Free Float Steam Trap
Nominal Sizes (DN): 15, 20, 25, 32, 40, 50, 65, 80, 100 mm
Pressure Ratings: PN16, PN40 bar / Class 150, Class 300
Maximum Differential Pressure (ΔPMX): 4 bar, 12 bar, 25 bar variants
Maximum Operating Temperature (TMO): Up to 350°C
Connection Types: Threaded (NPT, BSP) or Flanged (PN16/40, ANSI)
Body Material: Carbon Steel (WCB) or Stainless Steel (CF8/CF8M)
Discharge Capacities
The ST800.1 series offers exceptional discharge capacity for its compact design:

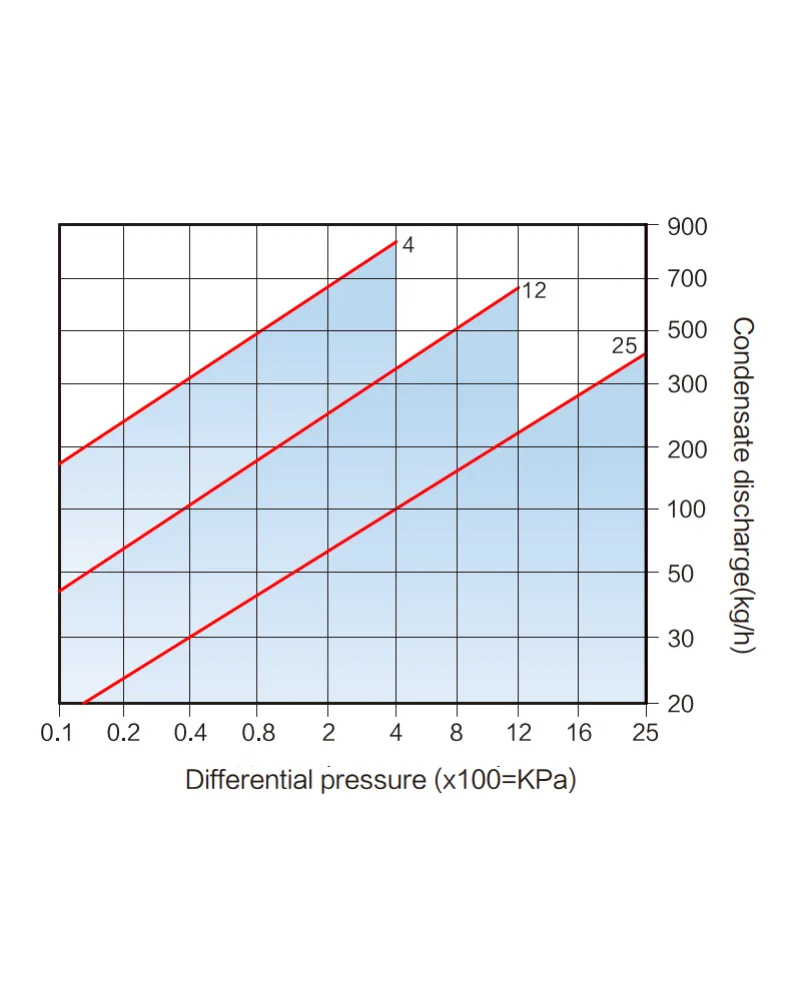

DN 15 - 25 mm: Maximum capacity up to 850 kg/h, depending on ΔP.

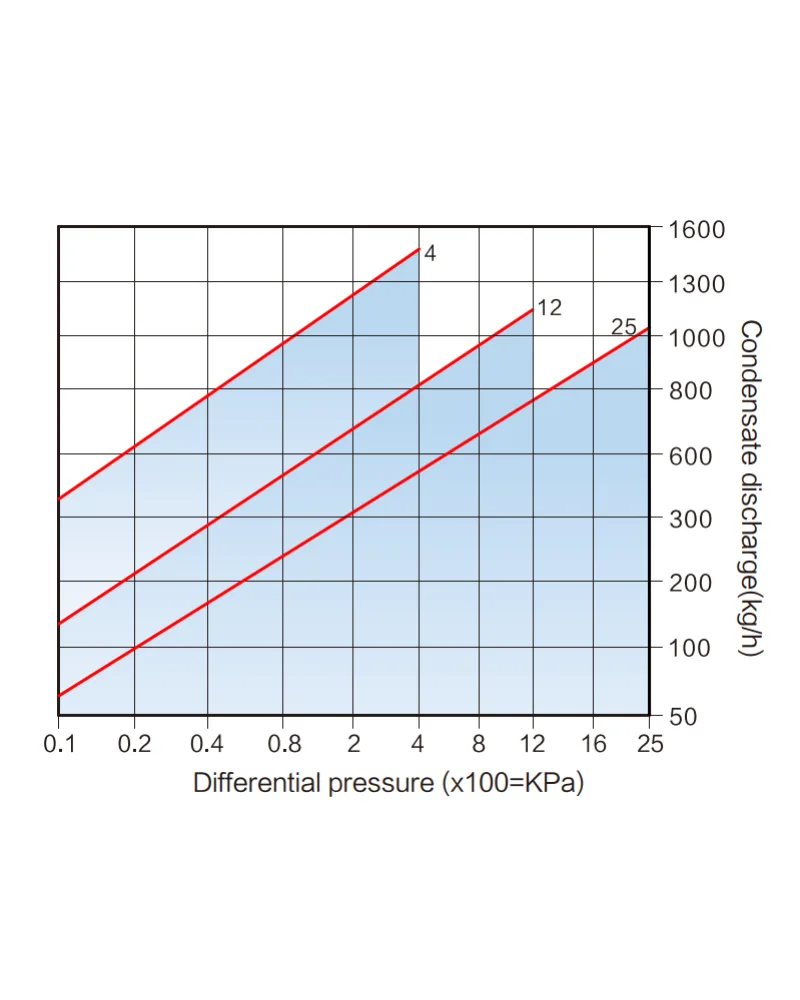

DN 32 - 50 mm: Maximum capacity up to 1,460 kg/h, depending on ΔP.

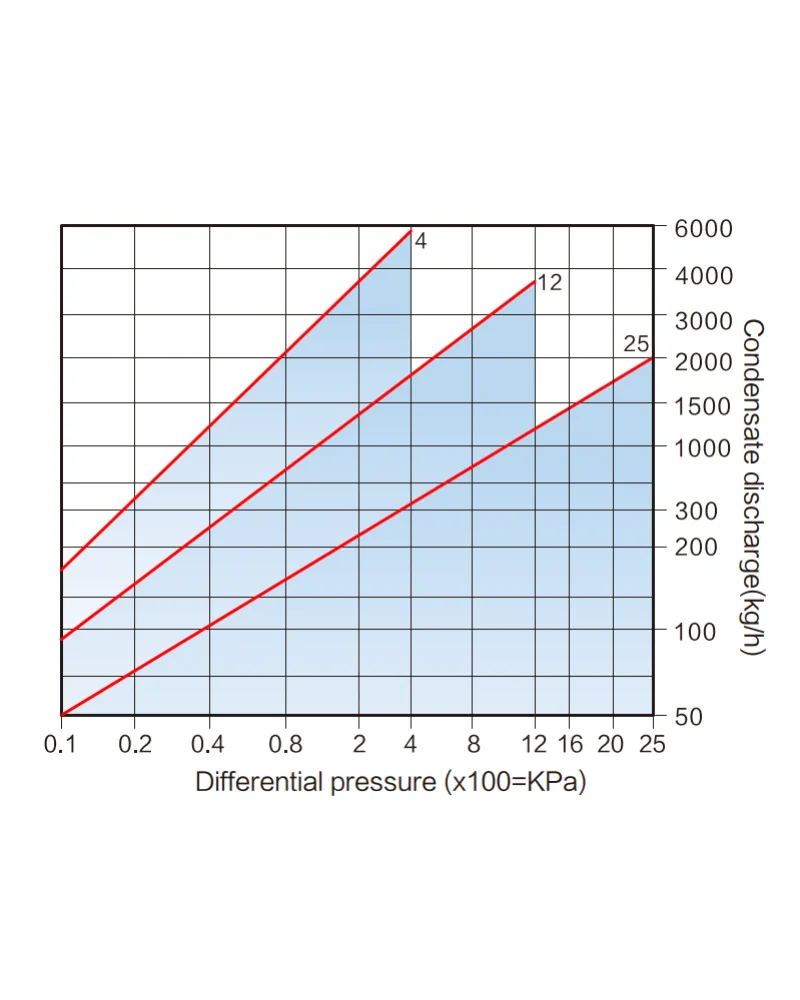

DN 65 - 100 mm: Maximum capacity up to 5,950 kg/h, depending on ΔP.
For precise capacity charts at specific differential pressures, please consult our engineering team.
Engineering Details: Why the ST800.1 is Superior
Integrated Automatic Air Vent

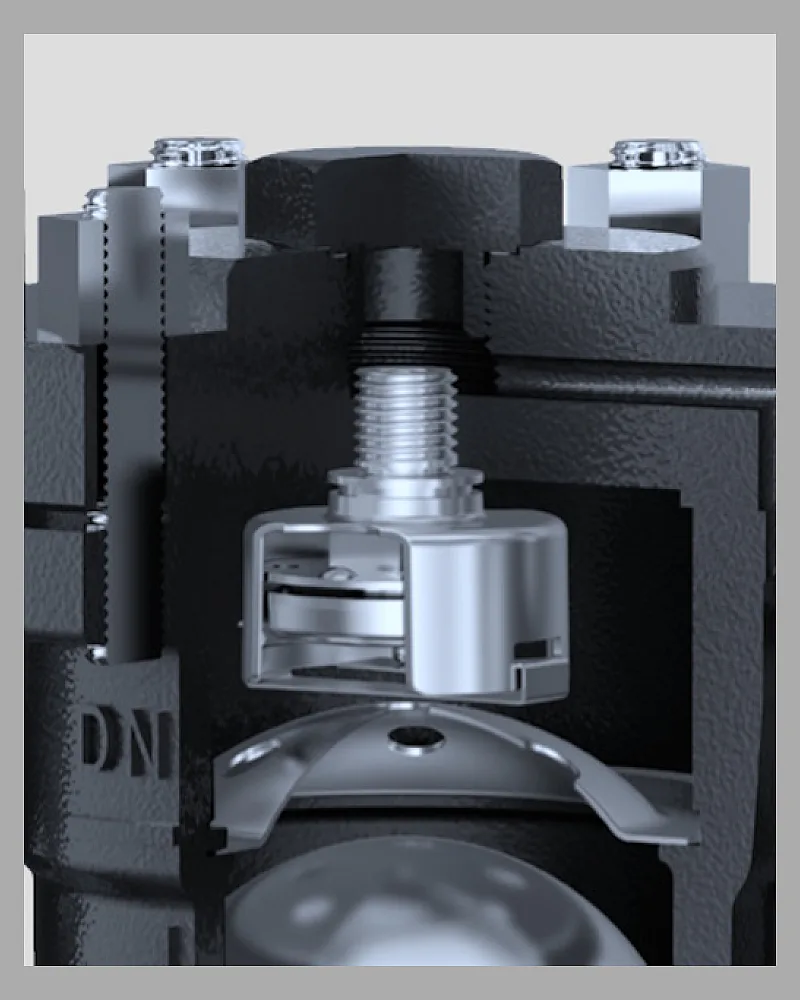

Features a built-in air vent assembly (bladder or bimetallic type) that ensures rapid startup by purging non-condensable gases. A key maintenance advantage is that the vent cartridge can be replaced during trap operation without a system shutdown.
Built-In, Cleanable Dual Filter
Equipped with a robust 60-mesh, double-layer stainless steel filter screen. It effectively protects the trap mechanism from pipeline scale and debris. The filter is designed for easy inspection and cleaning, prolonging service life.
High-Precision Laser-Welded Float

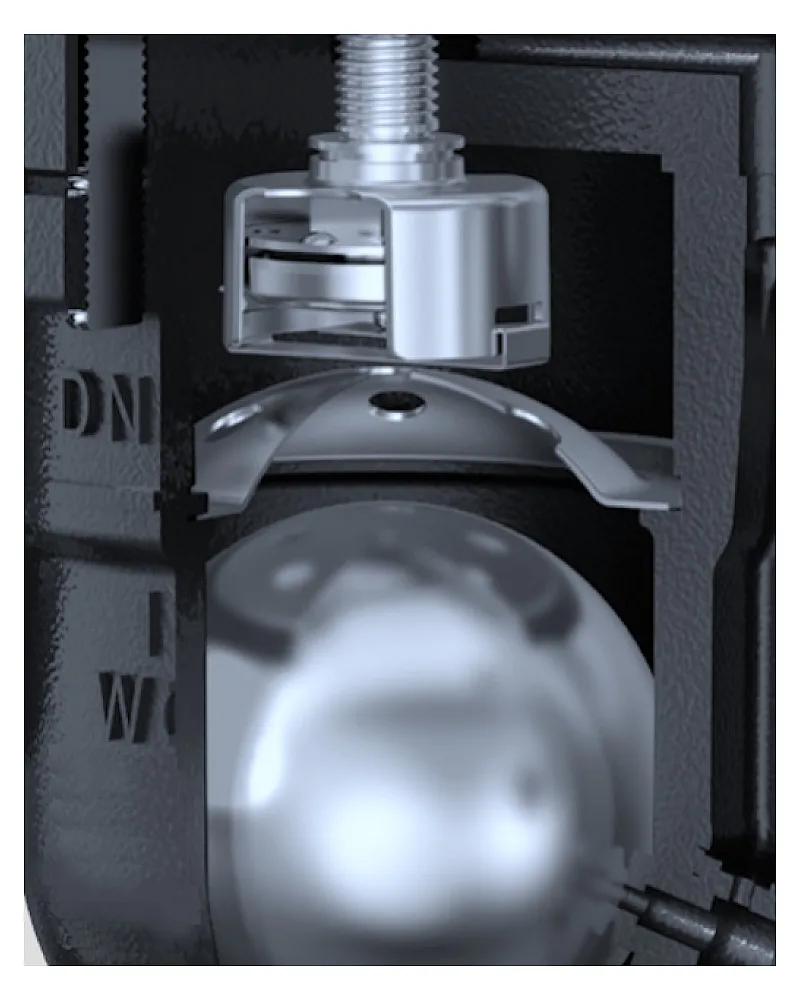

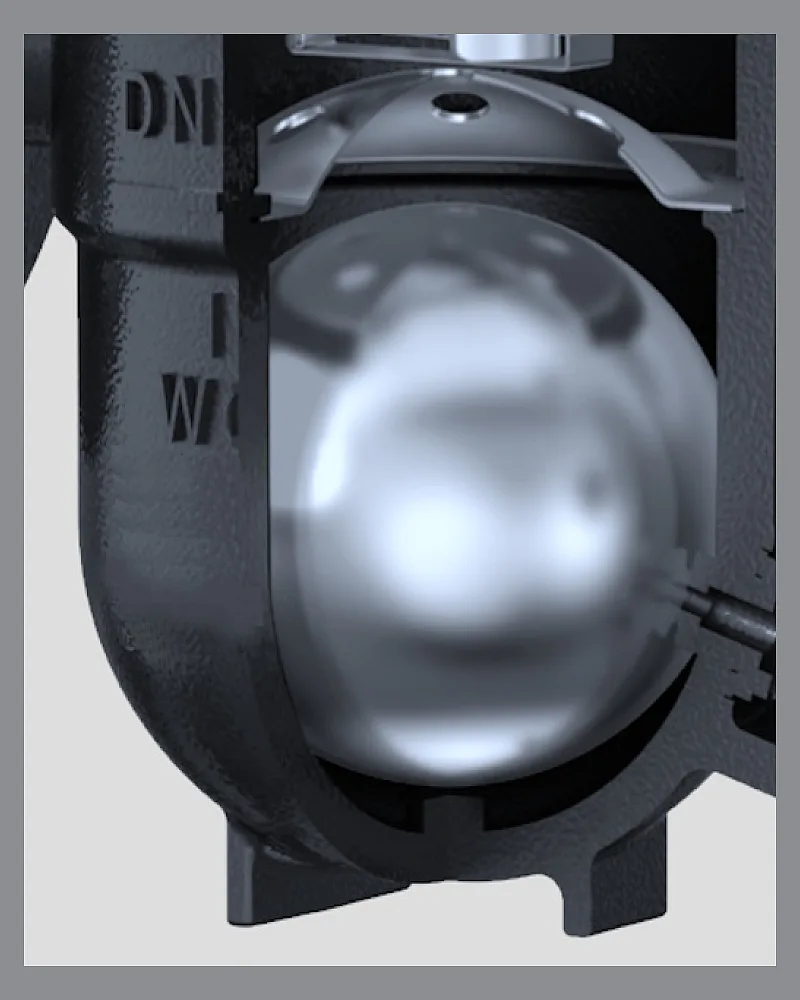

The heart of the trap is a stainless steel float manufactured to an exceptional roundness tolerance of 0.01 mm via laser welding. This precision ensures smooth, consistent operation and eliminates the risk of premature failure from imbalance.
Advanced Wear-Resistant Valve Seat

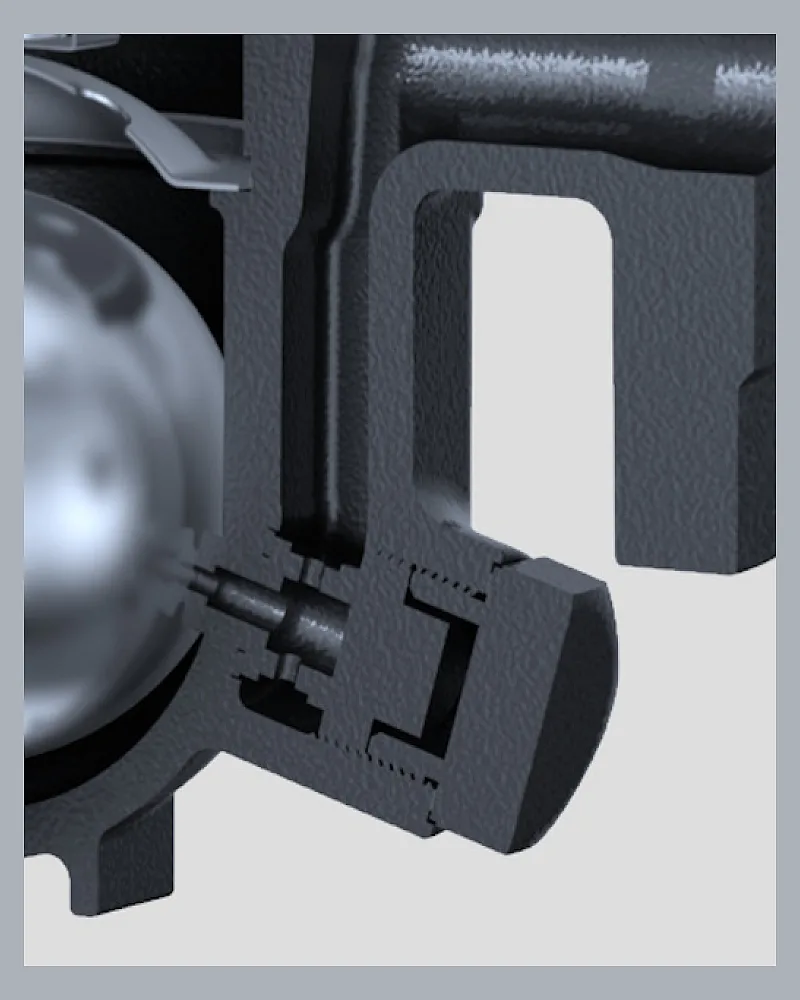

Incorporates an S430 stainless steel valve seat that undergoes specialized vacuum heat treatment. This process dramatically enhances its surface hardness and durability, ensuring a tight seal and exceptional resistance to wear and wire-drawing over millions of cycles.
Downloads & Technical Resources
Comprehensive technical datasheets, 2D/3D CAD drawings, installation manuals, and performance curves for the MATICA ST800.1 series are available upon request. Our team at LİNDER can provide you with all necessary documentation for seamless integration into your project.
