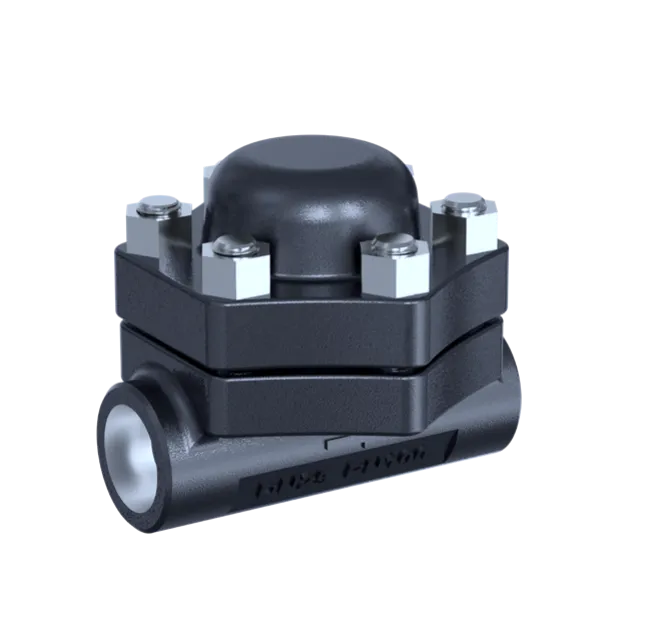

MATICA ST600.2 Bimetallic Steam Traps: Official Expertise & Supply in Turkey by LINDER
For engineers and plant managers across Turkey's demanding industrial sectors—from energy generation and chemical processing to food production and textiles—steam system efficiency is not just an operational metric; it is the foundation of profitability, safety, and equipment longevity. At the heart of an optimized steam system lies a critical, yet often overlooked component: the steam trap.
As the official dealer for the renowned MATICA factory in Turkey, LINDER provides more than just equipment; we deliver engineered solutions. We are proud to introduce the MATICA ST600.2 series of bimetallic steam traps, a pinnacle of design engineered for extreme conditions where reliability cannot be compromised. This article delves into the advanced engineering, material science, and application-specific benefits that make the ST600.2 the intelligent choice for Turkey's most challenging industrial environments.
Understanding the Critical Role of Steam Traps in Industrial Efficiency
Before examining the specifics of the ST600.2, it's essential to understand the high cost of failure. A steam trap's primary function is to automatically remove condensate (water), air, and non-condensable gases from steam systems while preventing live steam loss. Ineffective trapping leads to a cascade of operational and financial penalties:
The High Cost of Steam Trap Failure
Reduced Thermal Efficiency: A layer of condensate inside pipes or on heat exchanger surfaces acts as an insulator, dramatically reducing heat transfer rates. This forces systems to work harder, consuming excess fuel.
Corrosion and Water Hammer: Accumulated condensate combines with dissolved gases like carbon dioxide to form corrosive carbonic acid, attacking pipes and vessels from within. Furthermore, slugs of condensate traveling at steam velocity can cause destructive hydraulic shocks known as water hammer, risking catastrophic equipment failure.
Process Inconsistency: Fluctuating temperatures and pressures due to poor condensate removal lead to uneven product quality in manufacturing processes.
The MATICA ST600.2 is engineered to eliminate these issues, transforming your steam system from a necessary utility into a reliable, efficient asset.
Engineering Excellence: The Bimetallic Principle of the MATICA ST600.2

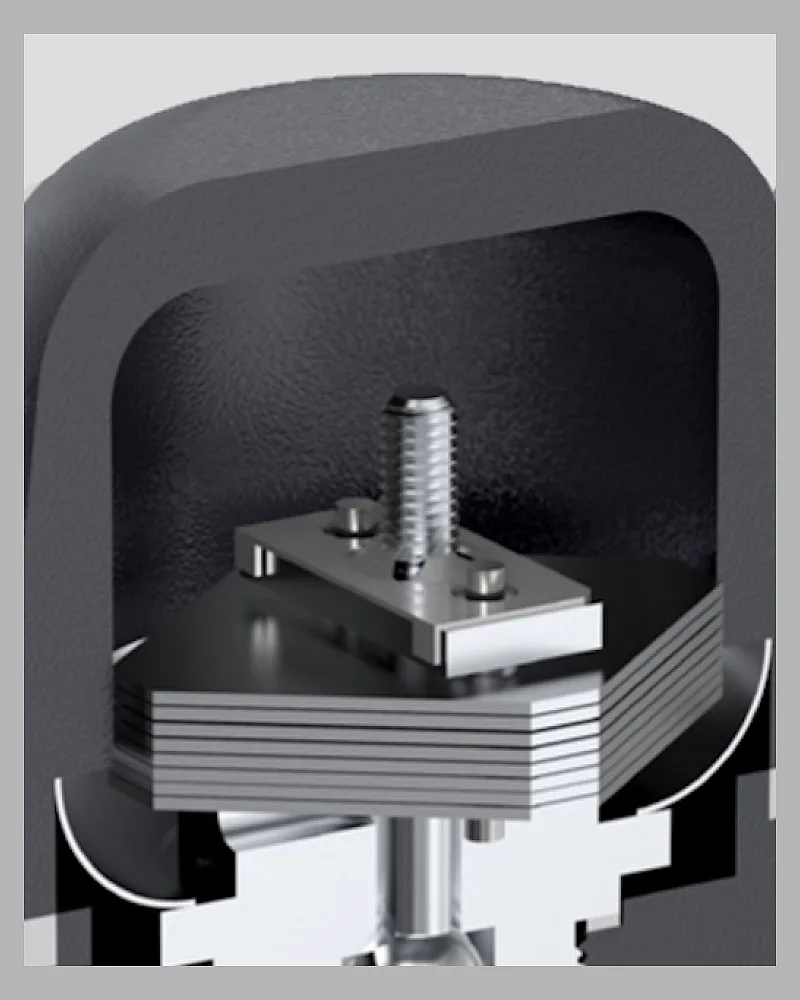

The MATICA ST600.2 utilizes a sophisticated thermostatic operating principle, centered on a precision bimetallic element. This element consists of laminated plates of two different metals, each with a distinct coefficient of thermal expansion.
Precision Operation and Sealing
The Science of Operation: As condensate (which is cooler than steam) enters the trap, it cools the bimetallic element. The differential contraction of the metal plates causes the element to flex, instantly opening the valve and allowing condensate to discharge rapidly.

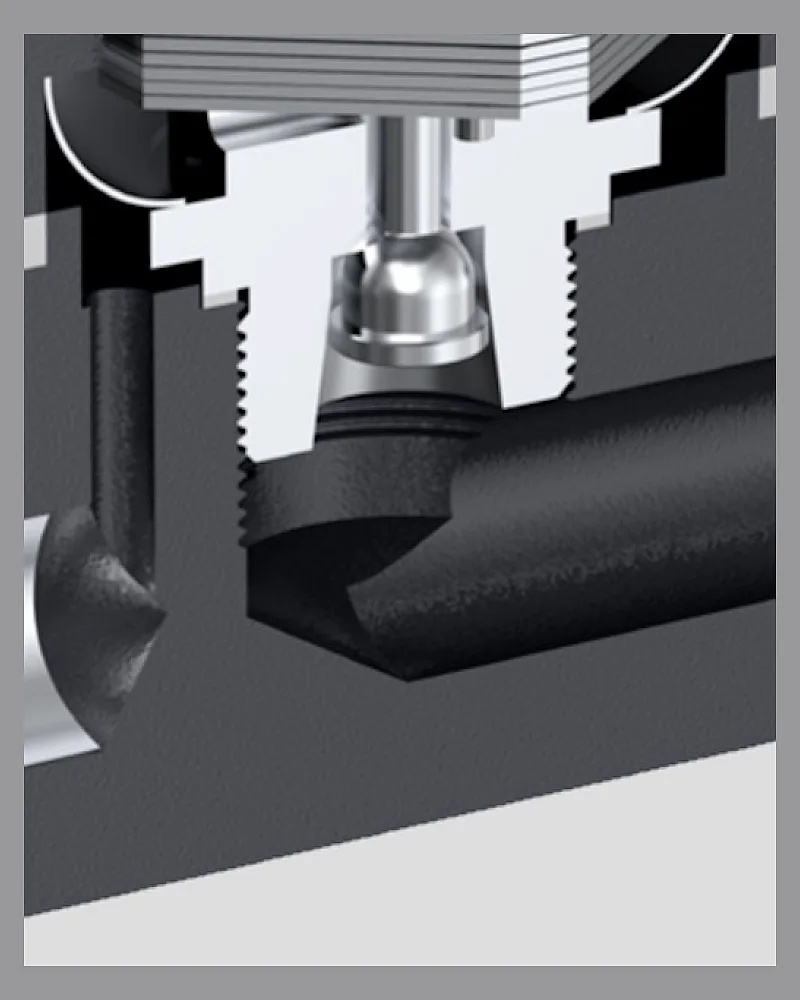

Sealing Perfection: As hot steam approaches the trap, the bimetallic element heats up and expands, applying a powerful, mechanically amplified closing force to the valve seat. This creates a bubble-tight seal that prevents any live steam loss, a common failure point in other trap designs.
Robust and Self-Adjusting Design
This purely thermodynamic operation means the trap automatically adjusts to varying loads and pressures without manual intervention. With no delicate floats or buckets that can fail under load, the bimetallic mechanism offers exceptional resilience against pressure surges and water hammer.
Built for Turkish Industry's Toughest Challenges: Technical Superiority
The MATICA ST600.2 series is not a generic solution; it is a purpose-built tool for high-intensity applications. Its specifications define a new standard for durability and versatility in the Turkish market.
Unmatched Performance Parameters
Pressure & Temperature Range: Engineered for a maximum working pressure of 100 bar and temperatures up to +500°C, the ST600.2 far exceeds the capabilities of common float or thermodynamic traps. This makes it ideal for high-pressure boiler outlets, superheated steam lines, and critical process equipment.
Superior Material Construction: Compromise on materials is not an option. The ST600.2's body is available in high-strength alloy steel (F22) or corrosion-resistant stainless steels (F304, F316). Critical wear components like the hardened disc and seat are crafted from A276 420 and A276 440C stainless steels, ensuring a long service life even with continuous cycling.
Flexibility and Customization

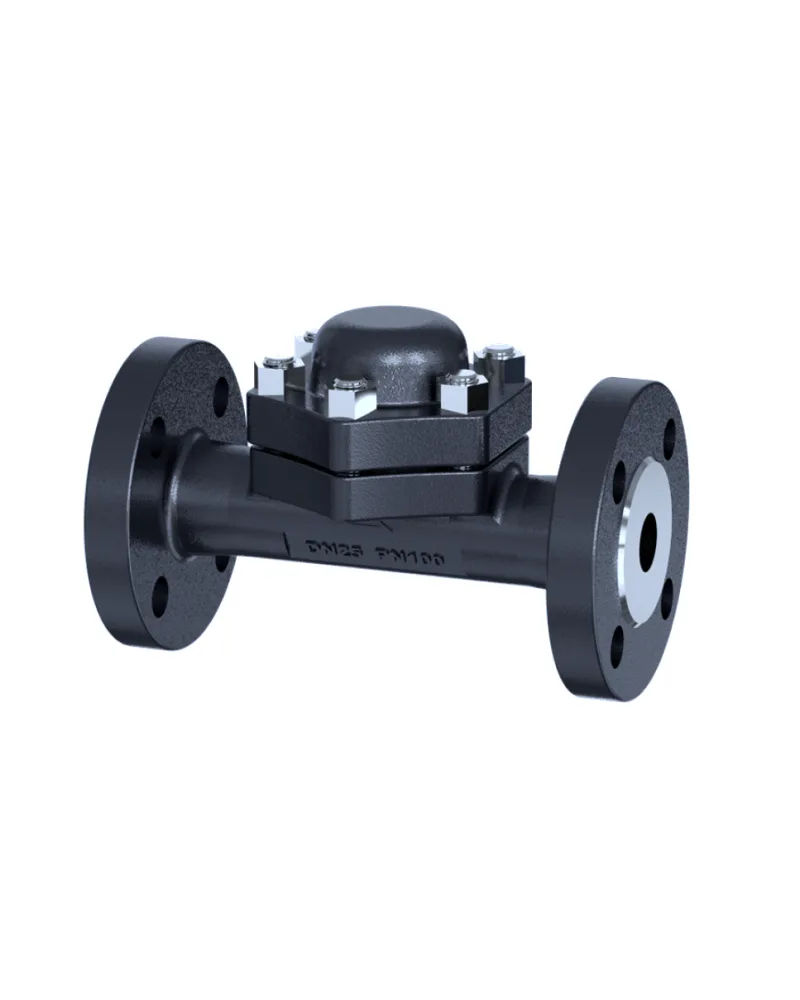

Versatile Installation: Designed for real-world practicality, the ST600.2 can be installed in both horizontal and vertical orientations, providing layout flexibility. It is available with flanged, threaded, or custom weld-end connections.
Factory-Optional Customization: Recognizing that standard solutions don't fit every challenge, MATICA, through its official Turkish dealer LINDER, offers material customization for all internal components to suit specific corrosive or thermal challenges.
Proven Applications Across Key Turkish Sectors
The robust design of the ST600.2 series makes it the preferred choice for applications where downtime is prohibitively expensive and reliability is paramount.
Primary Industrial Applications
Power Generation & Co-Generation Plants: For high-pressure steam drains, turbine bypass systems, and main steam line drips.
Chemical & Petrochemical Facilities: Handling process steam and heat transfer fluids in reactors, columns, and reboilers, where chemical resistance is crucial.
Oil & Gas Refineries: On refinery process heaters, steam tracing bundles, and utility steam distribution.
Pulp & Paper Manufacturing: On high-temperature drying cylinders, cooking digesters, and heat recovery systems.
Heavy Industrial Manufacturing: For autoclaves, vulcanizers, and large-scale industrial dryers requiring consistent, high-temperature heat.
The LINDER Advantage: Your Official MATICA Partner in Turkey
Choosing the MATICA ST600.2 through LINDER unlocks a comprehensive partnership that extends far beyond the transaction.
Authorized Technical Expertise and Support
Our engineers possess factory-backed training on the entire MATICA product line. We provide application-specific selection to ensure the ST600.2 is perfectly sized and specified for your system's pressure, temperature, and load conditions—a critical step for optimal performance and longevity.
Total Lifecycle and Supply Chain Assurance
From initial calculation and supply to installation guidance and after-sales service, LINDER is your single point of contact. As the official dealer, we maintain strategic stock and have a direct pipeline to the MATICA factory, ensuring you receive genuine parts with reliable lead times.
Optimizing Total Cost of Ownership
While the ST600.2 represents a premium product, its value is realized through dramatically reduced steam loss, lower maintenance costs, and extended equipment life. It protects valuable downstream assets, offering an outstanding return on investment.
Secure Your Operational Excellence with MATICA and LINDER
In the competitive landscape of Turkish industry, operational excellence is non-negotiable. The MATICA ST600.2 bimetallic steam trap series represents a fusion of advanced thermostatic engineering and ruggedized material design, built to secure the efficiency and integrity of your most critical steam assets.
By partnering with LINDER, you gain more than a supplier; you gain a technical ally dedicated to optimizing your steam system's performance. We provide the authentic MATICA technology, the authoritative expertise for correct application, and the local support to ensure your investment delivers maximum reliability and savings.
