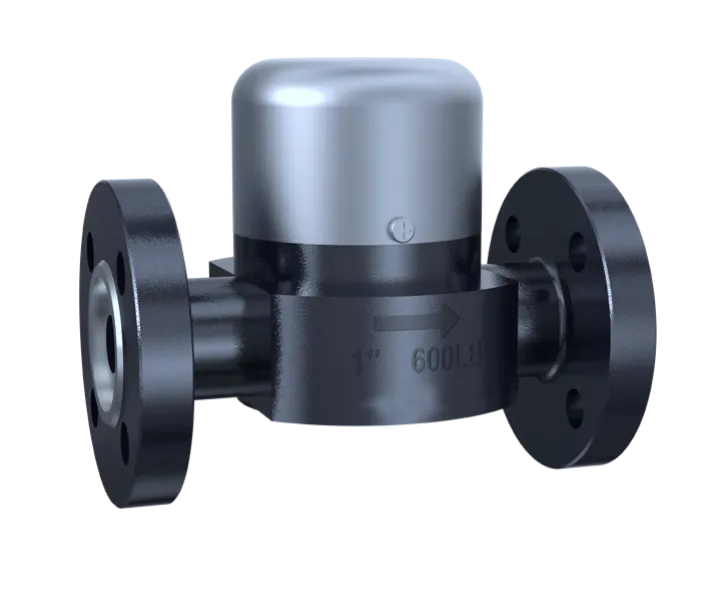

MATICA ST500.3 Thermodynamic Steam Trap: Maximize Efficiency with the Official Dealer in Turkey
Engineered for Extreme Performance and Unmatched Energy Savings
For industrial facilities across Turkey where steam system reliability and energy efficiency are paramount, the selection of condensate drainage technology is a decisive factor in operational success. The MATICA ST500.3 series thermodynamic steam trap stands at the pinnacle of engineering excellence, designed specifically for the most demanding high-pressure and high-temperature applications. As the official dealer of the MATICA plant in Turkey, LİNDER ENDÜSTRİ serves as your exclusive gateway to this advanced technology. We offer far more than just supply; we deliver comprehensive technical support, application expertise, and a partnership dedicated to ensuring your steam lines achieve peak performance, resulting in maximum energy conservation and unparalleled protection for your critical industrial assets.
Demand More from Your Steam System
Inefficient steam trapping remains a primary source of energy waste, leading to escalated fuel costs, increased carbon footprint, and the risk of damaging water hammer. The MATICA ST500.3 is meticulously engineered to eliminate these challenges. Proven in the world's most demanding environments—from drying cylinders and press lines to steam-jacketed pipes and critical industrial irons—this trap guarantees instantaneous, reliable condensate discharge. This ensures your steam remains dry, your process heat transfer is optimal, and your overall system efficiency is significantly enhanced.
Why the ST500.3 is the Definitive Choice for Turkish Industry
Selecting a steam trap is a strategic investment in your plant's operational stability and profitability. The MATICA ST500.3 distinguishes itself through robust construction and innovative features engineered for exceptional longevity and minimal maintenance intervention.

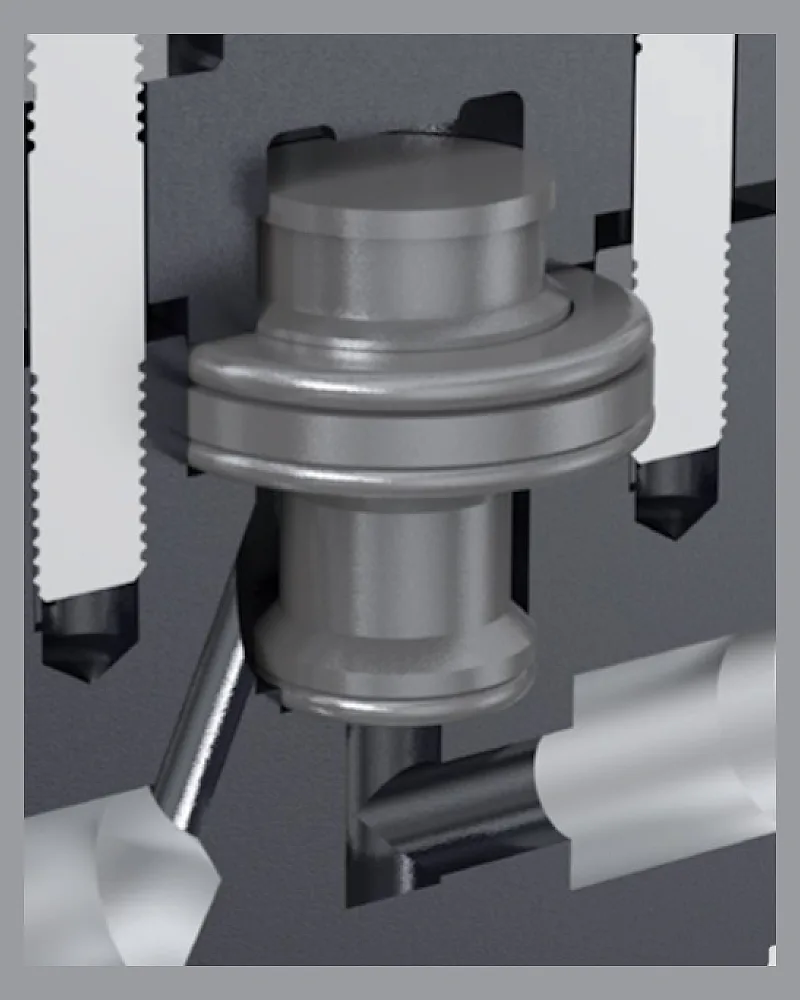

Superior Wear Resistance for Extended Service Life
The core of the ST500.3's durability lies in its critical components. The valve seat and disc are precision-crafted from SUS 440C material, subjected to specialized heat treatment to achieve an exceptional sealing surface hardness of 60 HRC. This extreme hardness provides superior wear resistance, maintaining a leak-tight seal over hundreds of thousands of cycles and effectively resisting erosion caused by high-velocity condensate—a common failure point in inferior trap designs.

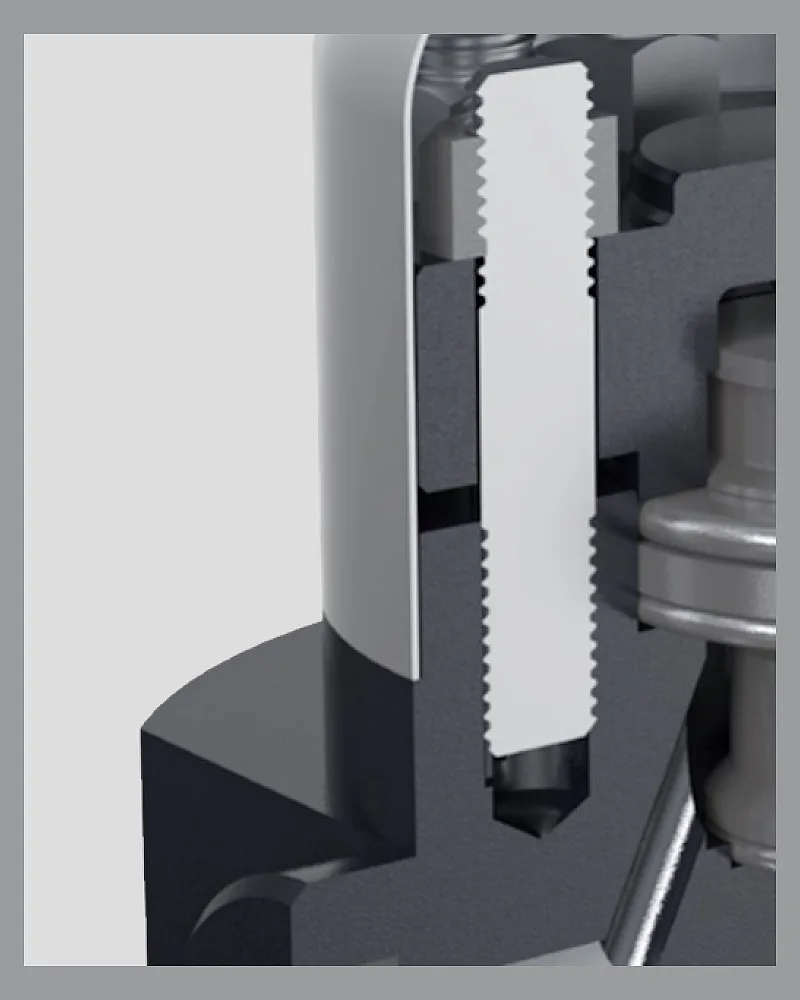

Patented Insulated Cover Design for Optimal Efficiency
A key innovation of the ST500.3 is its unique stainless steel insulated cover. This patented design is crucial for stabilizing the trap's internal thermodynamic cycle. It prevents the valve plate from "jumping" due to sudden external temperature fluctuations or drafts, a phenomenon that leads to premature live steam loss. By ensuring consistent operation, this feature directly translates to higher energy savings and contributes to a longer, more reliable service life for the trap.

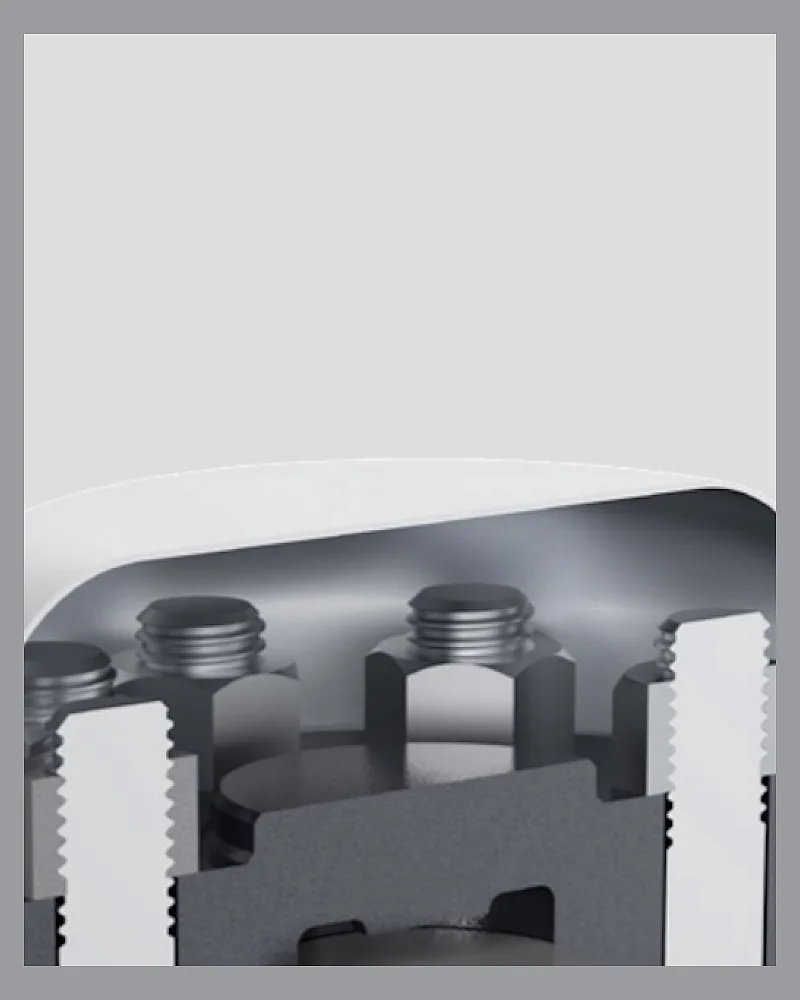

Engineered for Safety in Extreme Conditions
Operating with absolute safety under high-pressure superheated steam is non-negotiable. The ST500.3 incorporates a robust three-pair gasket design that guarantees a secure and stable seal even in the most aggressive service environments. It is engineered to withstand extreme pressures up to PN160 bar and temperatures soaring to 550°C, providing built-in safety redundancy that protects both your personnel and your continuous production processes.
Technical Specifications and Robust Construction
The MATICA ST500.3 is built to meet and exceed the rigorous demands of Turkey's core industrial sectors, including petrochemical, metallurgical, power generation, and oil & gas production.
- Model Range: ST500.3 Thermodynamic Steam Trap Series.
- Nominal Sizes: Available in DN 15, 20, and 25 mm.
- Pressure & Temperature: Maximum operating pressure (PMO) up to 150 bar with a differential pressure (ΔPMX) of 80 bar. Rated for continuous operation at temperatures up to 550°C.

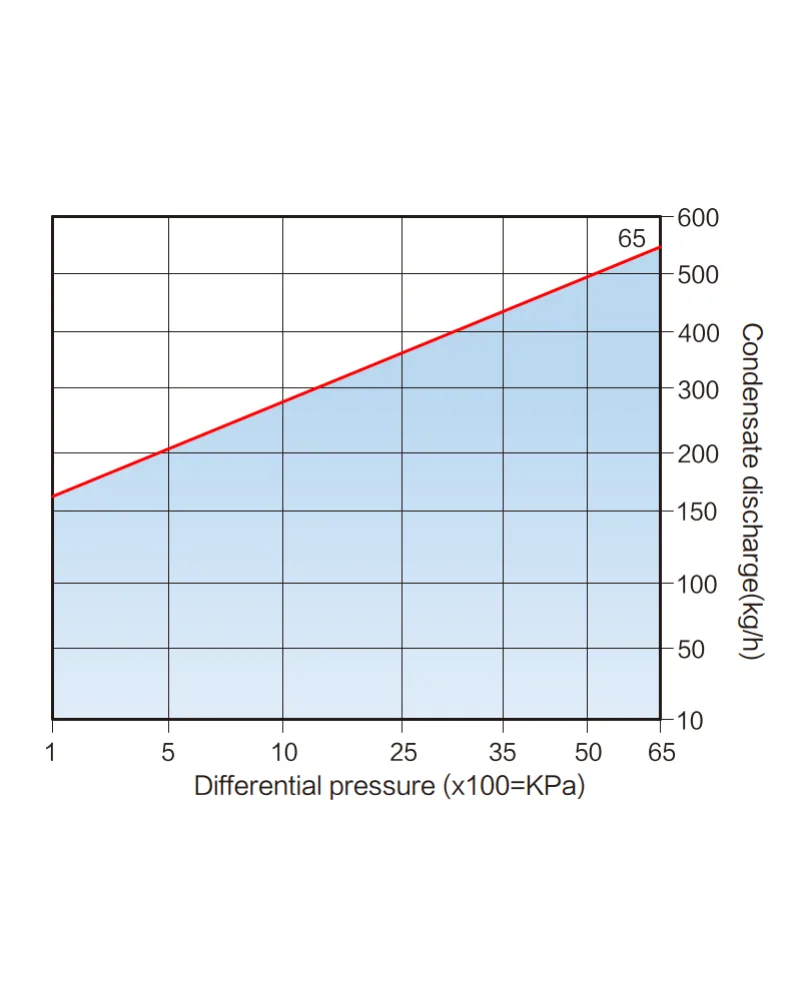

- High Discharge Capacity: Capable of handling substantial condensate loads of up to 550 kg/h, making it ideally suited for large-scale industrial applications.
- Connection & Mounting: Offers flexible installation options with threaded, socket weld, or flanged connections. For optimal performance, installation must be strictly in the horizontal position, observing the flow direction indicated by the arrow on the trap body.
- Material Integrity: Critical pressure-bearing components like the body and cover are available in high-grade alloys including F22, F304, F316, and F91 (A182 SA182 F91), selected for superior strength and corrosion resistance. Sealing integrity is ensured by specialized high-temperature gaskets made from 310S and Graphite.
LINDER: Your Trusted Partner Beyond the Sale
As the official MATICA dealer for Turkey, LİNDER ENDÜSTRİ transforms a simple component purchase into a long-term partnership for peak efficiency. Our commitment extends far beyond logistics and delivery.
Expert Selection & Engineering Support
Our dedicated team of engineers provides in-depth technical support for trap selection and application engineering. We ensure the ST500.3 is perfectly matched to your specific system parameters—pressure, temperature, and load conditions—for guaranteed optimal performance and return on investment.
Comprehensive Service from Conception to Maintenance
We offer a full spectrum of services, encompassing initial system audit and calculation, detailed product specification, supply chain management, installation supervision guidance, and responsive after-sales service. When you order the ST500.3, we can also supply all necessary mounting kits (for flanged versions) and optional accessories like blow-down systems or steam trap monitoring devices for predictive maintenance.
Proven Reliability Across Sectors
MATICA equipment, supplied and supported by LİNDER, is trusted in critical processes across Turkey and globally. Its proven reliability in power generation, pulp and paper, textile, and chemical processing plants underscores its capability to deliver under pressure.
Secure Your Operational Advantage Today
Do not let an inefficient steam system drain your energy budget and compromise your production output. The MATICA ST500.3, available exclusively through your official Turkish dealer LİNDER, is engineered to set a new benchmark for reliability, safety, and cost savings. Make the strategic choice for your facility's future.
Contact LİNDER today for a professional, no-obligation consultation. Let our engineering team help you specify the perfect ST500.3 solution for your application, ensuring you achieve maximum energy efficiency, operational safety, and long-term equipment protection.
