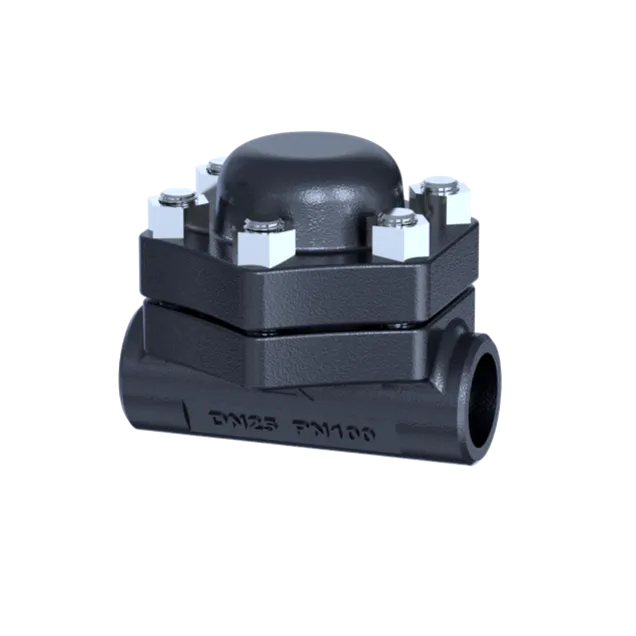

MATICA ST500.2 Thermodynamic Steam Trap: The Ultimate Solution for Extreme Pressure & Temperature Systems
In the demanding world of industrial steam management, efficiency and reliability are not merely preferences—they are fundamental requirements for profitability and operational continuity. When your systems operate at the edge of performance limits, you need a component engineered not just to function, but to excel. LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ, as the official and authorized dealer for MATICA products on the territory of Turkey, is proud to introduce the paradigm-shifting MATICA ST500.2 Series Thermodynamic Steam Trap. This represents the zenith of steam trap technology, designed to deliver uncompromising performance where it matters most.
Beyond Conventional Limits: The High-Stakes Challenge of Modern Steam Systems
Contemporary industrial processes in sectors such as power generation, petrochemicals, and heavy manufacturing continually push operational envelopes. Superheated steam lines, extreme pressures, and fluctuating loads create an environment where standard components rapidly degrade, leading to:
Critical Points of Failure
Energy Waste: Inefficient condensate removal leads to significant live steam loss, directly inflating energy costs.
Equipment Damage: Unremoved condensate causes destructive water hammer and thermal stress, risking costly repairs and downtime.
Process Inconsistency: Wet steam compromises heat transfer, affecting product quality in drying, vulcanizing, or heating applications.
The MATICA ST500.2 is the definitive answer to these challenges, engineered not as a commodity, but as a strategic asset for peak system performance.
Engineering Excellence: Decoding the MATICA ST500.2 Superiority
This trap is built for environments where failure is not an option. Its design philosophy centers on maximal durability, intelligent operation, and energy preservation.
Unrivaled Operational Parameters
With a breathtaking maximum operating capability of 100 bar (1450 psi) and +500°C, the ST500.2 operates reliably in the most severe conditions, far surpassing the range of conventional thermodynamic traps.
Patented Design for Intelligent Operation

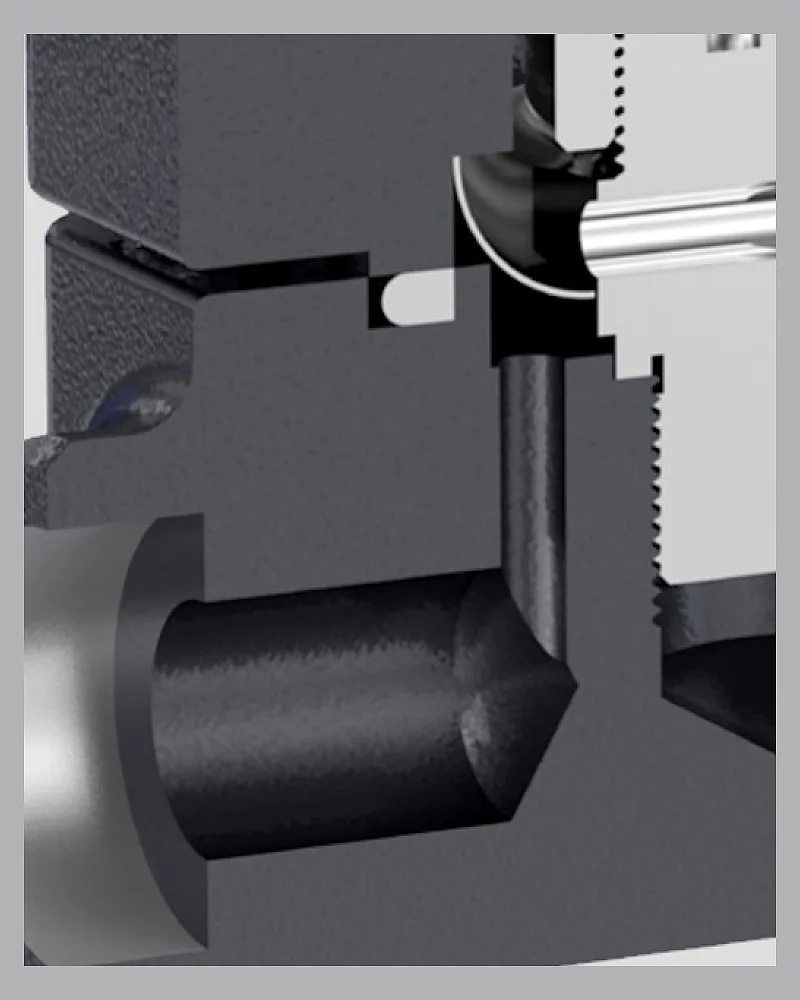

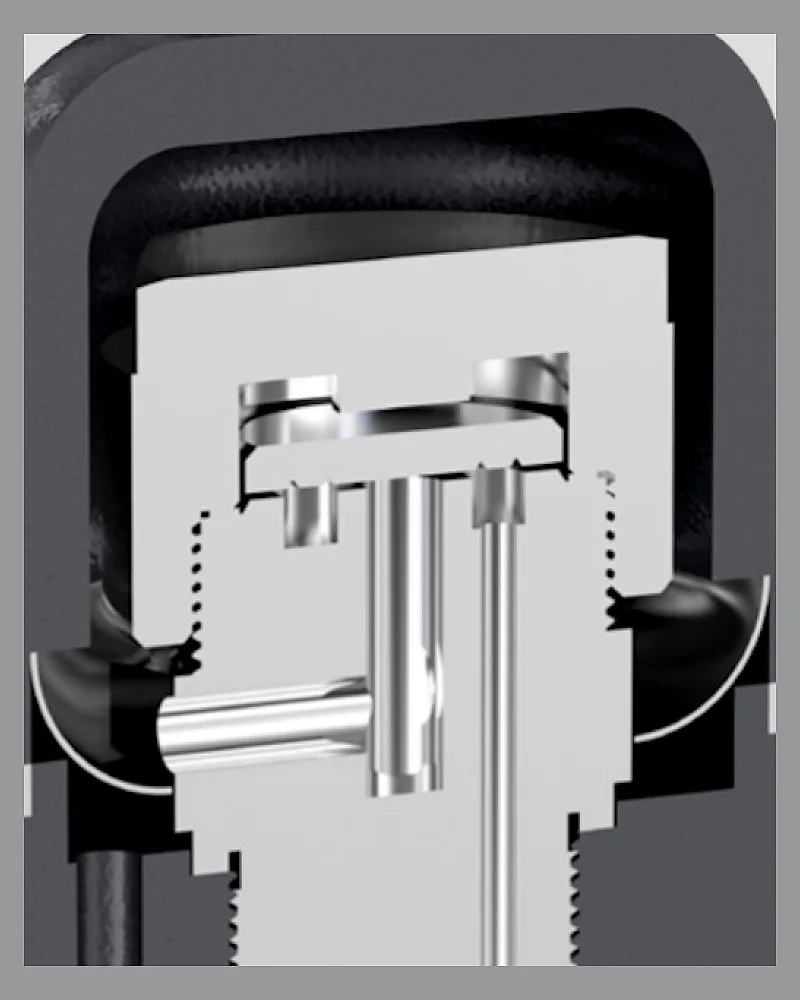

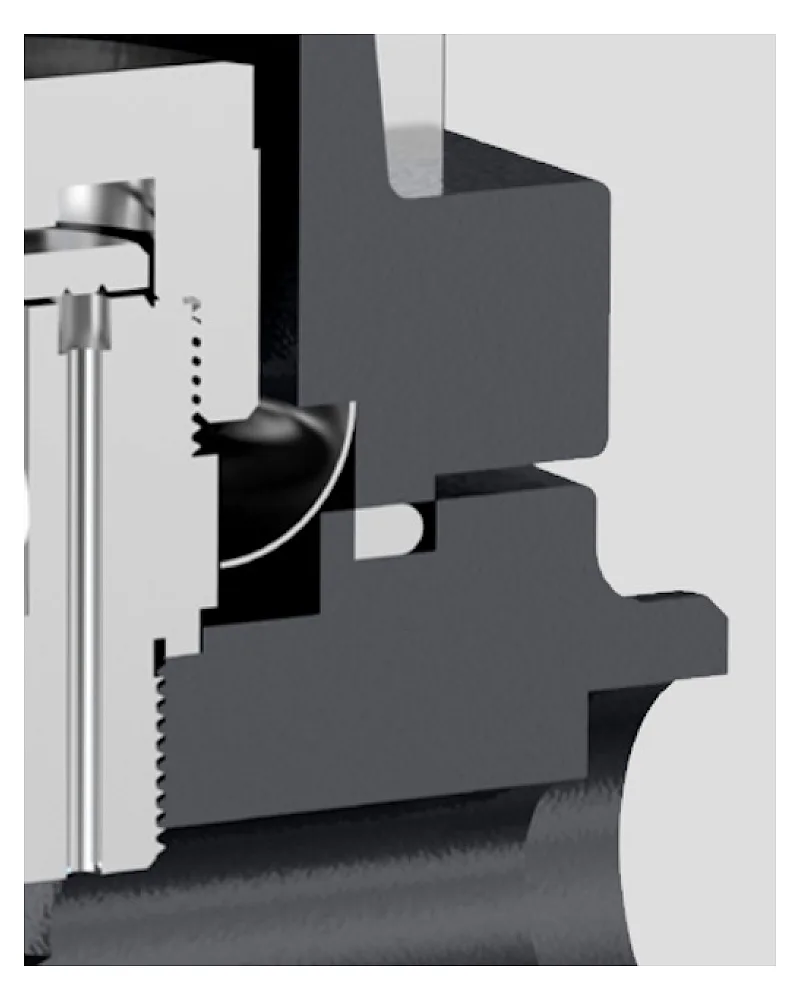

The innovative double bonnet design, featuring an insulating air chamber created by an outer bonnet sealed with 6 bolts and a high-pressure metal gasket, acts as a thermal barrier. This "thermos effect" drastically reduces unnecessary cycling caused by ambient cooling, ensuring the trap opens only for genuine condensate load. This extends service life and maximizes steam savings.
Unmatched Durability at the Core
The heart of the trap—the sealing pair—utilizes premium SUS 440 (AISI 440C) martensitic stainless steel. The valve seat is specially heat-treated to achieve an exceptional surface hardness of 60 HRC, offering extraordinary resistance to wear and erosion. The disc is precision-ground to a mirror-like finish with a surface roughness under 0.1Ra and flatness below 2 microns, guaranteeing a perfect, leak-tight seal for years.
Built-In Protection System

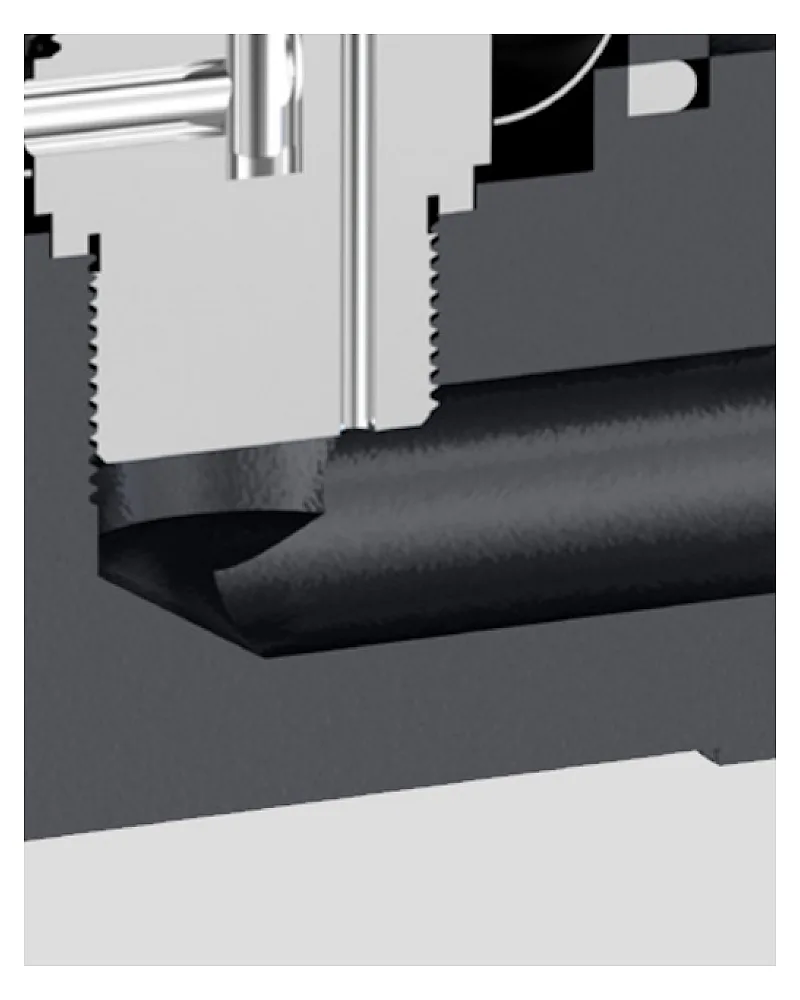

An integrated stainless steel filter at the inlet protects the precision sealing surfaces from pipe scale, weld slag, and other debris. This proactive feature prevents clogging and abrasive damage, ensuring consistent performance and reducing maintenance needs.
Technical Specifications & Configurational Flexibility
The MATICA ST500.2 series is designed for seamless integration into diverse industrial infrastructures.
Comprehensive Sizing and Performance Data
Available Sizes: DN 15, DN 20, DN 25, DN 32, DN 40, DN 50 mm.
Pressure Ratings: PN64 bar, PN100 bar (Class 600).
Max Differential Pressure (ΔPMX): Up to 65 bar.

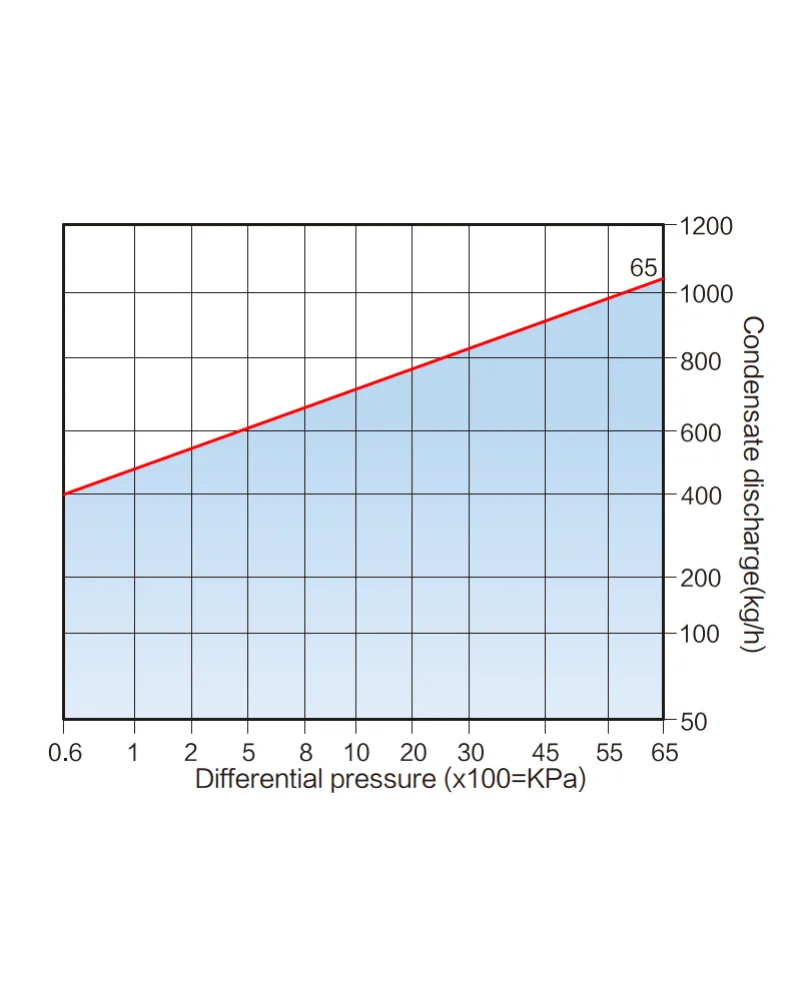

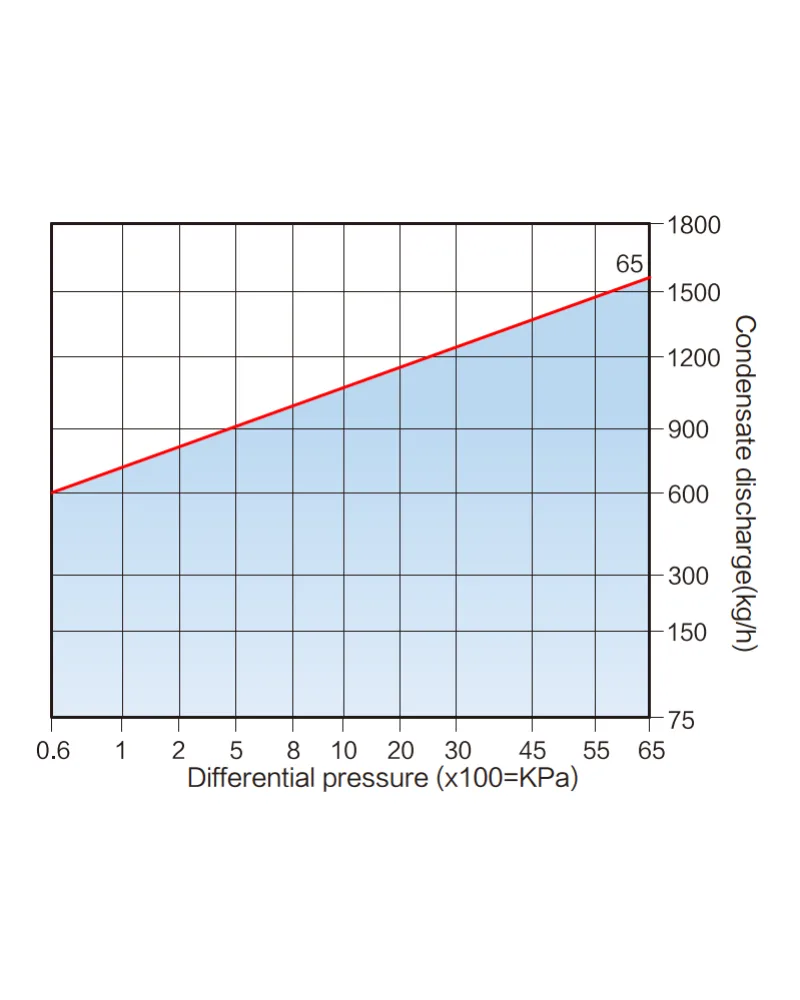

Discharge Capacity: Ranges from 1050 kg/h (DN15-25) to 1600 kg/h (DN32-50).
Material Integrity and Connection Options
Body & Cap Materials: Choice of high-tensile Alloy Steel (F22) or corrosion-resistant Stainless Steel (F304 / F316).
Gasket: Resilient Graphite-reinforced Stainless Steel (304/316).

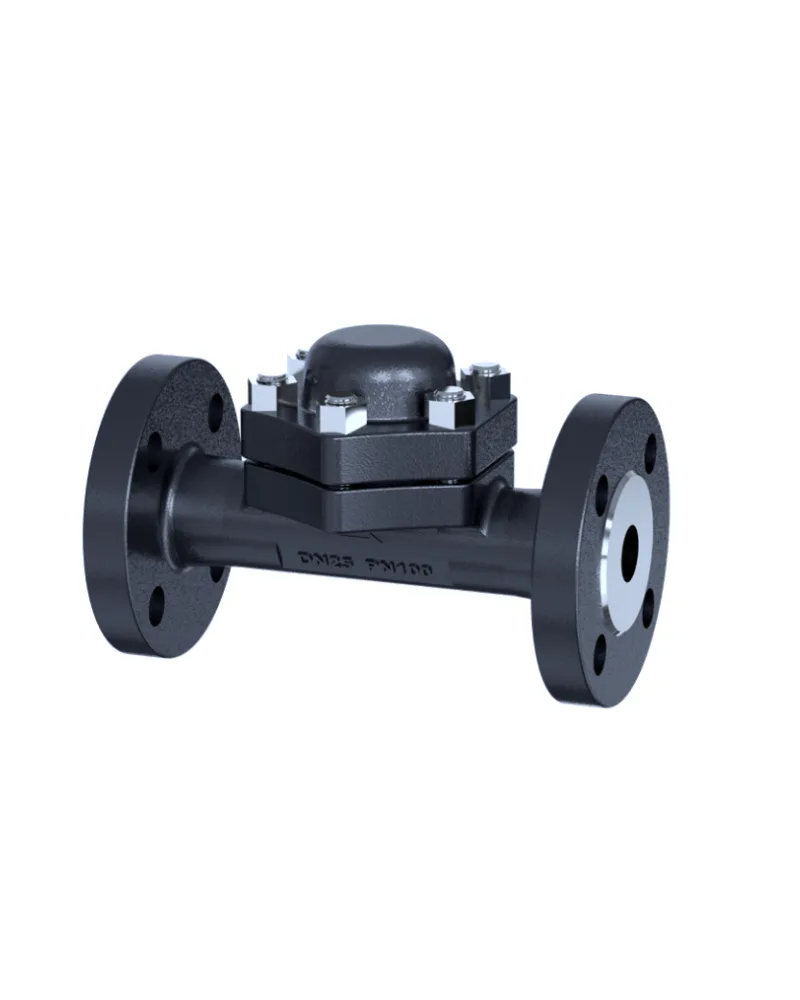

Connection Types: Full versatility with Threaded (NPT, BSP), Socket Weld, or Flanged ends to match your existing piping specifications.
Your Authorized Gateway to MATICA Technology in Turkey
LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ is more than a supplier; we are your dedicated technical partner for MATICA's premium industrial valve solutions in Turkey. Our partnership provides you with:
Expert Technical Consultation
Our engineering team possesses deep expertise in steam system dynamics. We provide application-specific analysis to ensure the optimal selection and sizing of the ST500.2 or any other MATICA series product for your unique process requirements.
Guaranteed Authenticity and Support
As the official MATICA dealer, we guarantee genuine products, complete with full certification and traceability. Our support extends from initial consultation through installation guidance to reliable after-sales service and spare parts supply.
A Commitment to Your Operational Excellence
We understand that your success is our success. By choosing the MATICA ST500.2 through LINDER, you are investing in measurable outcomes: reduced energy consumption, minimized downtime, enhanced safety, and a superior return on investment.
Optimize Your System. Secure Your Advantage.
Do not let an underperforming steam trap compromise your efficiency and bottom line. Step into a new era of reliability and control with the MATICA ST500.2, available exclusively in Turkey through LINDER.
Initiate the transformation of your steam system today. Reach out to our specialized engineering department for a detailed technical consultation, precise specifications, and a competitive commercial offer tailored to your project needs.
