Engineered to Endure. Performs to Save: The MATICA ST500.1 Thermodynamic Steam Trap
In the high-stakes world of industrial manufacturing, where steam serves as the indispensable lifeblood of production, operational efficiency transcends mere preference—it becomes an absolute imperative. Every kilogram of wasted steam directly equates to squandered energy, escalated operational costs, and undue strain on your entire system infrastructure. LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ, as the official authorized dealer and technical representative of MATICA on the territory of the Republic of Turkey, introduces the engineering benchmark for superior condensate management: the MATICA ST500.1 series thermodynamic steam trap. This device represents far more than a simple pipeline component; it is a strategic, high-precision engineering investment meticulously designed to deliver maximum endurance, relentless performance, and quantifiable long-term savings in your most demanding and critical steam applications.
Unrivaled Protection for Critical Industrial Assets
Engineered from inception to master extreme operational environments, the MATICA ST500.1 operates with uncompromising reliability at pressures soaring up to 40 bar and temperatures reaching a formidable +400°C. It stands as the primary guardian of your vital capital equipment—from massive paper machine drying cylinders and hydraulic press units to intricate steam jacket piping systems and industrial finishing irons. By ensuring the instantaneous and continuous evacuation of condensate and non-condensable gases, it proactively prevents destructive water hammer phenomena, shields downstream machinery from thermal shock and corrosion, and dramatically reduces overall plant energy costs by maximizing the usable heat content of your generated steam.
Unmatched Engineering for Uncompromising Performance
The legendary reliability of the MATICA ST500.1 is born from its meticulously calculated design philosophy and stringent selection of premium materials. Its robust construction is tailored explicitly for the harsh, unrelenting realities of continuous industrial steam systems.
Innovative Three-Drain Valve Seat Architecture

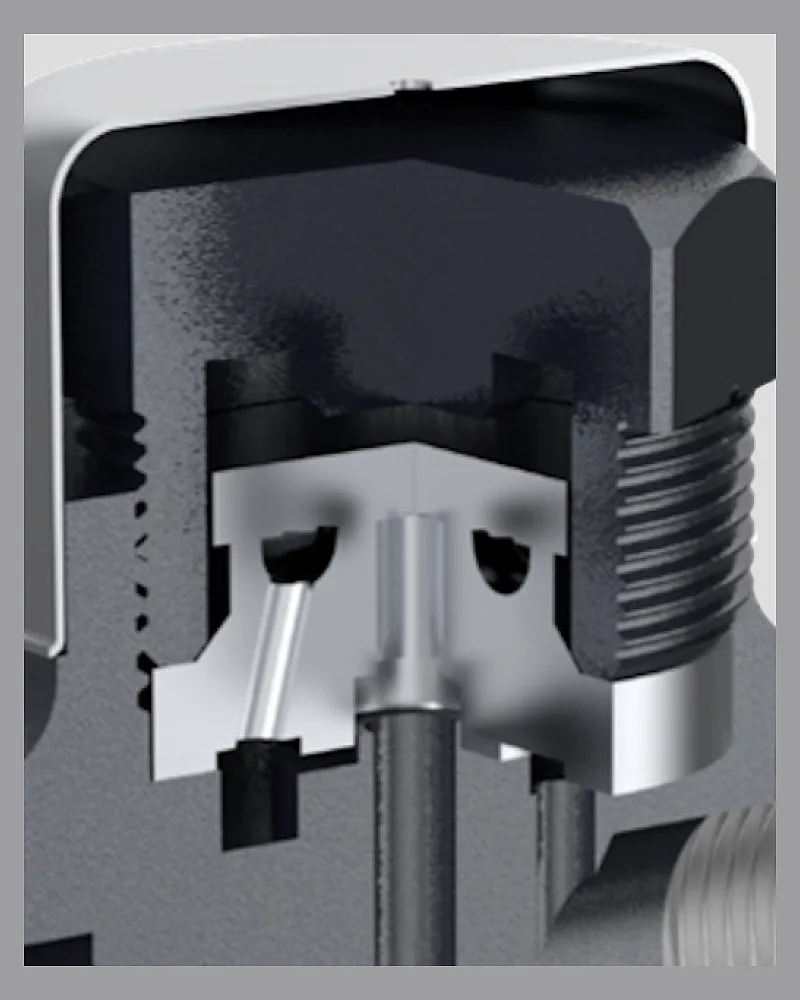

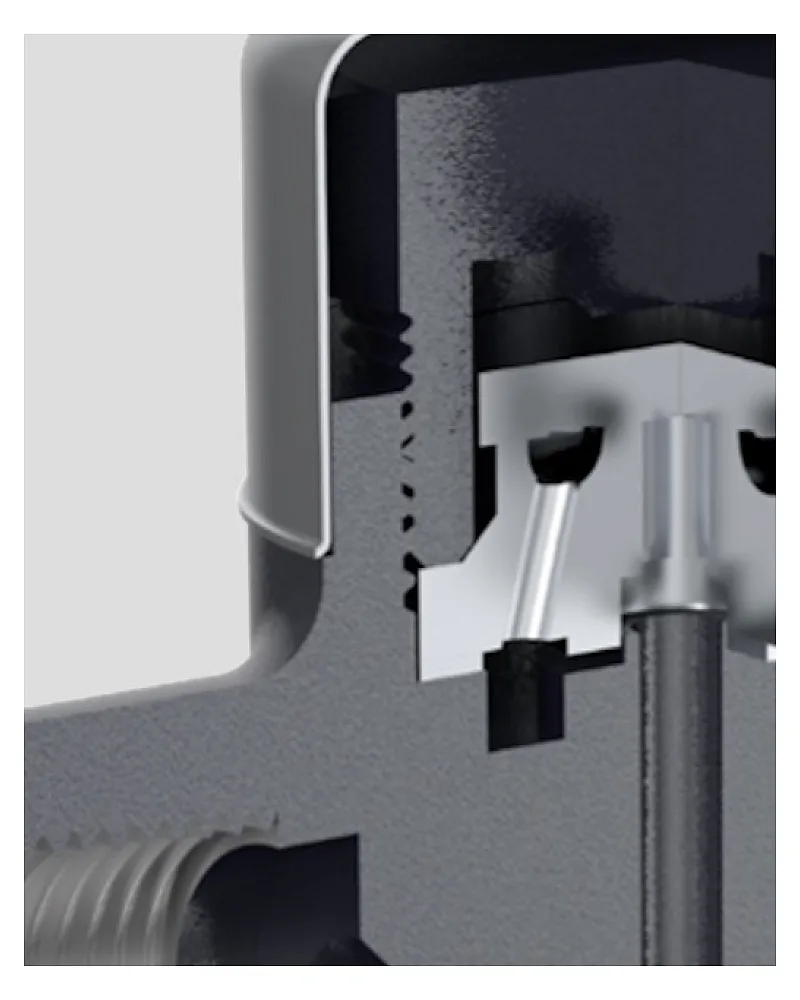

At the core of its operational excellence lies the innovative, patented three-drain valve seat design. This advanced geometric structure critically minimizes valve disc offset during the dynamic operating cycle, ensuring a perfectly aligned and consistent metal-to-metal seal with every actuation. This engineering feat translates directly to minimized mechanical wear, exponentially extended service life, and sustained peak thermodynamic efficiency over tens of thousands of operating hours, decisively outperforming conventional single-orifice trap designs.
Precision-Ground Sealing Surfaces
In steam trap performance, precision is paramount. The ST500.1 features a precision-ground disc achieving a surface roughness of less than 0.1Ra and a flatness measured under 2 microns. This mirror-like finish guarantees a perfect, leak-tight seal between the disc and seat, virtually eliminating wasteful live steam loss—a critical factor in achieving optimal energy savings and a rapid return on investment. Furthermore, the integrated built-in stainless steel filter acts as a proactive defense mechanism. It effectively prevents internal malfunction and abrasive wear caused by pipeline scale, welding slag, and other debris, ensuring uninterrupted operation and significantly reducing costly maintenance interventions and downtime.
Constructed from Premium Materials for Maximum Service Life
Every integral component of the ST500.1 is selected based on supreme mechanical strength and exceptional corrosion resistance. The main body and cap are available in robust Carbon Steel A105 forging for general service or corrosion-resistant Stainless Steel F304/F316 for aggressive environments, ensuring suitability for a vast spectrum of industrial applications. The critical sealing pair—the seat and disc—are precision-crafted from hardened AISI 440C Stainless Steel (A276), offering exceptional resistance to wear, cavitation, and erosion under sustained high-velocity flow conditions. The static seal is secured by a cap gasket composed of 304/316 Stainless Steel with a resilient Graphite filler, ensuring a reliable and durable seal capable of withstanding the full spectrum of extreme system temperatures and pressures.
Technical Specifications for Demanding Applications

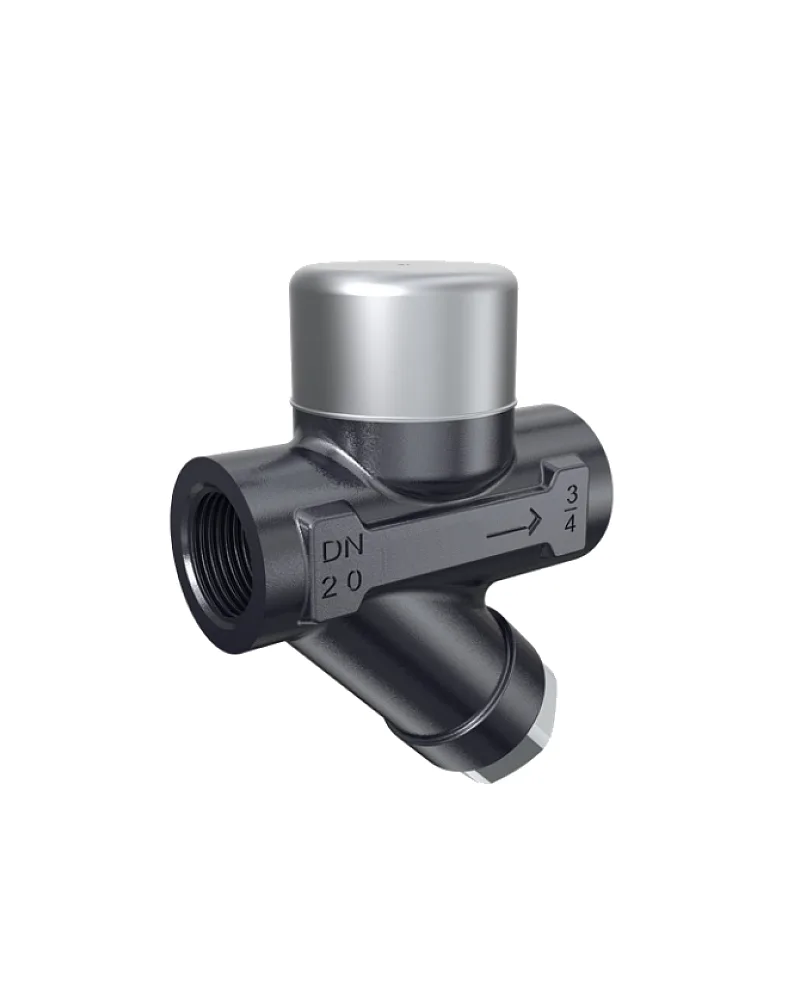

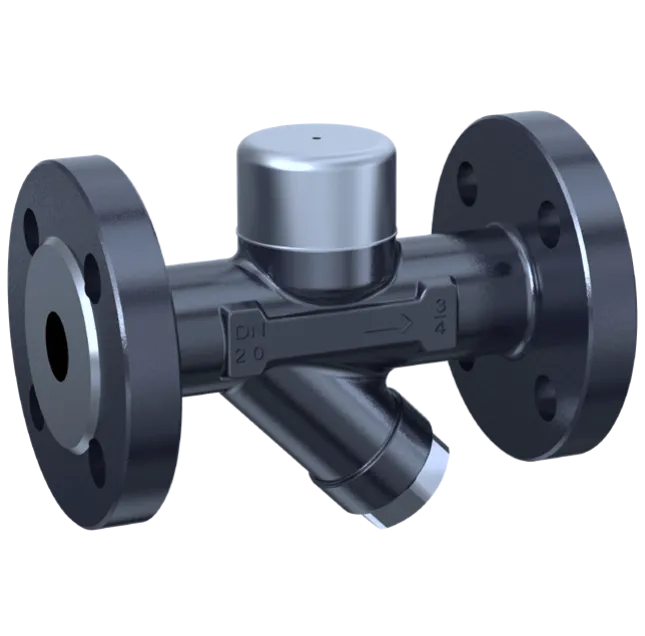

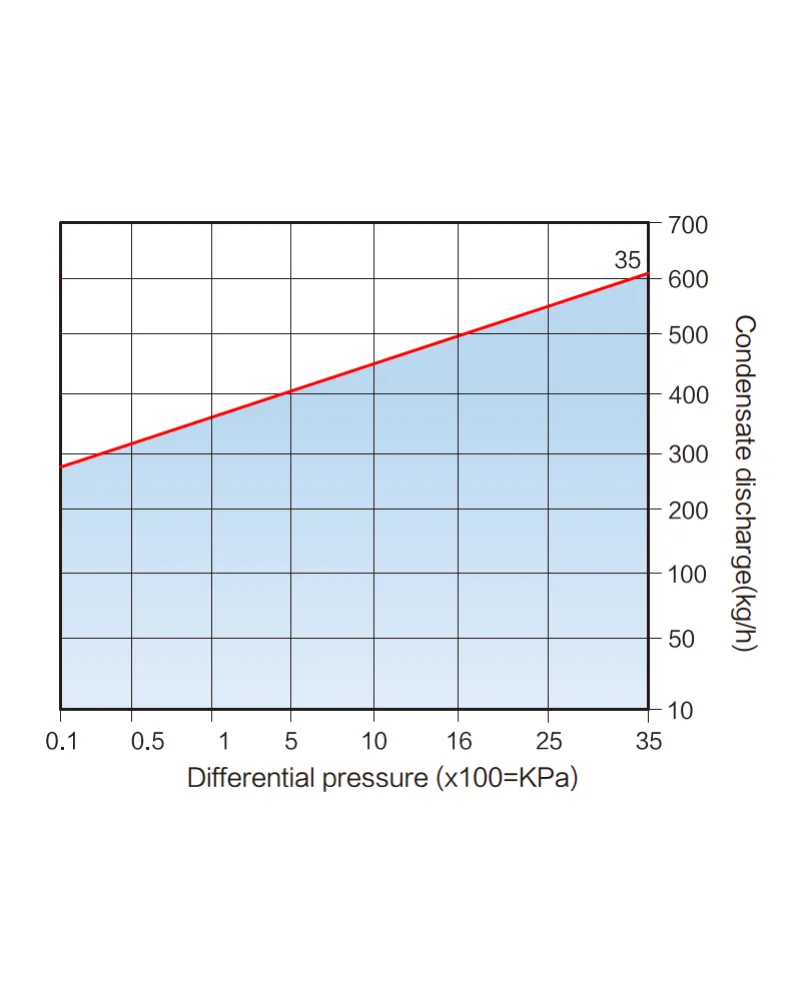

The MATICA ST500.1 series is manufactured in a comprehensive range of nominal sizes from DN 15 to DN 25 mm, with a standard pressure rating of PN40 (Class 150). It is engineered to handle a maximum differential pressure (ΔPMX) of 35 bar with a condensate discharge capacity of up to 600 kg/h, delivering power and reliability sufficient for the largest-scale industrial demands. Connection versatility is assured with fully flexible end preparations, including threaded (NPT/BSP), socket weld, and flanged (RF, FF) ends, guaranteeing seamless and secure integration into any existing or new pipeline configuration.
Master System Pressure. Eliminate Energy Waste.
Selecting the optimal steam trap is a critical strategic decision impacting your plant's profitability, carbon footprint, and operational safety. The MATICA ST500.1 represents the unequivocal pinnacle of thermodynamic steam trap technology, engineered not merely to function, but to endure, perform, and generate savings year after year.
- Slash Energy Consumption: The precision seal prevents costly live steam leakage, directly lowering fuel consumption and utility bills.
- Protect Capital Equipment Investment: Ensure dry, high-quality steam delivery to processes, extending the operational lifespan of turbines, heat exchangers, autoclaves, and distribution piping.
- Reduce Maintenance Overheads: Durable construction, wear-resistant materials, and the integrated protective filter collectively lead to fewer failures, reduced spare part consumption, and minimized production downtime.
- Ensure Consistent Process Quality: Reliable and immediate condensate removal maintains optimal temperature and heat transfer rates, crucial for product quality and throughput.
As the official and exclusive dealer for MATICA in Turkey, LINDER provides significantly more than just a product transaction. We deliver complete lifecycle support, including in-depth engineering consultation, expert selection and sizing guidance, local inventory, and reliable after-sales service. Our technical team possesses a deep understanding of the unique challenges and standards within the Turkish industrial landscape and is committed to helping you optimize your steam system for peak performance and efficiency.
