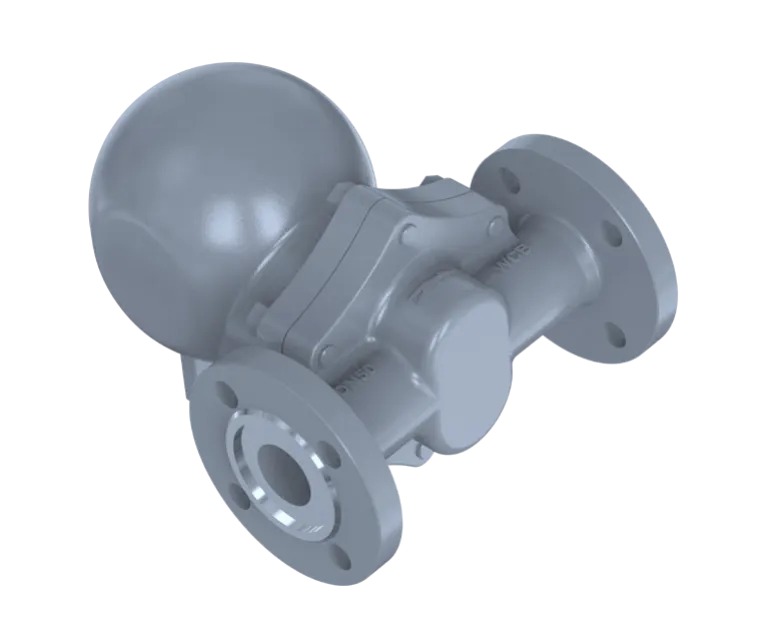

Dominate Demanding Processes with Unmatched Efficiency: The MATICA ST400.3 High-Capacity Ball Float Steam Trap
Is your operation plagued by inefficient steam systems, energy waste, or the constant threat of water hammer in high-pressure environments? For critical applications where performance is non-negotiable, you need a solution engineered for extremes. LINDER, as the official dealer of MATICA on the territory of Turkey, delivers precisely that: the revolutionary MATICA ST400.3 series High-Capacity Ball Float Steam Trap. This is not merely a component; it is a definitive engineering solution for achieving peak thermal efficiency, unparalleled reliability, and operational security in your most demanding processes.

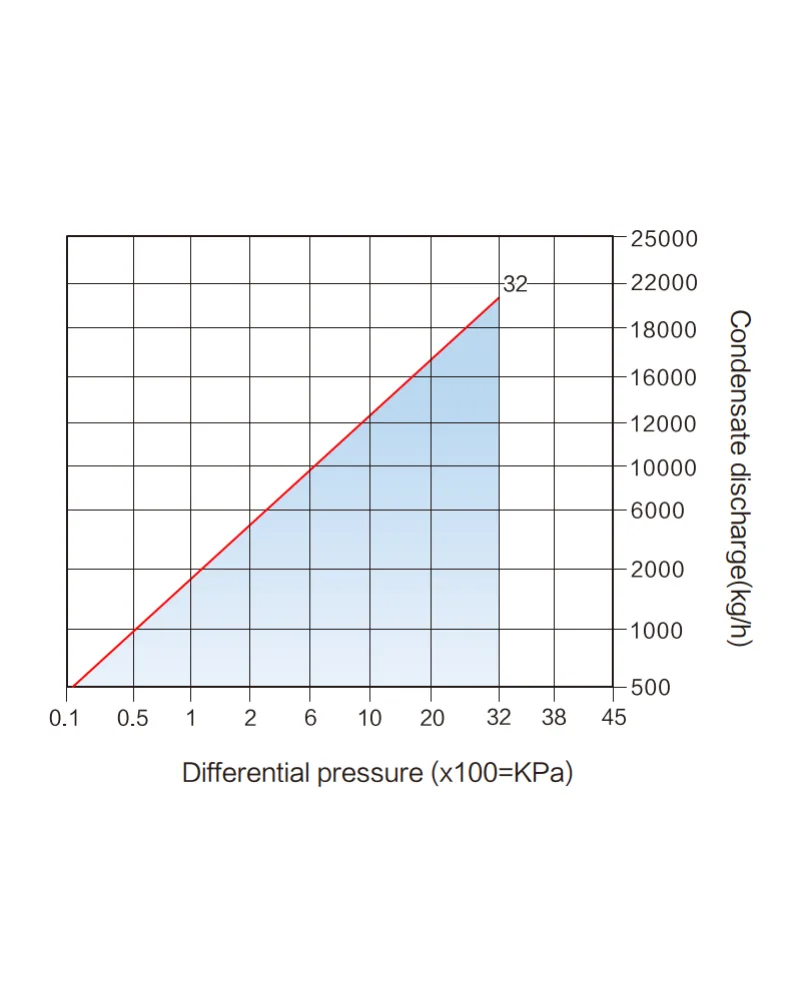

Designed to withstand the relentless conditions of power generation, industrial heating, and large-scale processing plants, the ST400.3 stands as a benchmark in condensate drainage technology. It aggressively and continuously removes condensate at rates of up to 22,000 kg/h, preventing the energy losses associated with saturated steam lines and eliminating the dangerous risk of water hammer—even under extreme pressures up to 64 bar (PN64) and scorching temperatures reaching 400°C. When system integrity and energy conservation are critical, trust the robust performance of the MATICA ST400.3, supplied and supported exclusively in Turkey by LINDER.
Engineered for Your Most Critical Applications
The MATICA ST400.3 is the optimal choice for large-volume, high-capacity equipment where rapid and efficient condensate removal is paramount. Its superior design makes it the ideal solution for:
Heat Exchangers & Heating Batteries
Ensures maximum heat transfer efficiency by preventing condensate logging.
Industrial Tanks, Pans & Reactors
Maintains consistent process temperature and supports uniform heating.
Drying Cylinders & Industrial Ovens
Guarantees fast, even drying and manufacturing consistency by swiftly evacuating condensate.
High-Pressure Main Drip Legs & Turbine Drainage
Provides reliable, high-capacity drainage for critical system protection.
Uncompromising Characteristics for Extreme Duty

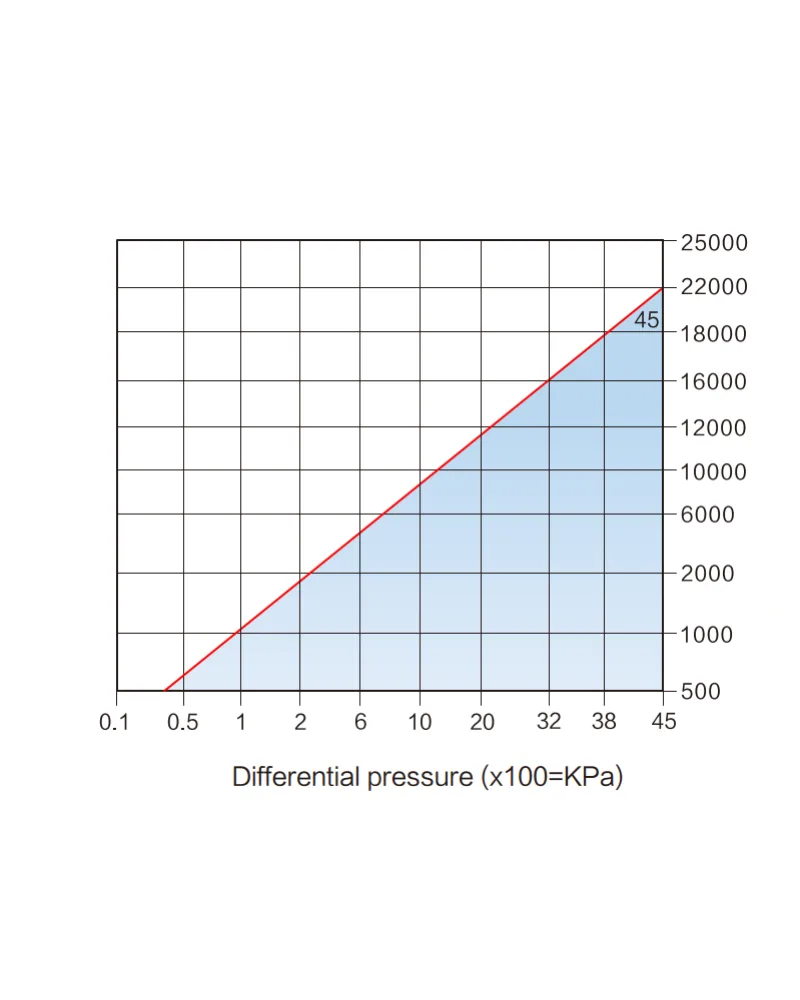

Built to the highest standards, the ST400.3 series is available in nominal sizes from DN40 to DN80 mm, with a maximum differential pressure (ΔPMX) capability of 45 bar. Its connection is via robust flanged ends, and it is constructed from forged carbon steel (WCB) or superior stainless steel (CF8/CF8M) to ensure longevity against corrosion and erosion. This trap is a powerhouse, delivering a condensate capacity three to four times greater than conventional single-seat models, all within a remarkably compact and robust housing.
Innovative Details That Deliver Superior Performance
The MATICA ST400.3’s dominance is rooted in its patented and innovative internal features, each designed to solve a specific operational challenge:

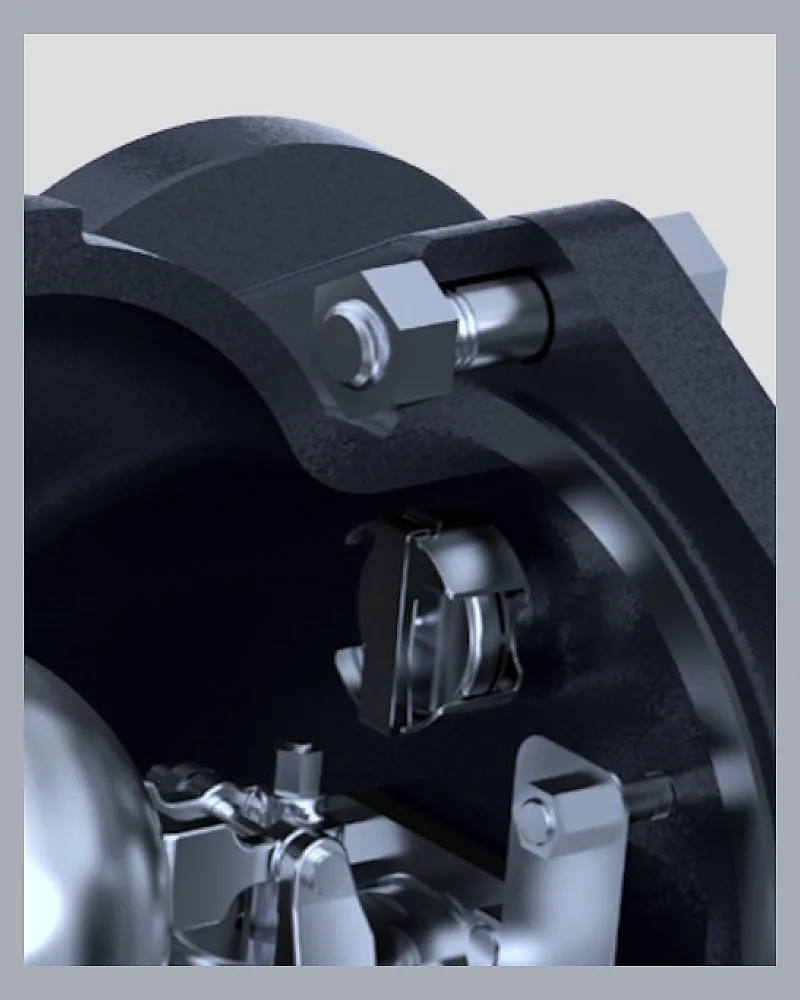

Built-In, Serviceable Air Vent Assembly
Equipped with an automatic thermostatic or bimetallic air vent, the ST400.3 ensures rapid evacuation of air and condensate during cold start-ups. This feature dramatically boosts initial discharge capacity, enabling faster equipment heat-up, reducing thermal stress, and improving overall system responsiveness from the moment operation begins.
Proprietary Inlet Runner Design with Baffle
A dedicated stainless steel baffle integrated into the valve cavity’s inlet port acts as a sophisticated damper. This ingenious design effectively absorbs and mitigates the destructive forces of water hammer and system vibration, shielding the trap’s precise internal mechanism from damage and significantly extending its service life.

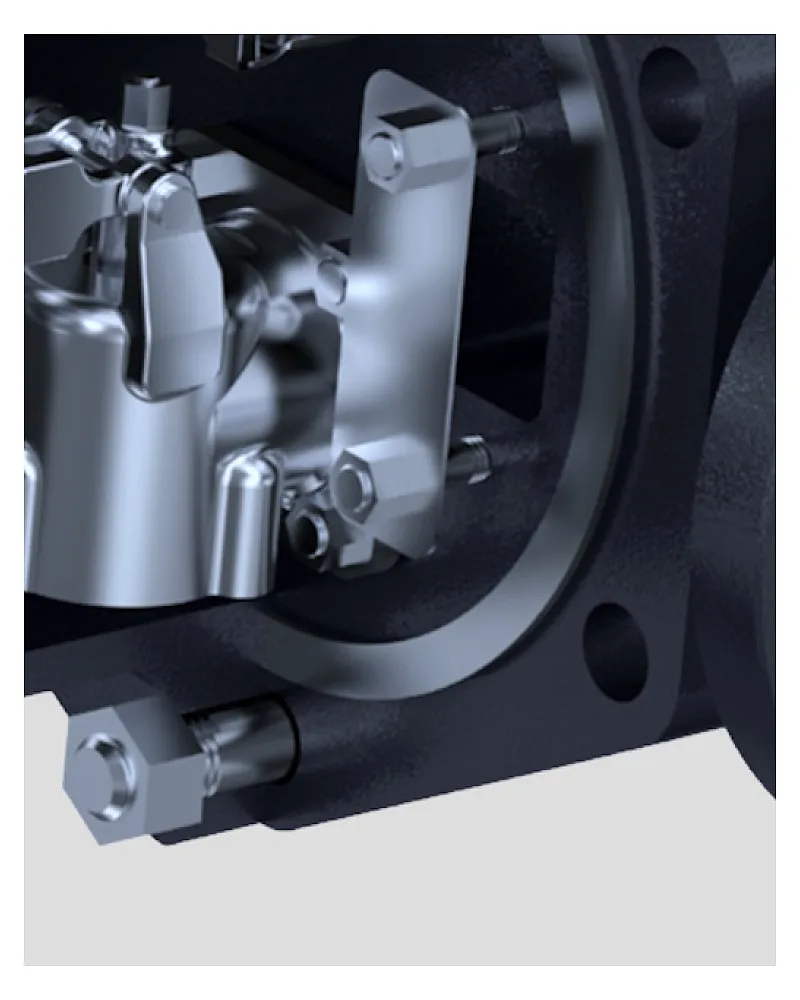

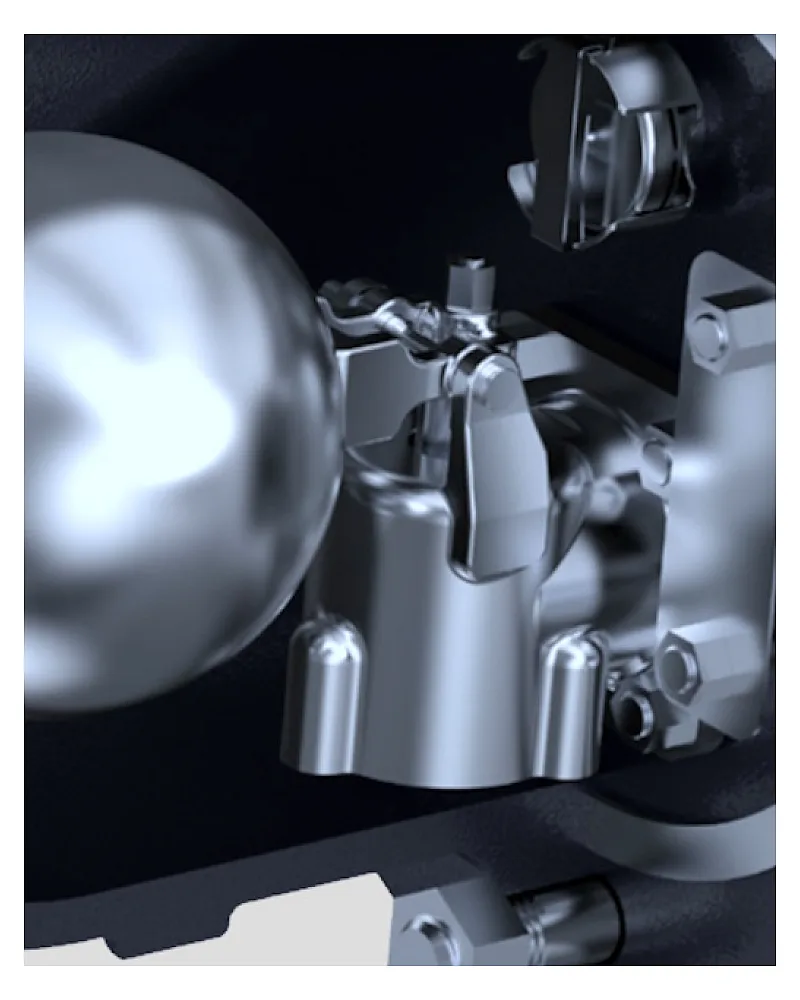

Balanced Double-Seat Valve Technology
This is the heart of its high-capacity performance. The innovative balanced dual-seat design dramatically reduces the opening force required. This allows for a more compact and responsive valve that opens fully and reliably under high pressure, enabling the exceptional 22,000 kg/h discharge capacity that sets this series apart from all competitors.

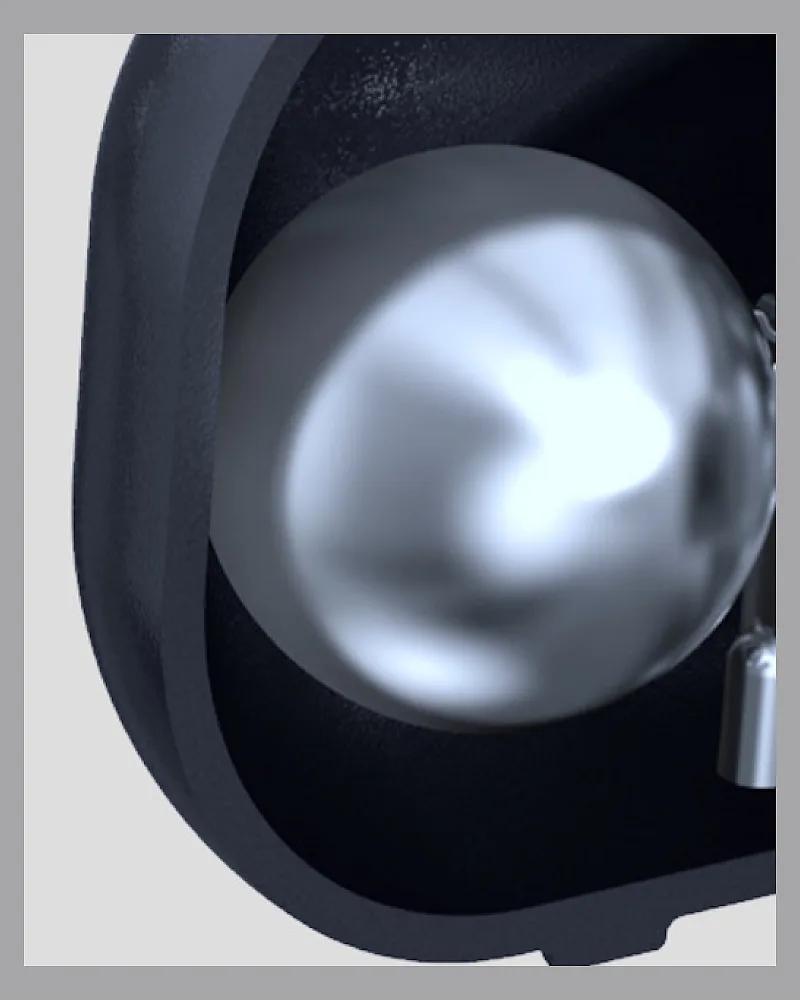

High-Strength, Welded Stainless Steel Floats
Durability is guaranteed with floats crafted from robust stainless steel (A240 304/316) using precision welding techniques. This construction provides exceptional resistance to both sudden hydraulic shock and long-term corrosive attack, ensuring the float mechanism remains reliable and leak-free over countless cycles.
Premium Material Specification for Maximum Durability
Every material in the MATICA ST400.3 is selected for extreme service:
Valve Body & Cover: WCB (Carbon Steel), CF8 (304 SS), CF8M (316 SS)
Float Assembly: Features seats and discs made from hardened stainless steel (A276 420/440C) for wear resistance, with floats, brackets, and gaskets in A240 304 or 316 stainless steel.
Air Vent Assembly: Utilizes corrosion-resistant seats, discs, and a durable fluid sac (A240 304/316) with a high-performance Alloy 902 membrane for consistent and reliable air venting.
Critical Internal Components: The inlet baffle is made from A240 304/316 SS, and the cover gasket is a robust combination of 304/316 stainless steel and graphite, ensuring a perfect seal under thermal cycling.
Choose the Official Source: Choose LINDER in Turkey
For industrial enterprises across Turkey—from massive power plants and petrochemical refineries to paper mills and food processing facilities—the partnership between MATICA’s cutting-edge engineering and LINDER’s local expertise is your ultimate advantage. As the official Turkish dealer, LINDER provides not just the superior MATICA ST400.3 High-Capacity Steam Trap, but also comprehensive technical support, precise sizing calculations, engineering consultation, and reliable after-sales service.
Stop compromising on your steam system’s efficiency and safety. Contact LINDER today to discover how the MATICA ST400.3 series can transform your demanding processes, reduce your energy costs, and deliver unmatched reliability. Let our experts provide you with the definitive solution for high-capacity condensate drainage.
