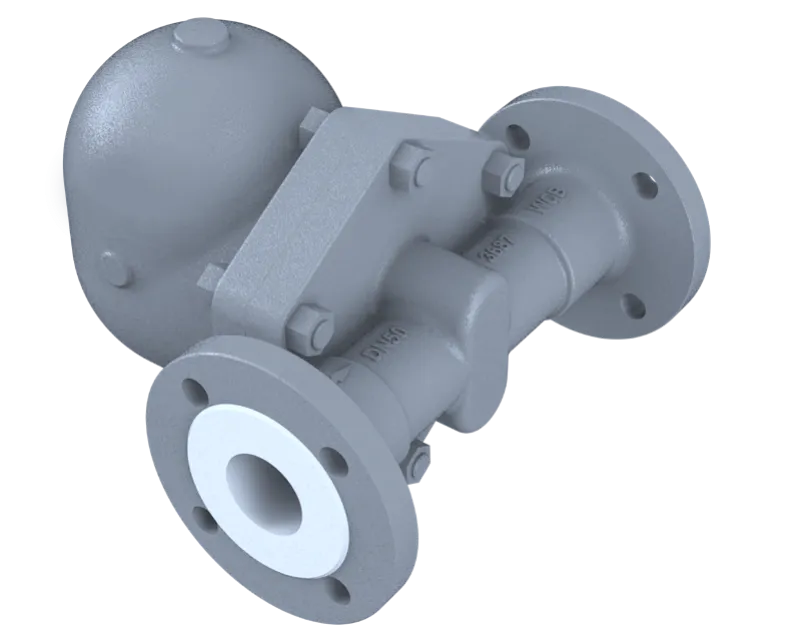

Maximize Steam System Efficiency & Protect Critical Assets with the MATICA ST400.1 High-Capacity Ball Float Steam Trap
In the demanding landscape of industrial steam systems across Turkey, achieving peak efficiency, unwavering reliability, and ironclad asset protection is paramount for maintaining competitive advantage. Inefficient condensate removal silently erodes profitability through wasted energy, compromised process stability, dangerous water hammer, and accelerated equipment degradation. For forward-thinking plant managers, project engineers, and operational leaders seeking a definitive solution, success hinges on partnering with authentic technology leaders. LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ stands as the official authorized dealer and strategic partner for MATICA on the territory of Turkey, delivering engineered excellence and expert support. We are proud to introduce the cornerstone of modern steam management: the MATICA ST400.1 Series High-Capacity Ball Float Steam Trap, a masterpiece of precision engineering for extreme-duty applications.
Transcending the limitations of conventional traps, the MATICA ST400.1 is a system-critical component meticulously designed to optimize thermal dynamics and safeguard capital-intensive infrastructure. Built to endure the most severe operational environments, this trap guarantees continuous, high-volume condensate discharge under staggering pressures up to 40 bar and blistering temperatures reaching 400°C. Its instantaneous response ensures heat transfer surfaces remain at maximum efficiency, driving substantial reductions in fuel consumption and guaranteeing precise, uniform process temperatures. Furthermore, its robust architecture serves as a vital protective barrier, mitigating the risks of destructive water hammer and shielding pipelines, valves, and pressure vessels from catastrophic stress-induced failures.
Unmatched Performance for Turkey's Most Critical Industrial Applications
The MATICA ST400.1 is engineered to excel as the reliable backbone in a diverse range of high-demand applications where condensate management is non-negotiable. As your dedicated MATICA partner in Turkey, LINDER recommends and supplies this superior series for optimal performance in:
Heat Exchangers & Process Heating Systems
Ensures complete utilization of heating surfaces, maximizing thermal transfer rates and ensuring consistent output in shell-and-tube, plate, and air heater configurations.
Industrial Processing Vessels & Cooking Systems
Maintains exact temperature profiles within process tanks, reactors, autoclaves, and cooking pans, which is crucial for product quality, safety, and batch consistency in food, chemical, and pharmaceutical production.
Drying & Curing Infrastructure
Promotes uniform heat distribution and efficient moisture expulsion in paper machine dryers, textile dryers, industrial ovens, and coating lines, enhancing product quality and reducing cycle times.
High-Pressure Steam Distribution Networks
Provides fail-safe drainage for steam mains, drip legs, and separators, preventing corrosion, erosion, and the formation of destructive water slugs in the distribution system.
Engineering Superiority: Deconstructing the ST400.1 Series Advantage
The dominance of the MATICA ST400.1 is rooted in its innovative design philosophy, which translates into tangible benefits of unparalleled capacity, durability, and operational savings.

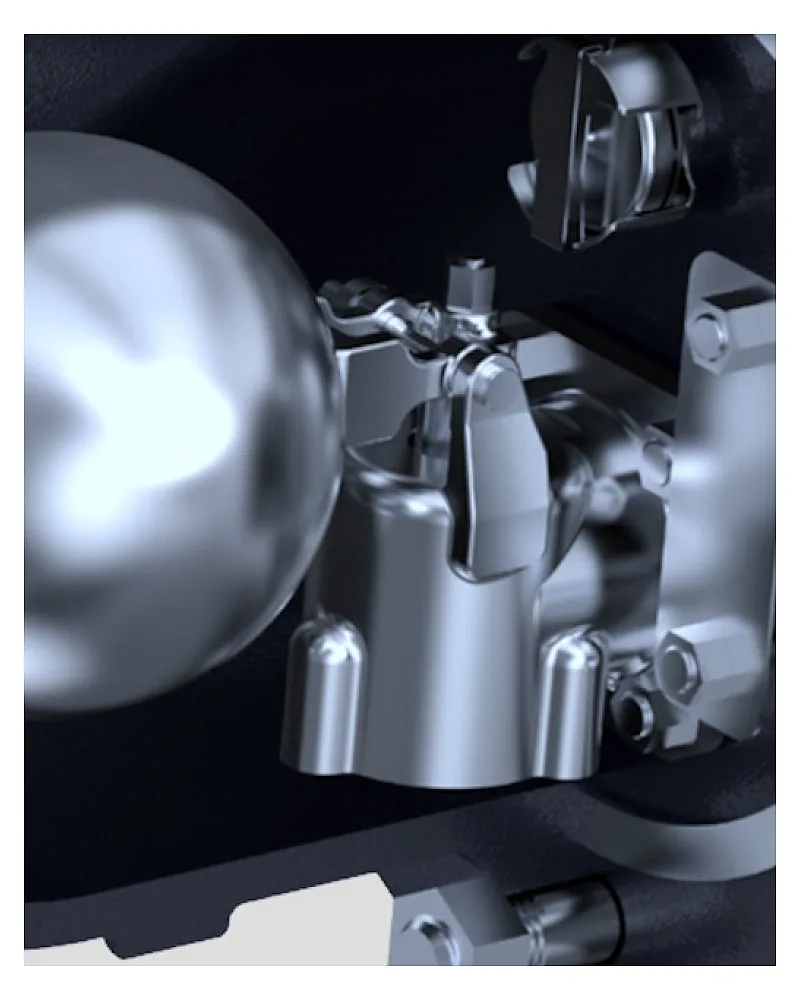

1. Pioneering Balanced Double-Seat Valve Mechanism
This revolutionary design departs from obsolete single-seat principles. The balanced dual-seat configuration intelligently neutralizes pressure forces, drastically reducing the energy required to open the discharge valve. The groundbreaking outcome is a remarkably compact trap delivering a condensate capacity 3 to 4 times greater than traditional counterparts of similar size, allowing for optimized space utilization and handling of higher loads with superior efficiency.

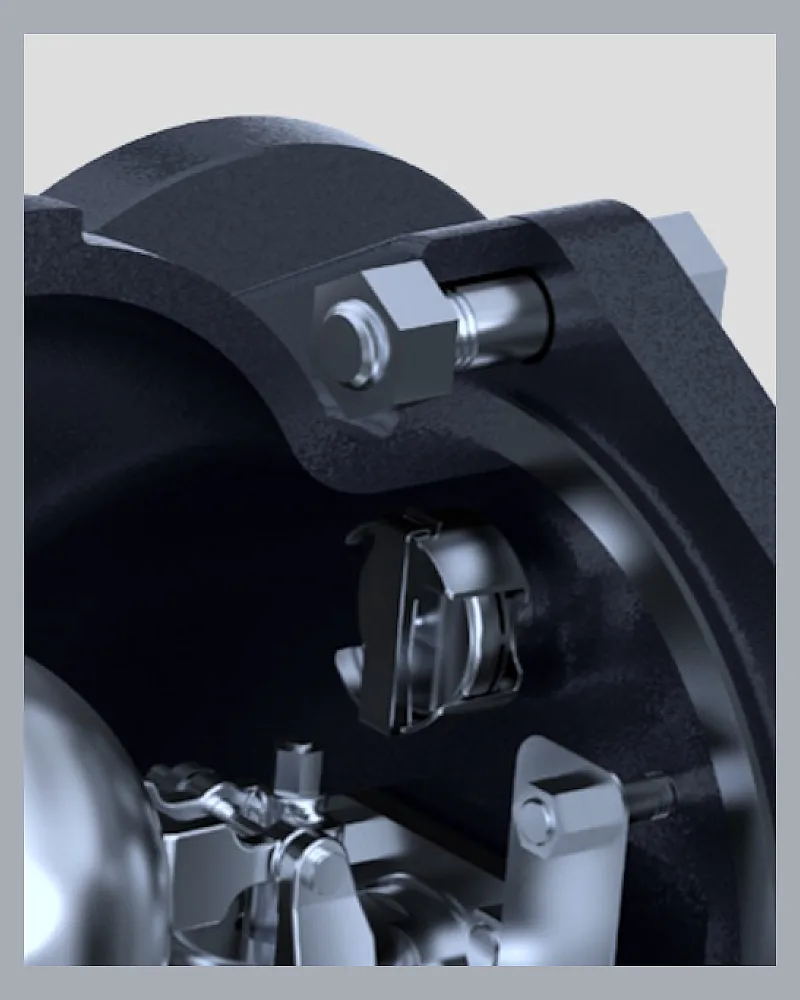

2. Integrated, Serviceable Air Vent for Optimal Start-Up
System start-ups are critical vulnerability points. The ST400.1 features a built-in, field-serviceable air vent assembly (thermostatic or bimetallic). This vent rapidly purges air and non-condensable gases during cold start-up, dramatically improving heat-up times, preventing air binding, and enhancing the trap's effective discharge capacity from the moment of activation.

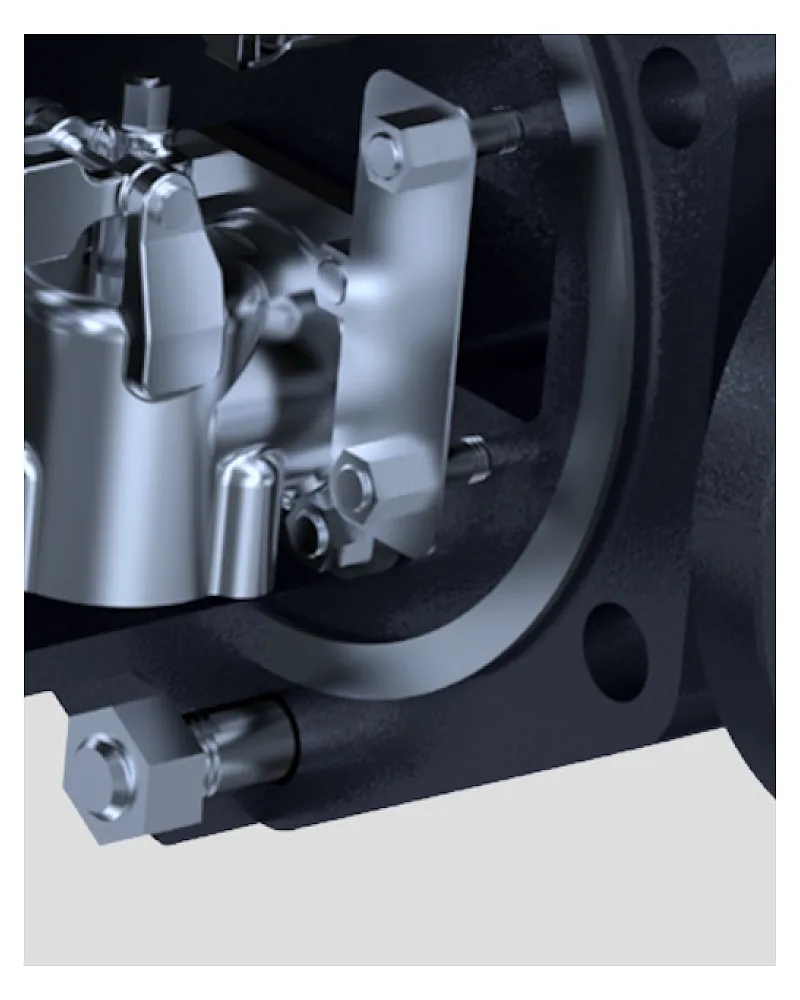

3. Inlet Runner with Advanced Energy Dampening
To combat the endemic challenges of water hammer and pipeline vibration, MATICA integrates a dedicated stainless steel inlet baffle. This component acts as a hydraulic dampener, absorbing destructive energy pulses and protecting the trap's精密 internal mechanism from premature wear, thereby ensuring long-term operational integrity.

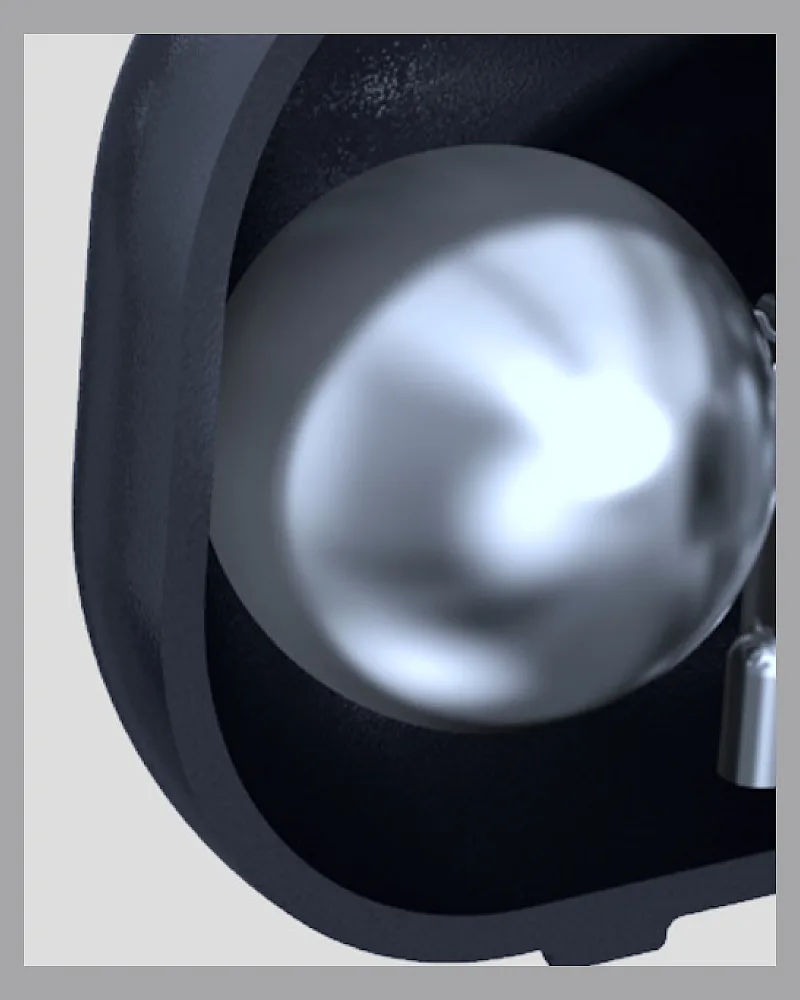

4. High-Integrity Welded Stainless Steel Floats
The core sensing element features high-grade stainless steel floats constructed with precision welding. This ensures exceptional resilience against hydraulic shock, corrosion from aggressive condensate, and mechanical fatigue, guaranteeing accurate level control and reliable operation over an extended service lifecycle.
Technical Specifications & Premium Material Architecture

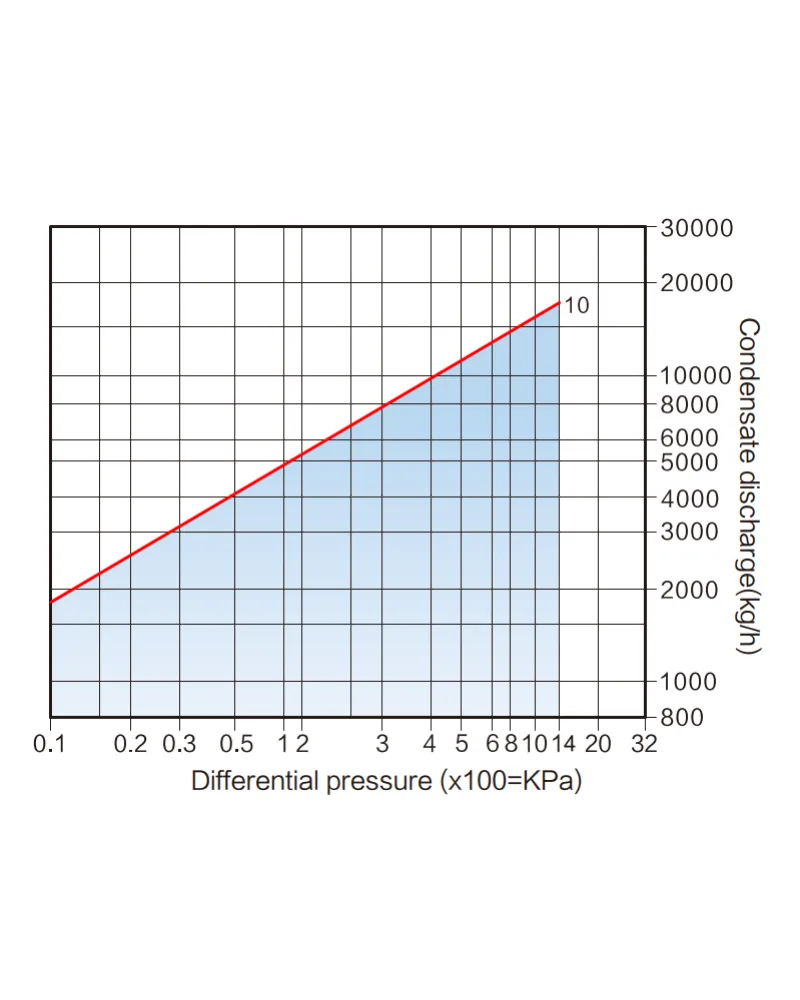

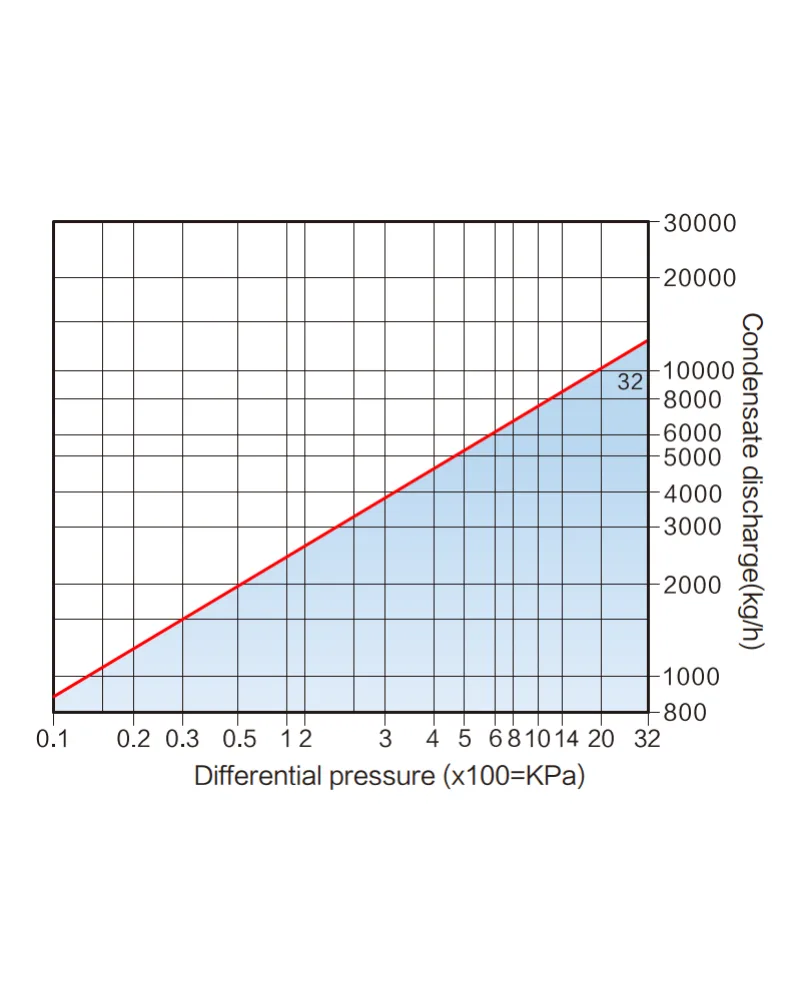

As the official conduit for MATICA technology in Turkey, LINDER provides complete technical transparency. The ST400.1 series is available in nominal sizes DN32 to DN100, with comprehensive pressure ratings (PN16, PN25, PN40, Class 150, Class 300). It handles differential pressures up to ΔP 32 bar and boasts a maximum discharge capacity of 18,900 kg/h.
The commitment to longevity is embodied in its material selection: the body and cover are forged from Carbon Steel (WCB) or Stainless Steel (CF8/CF8M - 304/316). Internal components—seats, discs, and the float assembly—are precision-machined from corrosion-resistant steels like A276 420, 440C, and A240 304/316. Critical thermal elements utilize specialized materials such as Alloy 902, ensuring consistent performance under the most aggressive conditions.
Strategic Partnership: Why Source MATICA ST400.1 Through LINDER in Turkey?
Selecting LINDER as your MATICA partner extends beyond procurement; it is an investment in a holistic performance solution backed by local expertise.
Authenticity Guaranteed: We supply only genuine MATICA products, accompanied by full certification and access to original spare parts, ensuring system integrity and warranty compliance.
Local Engineering Expertise: Our specialist team in Turkey offers application-specific consultation, precise sizing support, and dedicated after-sales service, ensuring optimal integration into your unique steam system.
Reliable National Supply Chain: We guarantee timely delivery and seamless logistics support for projects anywhere within Turkey, minimizing downtime and keeping your projects on schedule.
Optimized Total Cost of Ownership: The ST400.1's superior energy efficiency and legendary durability translate directly into lower operational expenditures, reduced maintenance costs, and an exceptional return on investment.
Do not let an inefficient steam system compromise your productivity and safety. Contact LINDER today to schedule a technical consultation with our engineering specialists. Discover how the high-capacity, ultra-reliable MATICA ST400.1 Ball Float Steam Traps can transform your operations, unlocking new frontiers of efficiency, protection, and profitability.
