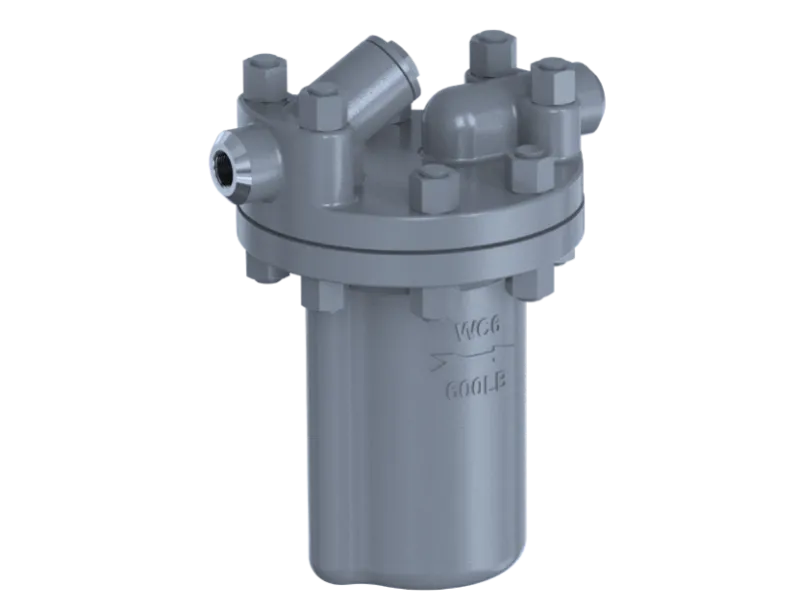

Engineered for Extreme Performance: The MATICA ST100.9 Inverted Bucket Steam Trap – Your Ultimate Solution for High-Pressure Efficiency
In the demanding landscape of industrial steam systems, where pressure peaks, temperature soars, and efficiency is paramount, the choice of a steam trap is not merely a procurement decision—it is a critical investment in operational continuity, energy conservation, and bottom-line results. For Turkish industries seeking uncompromising reliability, LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ, as the official authorized dealer of MATICA on the territory of Turkey, introduces the definitive answer: the MATICA ST100.9 Series Horizontal Inverted Bucket Steam Trap. This is not just a component; it is a cornerstone of engineered resilience, designed to deliver Unmatched Reliability in Every Drop.
Beyond Standard Duty: The ST100.9 Redefines High-Pressure Condensate Management
The MATICA ST100.9 is engineered for scenarios where ordinary steam traps falter. It represents the pinnacle of inverted bucket technology, specifically optimized for superheated steam environments and applications with immense condensate loads. When your systems operate at the extremes—whether in power generation, heavy chemical processing, or high-temperature vulcanization—this trap provides the steadfast performance required to protect equipment, maximize heat transfer, and eliminate wasteful steam loss.
Why the MATICA ST100.9 Stands as the Superior Choice for Turkish Industry
As your dedicated MATICA partner in Turkey, LINDER provides more than just supply; we deliver a partnership backed by engineering expertise and a product built to exceptional standards.
Unrivaled Pressure & Capacity Performance

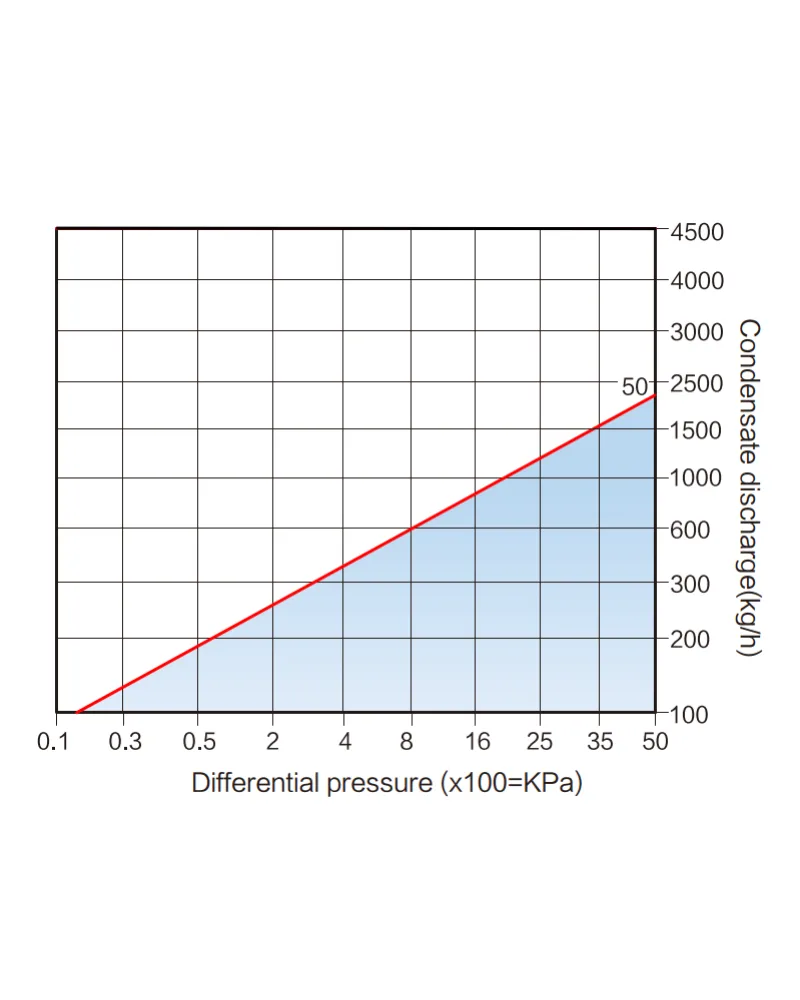

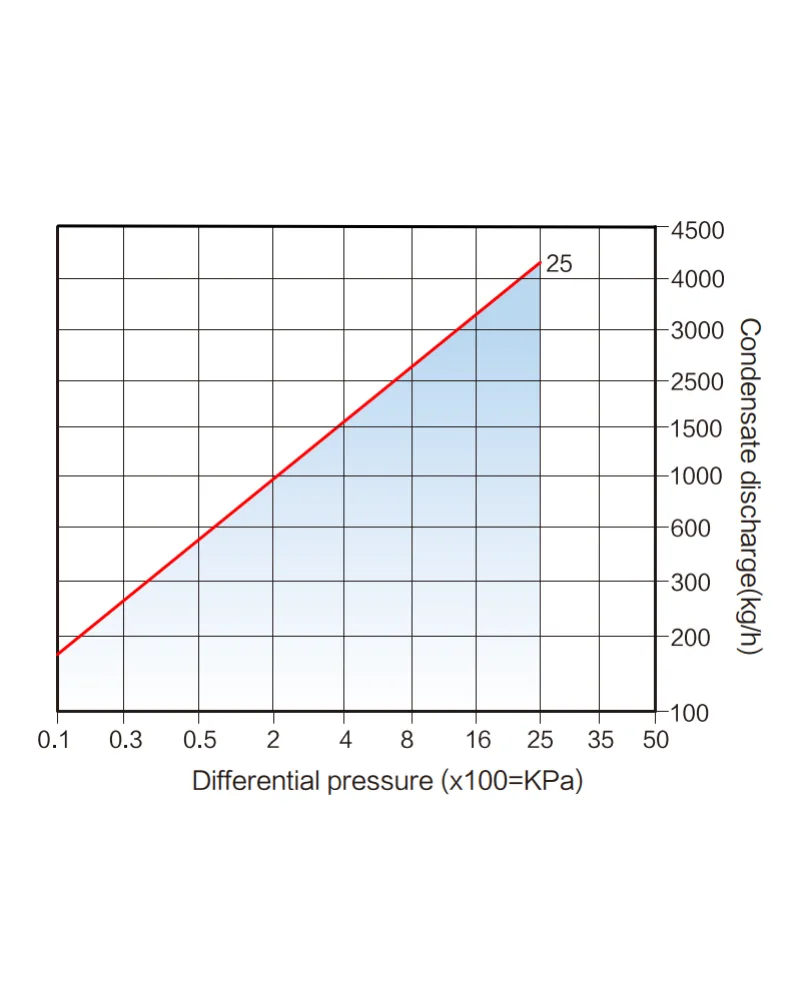

The ST100.9 series dominates high-pressure applications with a formidable pressure rating of up to PN160 (Class 900) and a differential pressure handling capability of up to ΔP 50 bar. With a massive discharge capacity of up to 4200 kg/h, it effortlessly manages large-volume condensate from major steam mains, heat exchangers, and fuel oil heaters, ensuring system responsiveness and preventing water hammer.
Legendary Durability & Wear Resistance
Constructed from premium materials like Alloy Steel (WC6) and Stainless Steel (CF8/CF8M, AISI 304/316), every component is selected for strength and corrosion resistance. The pilot-operated inverted bucket mechanism minimizes wear on the primary valve, leading to a dramatically extended service life even under continuous cycling and demanding conditions, reducing total cost of ownership.
Intelligent Air Venting Design

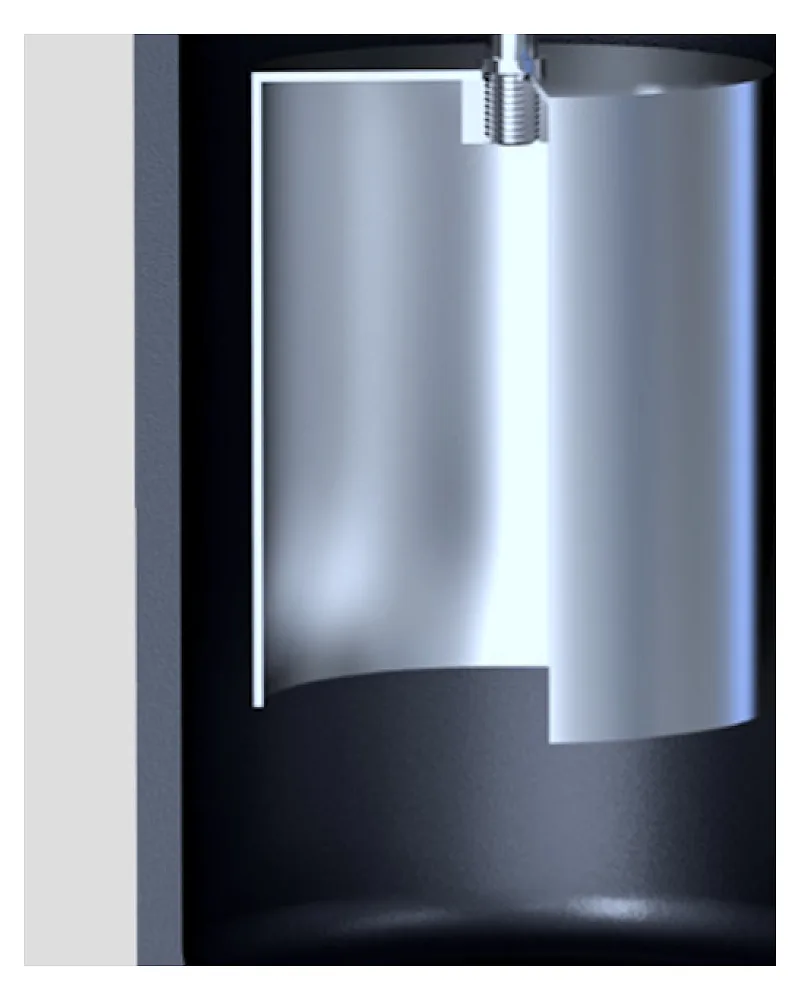

Efficiency begins with proper venting. The ST100.9 features an integrated air vent hole at the top of the bucket, allowing for the automatic and continuous purging of air and non-condensable gases. This ensures rapid steam system warm-up, prevents air binding, and guarantees optimal thermal efficiency from start-up through full operation.
Versatile for Critical Applications
This trap is the trusted solution for the heart of your operations. Its robust design makes it ideal for:
- Heat Exchangers & Heater Units
- Main Fuel Tank Heaters in power plants and marine applications
- High-Pressure Vulcanization Devices in rubber manufacturing
- Industrial Laundry Equipment
- Steam and Condensate Header Lines
- Any application involving superheated steam or heavy condensate loads.
Deep Dive into Engineering Excellence: The ST100.9 Construction

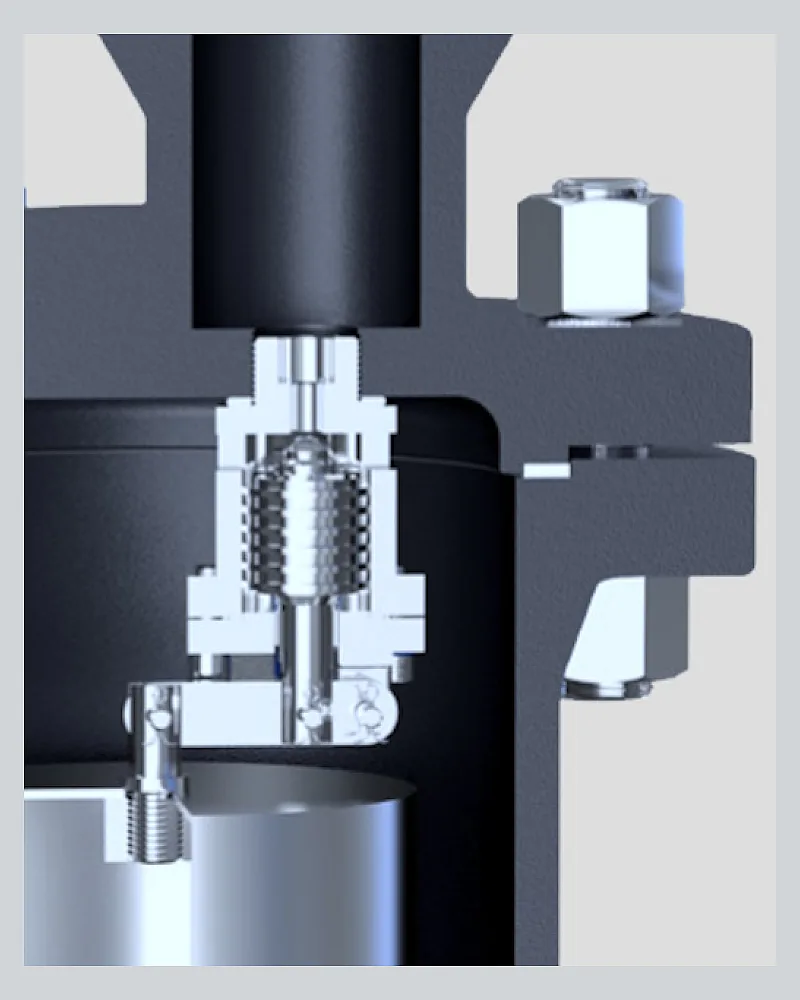

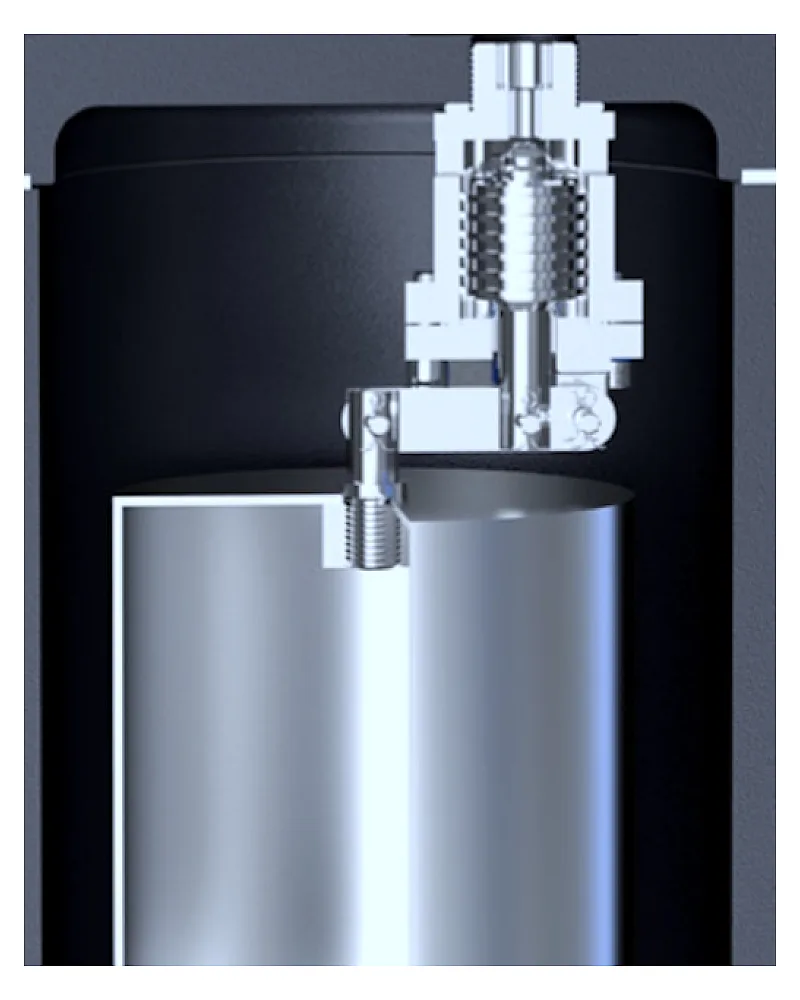

The superior performance of the MATICA ST100.9 is a direct result of its meticulous construction. The body (01) and cover (02), available in stainless steel or high-strength alloy steel, form a pressure-resistant housing. Critical sealing is ensured by a high-temperature expanded graphite gasket (03). The heart of the action lies in the condensate discharge valve (04) and check valve (05), crafted from hardened stainless steel AISI 420 for exceptional wear resistance. The precision inverted bucket (06) and integrated filter (07), made from AISI 304 or 316 stainless steel, complete a system built for longevity and reliable operation across sizes DN32 to DN50, with socket weld or flanged connections for secure installation.
Partner with LINDER – Your Gateway to MATICA Quality in Turkey
Choosing the MATICA ST100.9 through LINDER means more than acquiring a world-class steam trap. It means gaining a local partner with direct access to factory expertise, comprehensive technical support for selection and application engineering, and a guaranteed supply of genuine MATICA components. We understand the unique challenges of the Turkish industrial market and provide solutions that enhance productivity and energy efficiency.
Stop compromising on your steam system's integrity. Elevate your operations with the durability, capacity, and intelligent engineering of the MATICA ST100.9 Series Horizontal Inverted Bucket Steam Trap.
LİNDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ
Your Reliable Partner for MATICA in Turkey
