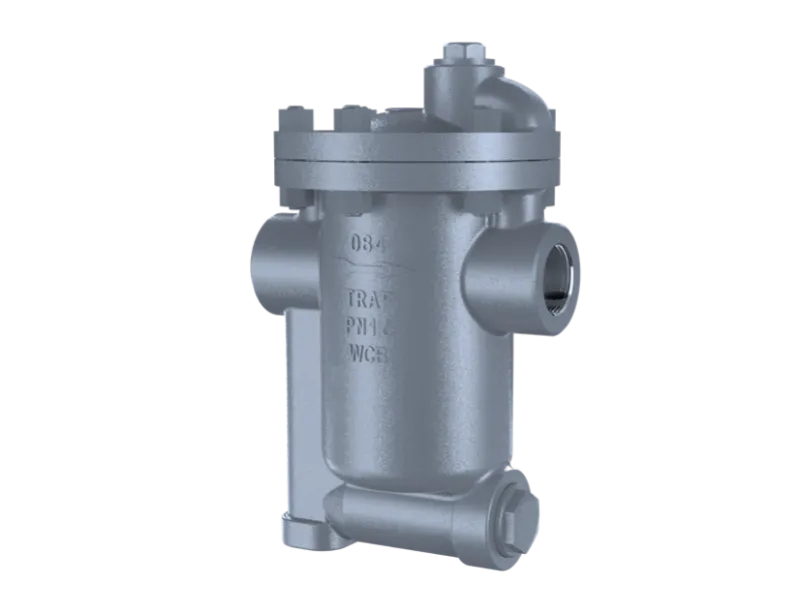

ST100.6 series by MATICA
ST100.6 series by MATICA
The Reliable Workhorse for Your Steam System.
LINDER, as an authorized dealer of MATICA, offers the ST100.6 Horizontal Inverted Bucket Steam Trap. This robust mechanical trap provides reliable and efficient drainage of condensate and non-condensable gases for virtually all types of steam equipment. Its simple, dependable inverted bucket mechanism ensures optimal steam system performance. Available sizes: DN40 to DN80, PN16/40.
Applications
Heat Exchangers, Heater Units, High Pressure Applications, Vulcanization Devices, Laundry Equipment, Main Fuel Tank Heaters, Steam and Condensate Lines
Characteristics ST100.6 series

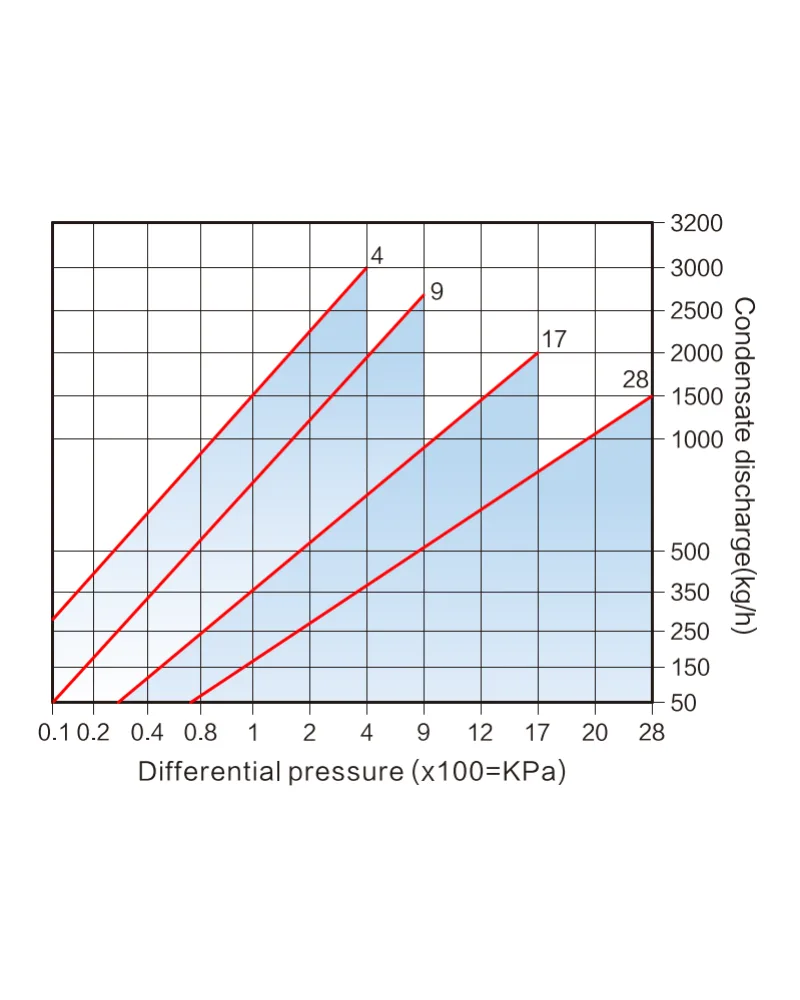

Discharge Capacities ST100.6 DN40-80. ΔPMX 4 bar, 9 bar, 17 bar, 28 bar.

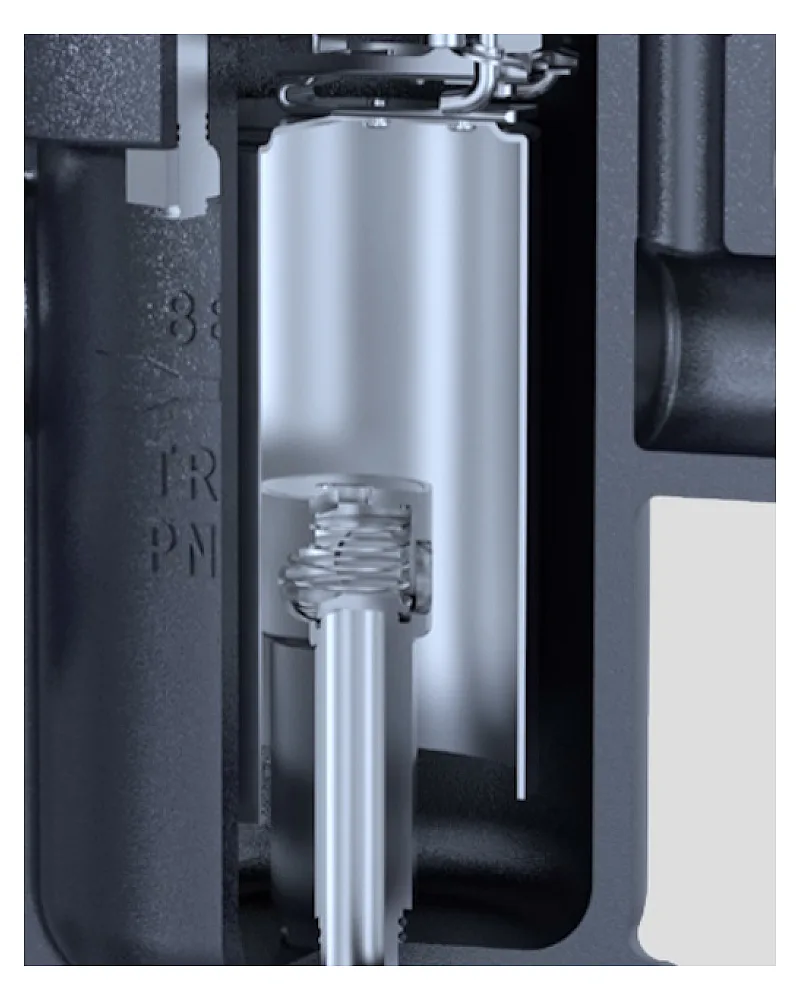

Wear-Resistant, Hardened Seals: The hardened spool and seat are designed for maximum durability and long service life.

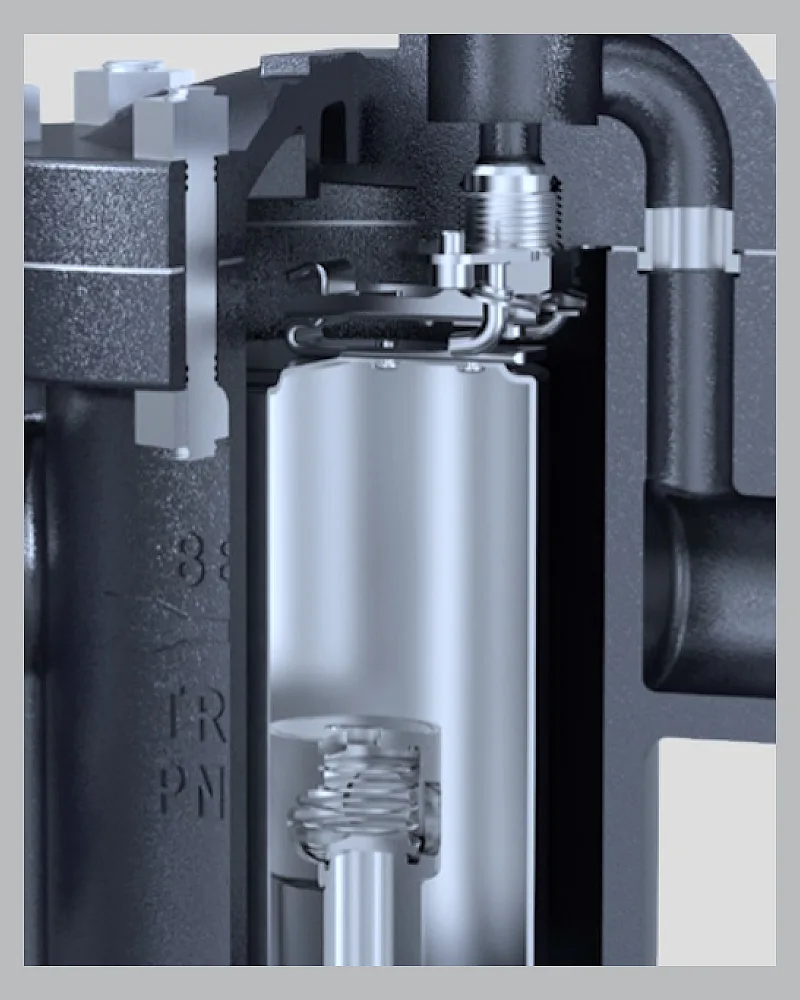

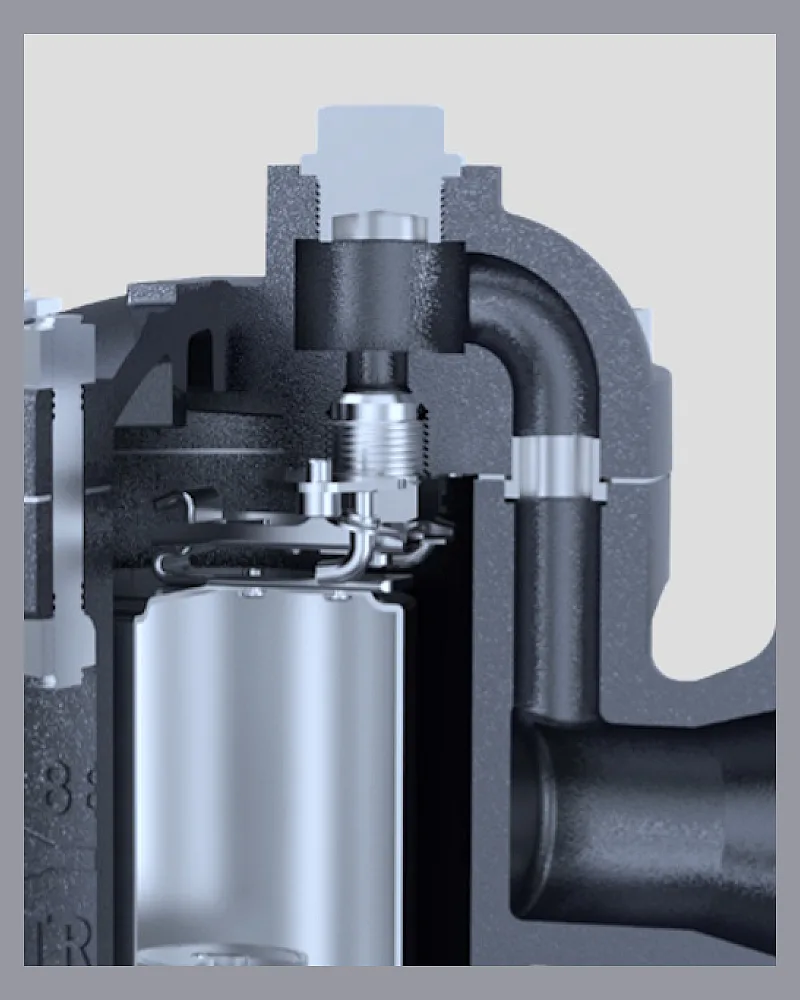

Integrated Air Vent Function: Allows for the automatic discharge of non-condensable gases (such as air) through the vent hole on the top of the bucket.
High Water Hammer Resistance: The lower open bucket-type construction provides significantly higher resistance to water hammer compared to float-type steam traps.

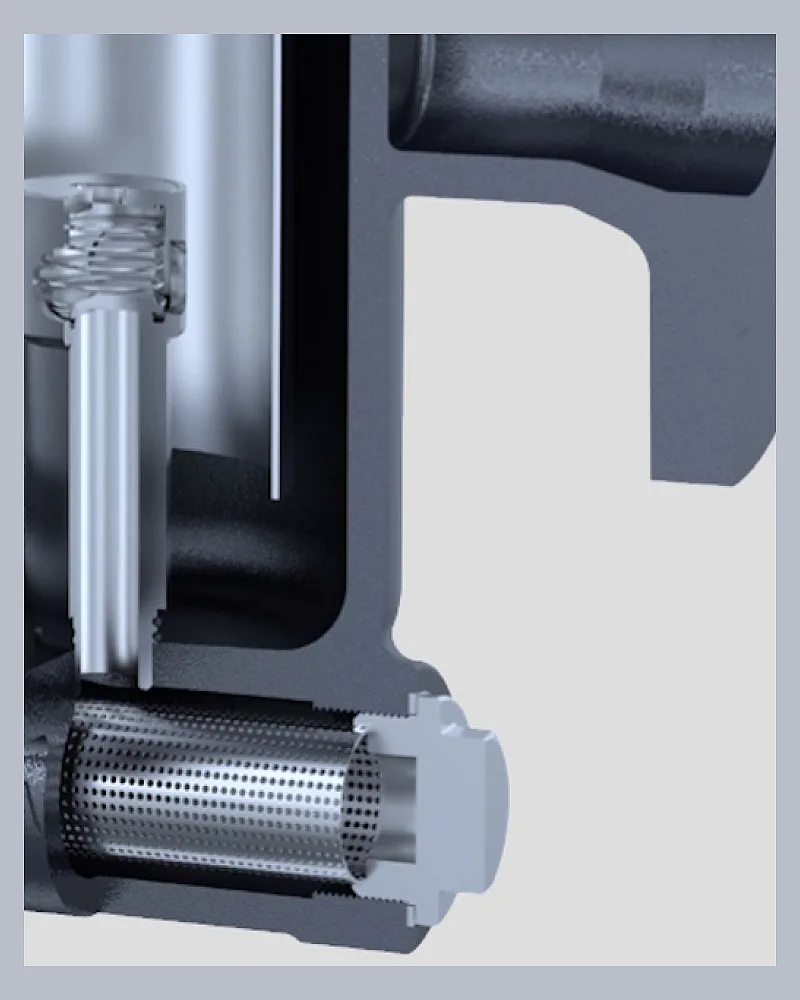

Built-In Filter: Equipped with a strainer screen to prevent clogging from dirt and scale, ensuring the reliable operation of the inverted bucket mechanism.
Unlock Unrivaled Steam System Performance with the MATICA ST100.6 Series
In the heart of Turkey's robust industrial landscape, where efficiency and reliability dictate profitability, the management of steam systems is a critical operational pillar. Achieving peak performance requires precision-engineered components designed to withstand extreme conditions. As the authorized dealer and official supplier of MATICA on the territory of Turkey, LINDER is proud to empower Turkish industry with the gold standard in condensate management: the MATICA ST100.6 Series Horizontal Inverted Bucket Steam Trap. This isn't merely a valve; it's a strategic investment in operational excellence, energy conservation, and uninterrupted productivity.
The MATICA ST100.6: Redefining Reliability in Steam Trapping
Built upon the proven, time-tested inverted bucket principle, the ST100.6 series represents a leap forward in durable and intelligent steam system design. It is meticulously crafted to provide maintenance-free, reliable drainage of condensate and air from steam mains, heaters, and process equipment, even under the most punishing pressures and temperatures common in Turkish heavy industry.
Core Technical Specifications & Capabilities
Engineered for versatility and resilience, the MATICA ST100.6 series is available to seamlessly integrate into your existing infrastructure. Key specifications include:
- Sizes: Comprehensive range from DN40 to DN80.
- Pressure Ratings: PN16/40 (Class 150/300), handling differential pressures up to 28 bar.
- Temperature Resilience: Capable of withstanding operational temperatures up to 400°C.
- Body Materials: Constructed from high-grade Carbon Steel (GS-C25) or Stainless Steel (CF8/CF8M) for corrosion resistance and longevity.
- High Discharge Capacity: Designed for high-capacity applications, with discharge rates up to 3000 kg/h.
Strategic Applications Across Turkish Industry Sectors
The MATICA ST100.6 is the optimal solution for a vast array of critical applications where steam efficiency is paramount. Its robust design makes it indispensable for:
Primary Process & Heating Equipment
- Industrial Autoclaves & Vulcanizers: Ensures precise temperature control and efficient condensate removal for consistent product quality.
- Shell & Tube Heat Exchangers: Protects heat transfer efficiency by preventing condensate logging.
- Fuel Oil Storage Tank Heaters: Maintains optimal fuel viscosity for smooth plant operation.
Critical System Infrastructure
- Main Steam Distribution Headers: Provides reliable drainage at drip legs and low points throughout the steam network.
- High-Pressure Process Units: Withstands the rigorous demands of chemical processing and power generation applications.
- Industrial Laundry & Textile Machinery: Delivers consistent steam flow for drying and pressing operations.
Five Pillars of Engineering Superiority
The MATICA ST100.6 distinguishes itself through patented design features that directly translate to lower total cost of ownership and enhanced system reliability.
1. Exceptional Water Hammer Resistance
Its lower open bucket-type design offers superior inherent resistance to destructive water hammer forces compared to conventional float traps, drastically reducing the risk of internal component failure and associated downtime.
2. Integrated Protection System
Every unit is equipped with a built-in stainless steel (AISI304/316) strainer screen. This integrated filter protects the sensitive bucket mechanism from pipeline scale, weld slag, and debris, a primary cause of failure in unprotected traps.
3. Intelligent Air Venting Function
The innovative design features an automatic air vent. A small, precision-drilled hole in the inverted bucket allows non-condensable gases to escape during start-up and operation, preventing "air binding" and ensuring rapid, uniform heating of equipment.
4. Hardened for Longevity
Critical wear components, including the valve seat and mechanism, are crafted from hardened AISI420 stainless steel. This ensures exceptional resistance to erosion and wear over millions of cycles, guaranteeing consistent shut-off and a dramatically extended service life.
5. Precision Sealing & Corrosion Resistance
The trap utilizes a high-temperature, thermally expanded graphite gasket for a leak-free seal. Coupled with an inverted bucket made from AISI304 or AISI316 stainless steel, it delivers outstanding corrosion resistance in harsh industrial environments.
LINDER: Your Authorized Technical Partner for MATICA in Turkey
Choosing LINDER as your MATICA provider means more than acquiring a premium component; it means gaining a dedicated engineering partner. We provide comprehensive technical support, from initial system audit and trap sizing to installation guidance and maintenance best practices. Our deep understanding of local industrial challenges ensures we deliver solutions that are not only certified for performance but also optimized for your specific operational context.
Elevate your plant's efficiency, reduce energy waste, and eliminate unscheduled downtime. Trust the proven robustness of the MATICA ST100.6 Series, available exclusively through Turkey's authorized dealer.
