ST100.3 series by MATICA
ST100.3 series by MATICA
Engineered for Peak Performance.

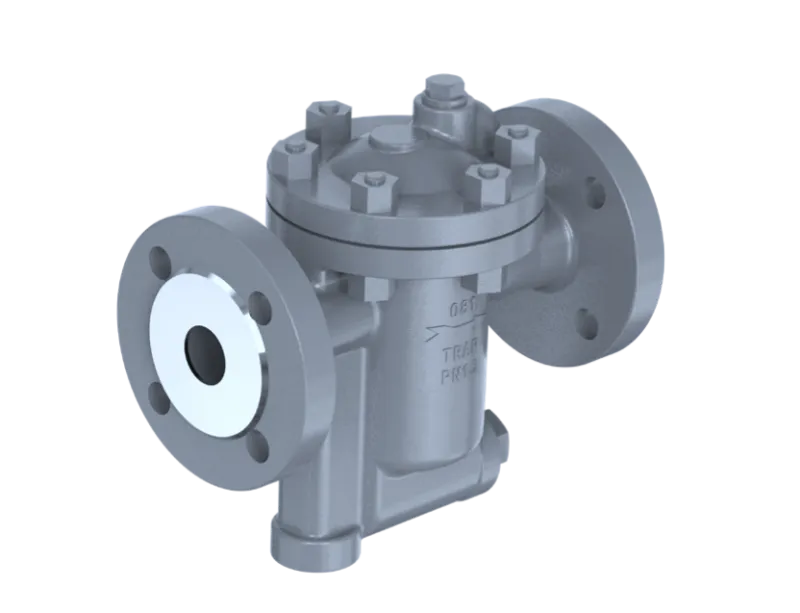

The Horizontal Inverted Bucket Steam Trap MATICA ST100.3 is the mechanical workhorse for reliable condensate drainage. It ensures efficient removal of condensate, air, and non-condensable gases from virtually any steam-using equipment, thanks to its robust inverted bucket mechanism. Available in sizes DN15 to DN25 and rated for PN16/40, it's built for durability in demanding systems. This model is offered by LINDER, your authorized dealer for MATICA steam traps.
Applications
Heat Exchangers, Heater Units, High Pressure Applications, Vulcanization Devices, Laundry Equipment, Main Fuel Tank Heaters, Steam and Condensate Lines
Characteristics ST100.3 series

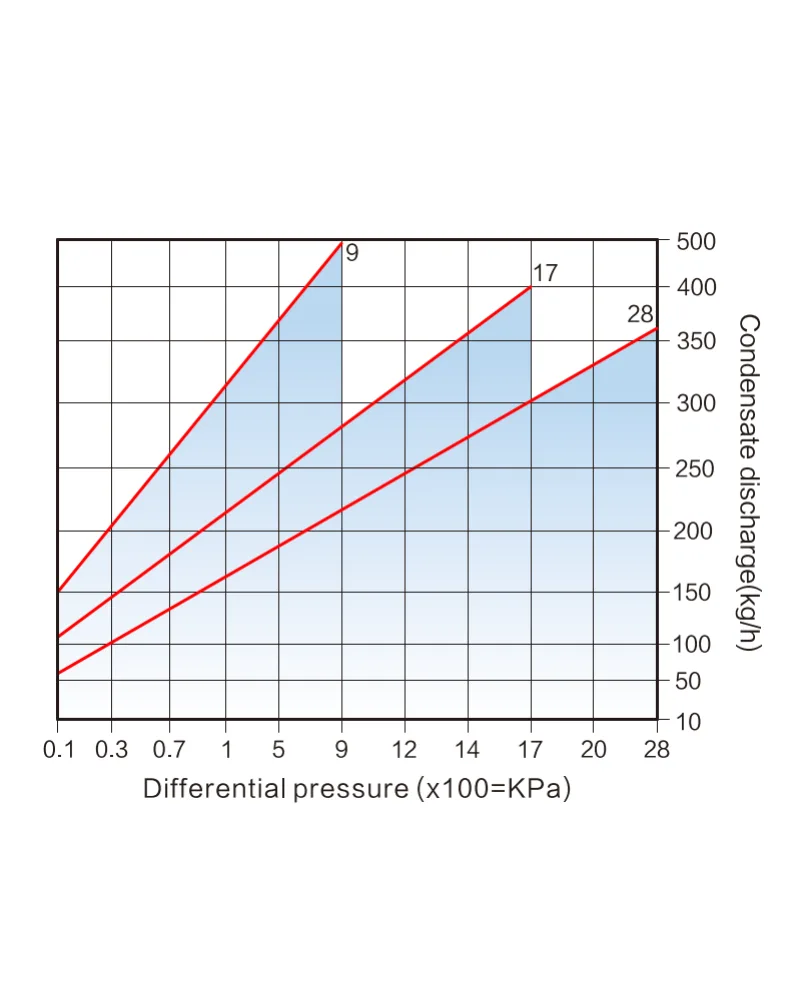

Discharge Capacities ST100.3 DN15-25. ΔPMX 9 bar, 17 bar, 28 bar.

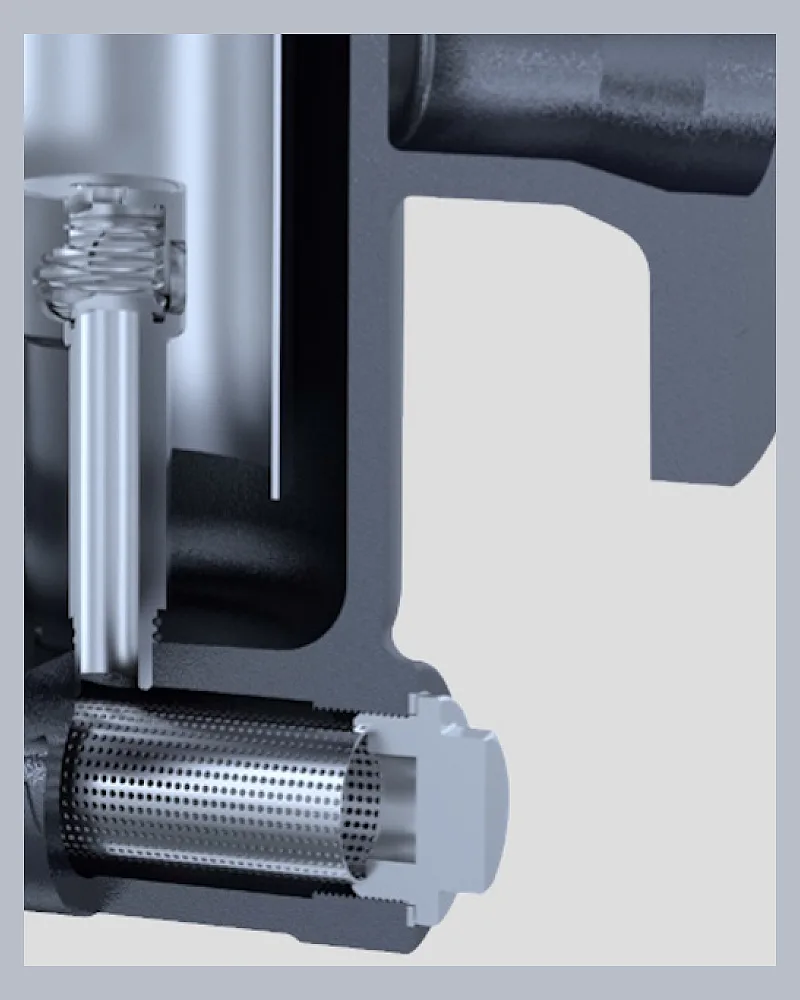

Built-In Filter: Equipped with a strainer screen to prevent clogging from dirt and scale, ensuring the reliable operation of the inverted bucket mechanism.

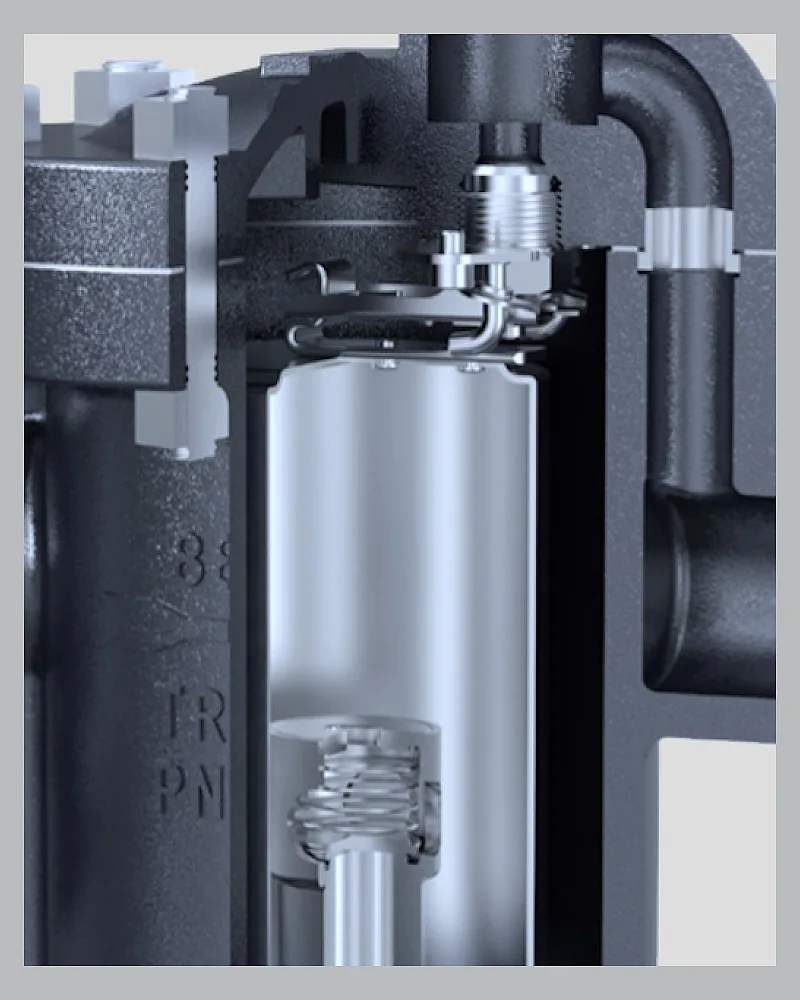

Integrated Air Vent Function: Allows for the automatic discharge of non-condensable gases (such as air) through the vent hole on the top of the bucket.

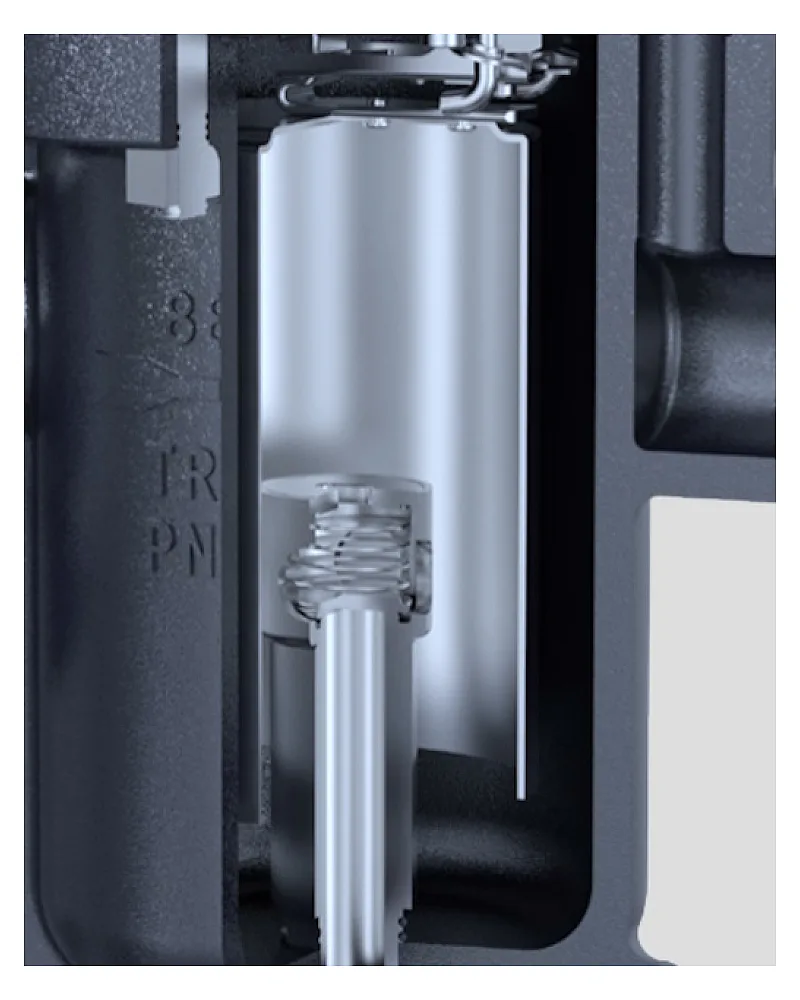

High Water Hammer Resistance: The lower open bucket-type construction provides significantly higher resistance to water hammer compared to float-type steam traps.

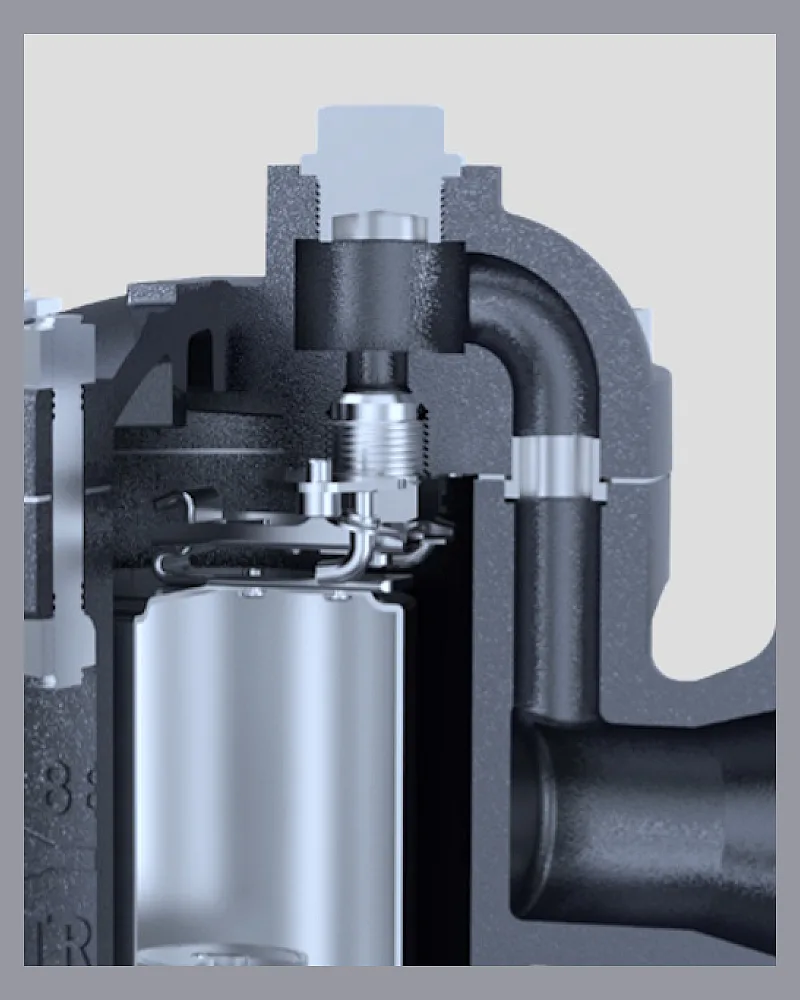

Wear-Resistant, Hardened Seals: The hardened spool and seat are designed for maximum durability and long service life.
MATICA ST100.3 Series Inverted Bucket Steam Traps: Unrivaled Reliability for Turkish Industrial Excellence
In the competitive landscape of Turkish industry, where operational uptime, energy conservation, and cost-efficiency define profitability, the integrity of your steam system is non-negotiable. Steam traps, though seemingly minor components, are the guardians of this system. Their failure cascades into energy waste, production downtime, and safety risks. For decision-makers seeking a definitive solution, the answer is engineered precision: the MATICA ST100.3 Series Horizontal Inverted Bucket Steam Trap. Available and fully supported across Turkey by the nation's official and authorized dealer, LINDER ENDÜSTRİ DIŞ TİCARET LİMİTED ŞİRKETİ.
LINDER: Your Authorized Conduit to German-Turkish Engineering Mastery
As the official dealer for MATICA in Turkey, LINDER bridges the gap between world-class German engineering and the robust demands of Turkish industrial sectors. We deliver more than premium components; we provide a partnership grounded in deep technical expertise, localized inventory, and comprehensive lifecycle support. Choosing LINDER guarantees access to genuine MATICA products, certified performance, and engineering consultations tailored to your specific plant conditions and challenges.
Deconstructing the MATICA ST100.3: A Paradigm of Mechanical Superiority
The ST100.3 Series embodies a philosophy of relentless durability. Built upon the inherently reliable inverted bucket principle, it excels in continuous, heavy-duty service where other trap designs falter. Its sole purpose is to automatically and efficiently discharge condensate, air, and CO₂ while ensuring absolutely live steam retention, thereby optimizing heat transfer and protecting your valuable equipment.
Core Design Specifications for Demanding Applications
Engineered to withstand the extreme conditions prevalent in Turkish heavy industry, the ST100.3 offers a versatile range: Nominal sizes from DN15 to DN25, pressure ratings up to PN40/Class 300, and a maximum operating temperature of 400°C. It is available in robust material configurations including forged carbon steel and stainless steel (AISI 316/CF8M), with both threaded and flanged connection options.
The Unmatched Advantages Defining the ST100.3 Series
What separates the MATICA ST100.3 from conventional alternatives is its suite of features designed to combat the most common causes of steam trap failure, directly translating to a lower total cost of ownership.
Unshakable Resistance to Water Hammer
The patented lower open bucket-type design provides exceptional innate resistance to destructive water hammer—a prevalent issue in high-pressure steam lines. This structural fortitude significantly extends service life and protects downstream piping, making it ideal for main steam headers and high-pressure applications.
Hardened Sealing Technology for Leak-Free Integrity
At the heart of its drip-tight performance is the precision-matched pair of hardened spool and seat, manufactured from wear-resistant AISI420 steel. This engineering choice ensures millions of reliable cycles, minimizes steam loss, and drastically reduces maintenance frequency even under constant cycling.
Integrated Self-Defense: The Built-In Stainless Steel Filter
Every ST100.3 is equipped with a high-grade AISI304/316 strainer. This integrated filter safeguards the trap's sensitive mechanism from clogging caused by pipe scale, welding slag, and other debris, ensuring consistent operation from day one and eliminating the need for a separate upstream strainer in many cases.
Continuous Air Venting for Optimal System Performance
Efficient system start-up and corrosion prevention require the removal of non-condensable gases. The ST100.3 features an automatic air venting function via a precisely calibrated vent hole in the bucket, allowing for the continuous purge of air and promoting faster, more uniform heating of process equipment.
Strategic Applications Across Turkey's Industrial Powerhouse
The versatility of the MATICA ST100.3 makes it the cornerstone of efficient steam management in numerous applications:
- High-Pressure Steam Mains & Distribution Lines: For reliable drip leg drainage.
- Critical Process Equipment: Including heat exchangers, reactors, vulcanizers, and industrial autoclaves.
- Steam-Heated Heavy Machinery: Found in textile plants, food processing, and chemical manufacturing.
- Hospital & Institutional Steam Systems: Where safety and reliability are paramount.
- Energy Generation & Co-Generation Plants: For auxiliary steam system drainage.
Beyond Supply: The LINDER Partnership Advantage
Procuring the ST100.3 through LINDER transforms a simple purchase into a strategic investment. Our role as the official MATICA dealer in Turkey encompasses:
- Genuine Product Guarantee: Assurance of authenticity, full manufacturer warranties, and traceability.
- Technical Consultation & Sizing: Our engineering department assists in selecting the optimal model and size for your specific pressure, temperature, and load conditions.
- Local Stock & Logistics: Reduced lead times ensured by readily available inventory within Turkey.
- On-Site Support & Training: Expertise extended to your facility for installation best practices and maintenance guidance.
Commitment to Sustainable Industrial Efficiency
By deploying the energy-efficient MATICA ST100.3, Turkish industries not only enhance productivity but also contribute to national energy conservation goals. The trap’s unwavering reliability prevents live steam loss, reducing fuel consumption and your operation's carbon footprint—a benefit both economically and environmentally profound.
Secure Your Operational Edge with MATICA and LINDER
Do not let an underperforming steam trap become the weakest link in your process chain. Upgrade to the proven durability and intelligent design of the MATICA ST100.3 Series. As your dedicated MATICA partner in Turkey, LINDER is committed to providing the engineering insight and product excellence that your operations deserve.
